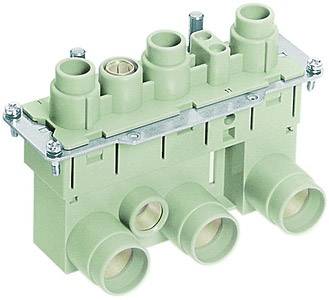

Socket insert 09380052702 HARTING Content: 1 pc(s) Socket inset
EAN:
Part number:
Item no:
Product type
Socket inset
Number of pins
5
Type
09380052702
Manufacturer part #
09380052702
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Number
Total (€ 159.66 / piece)
€ 159.66
plus VAT.
14-day return policy included
Technical specifications
- Net weight: 411 g
- Size: 24 B
- Rated current: 200 A
- Number of contacts: 3
- conductor cross-section: 35 mm² - 70 mm²
- Gender: Socket
- plug-in cycles: ≥ 500
- Tightening torque: 0.5 Nm Control contacts, 10 Nm - 70 mm², 8 Nm - 35 mm², 6 Nm PE contact, 9 Nm - 50 mm²
- Rated voltage Conductor ground: 1150 V
- Rated voltage Conductor conductor-conductor: 2000 V
- Rated surge voltage: 8 kV
- Rated surge voltage Control: 6 kV
- Contact surface: Silver plated
- Forward resistance: ≤ 0.2 mΩ
- Stripping length: 7 mm Control contacts, 22 mm, 14 mm PE contact
- Pollution degree: 3
- additional contacts: + 2 additional control contacts
- Rated current Control: 16 A
- Rated voltage Control: 400 V
- Type
09380052702
- Product type
Socket inset
- Manufacturer part #
09380052702
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
5
- Connection
Axial screw terminal
Screws
- Total no. of pins
5 + PE
- Content
1 pc(s)
- Material
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
- Leading contact (PE)
Yes
- Connector type
Socket
- UKCA
yes
