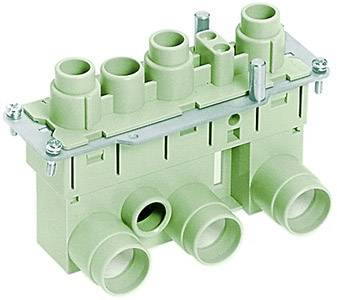

Socket insert 09380052722 HARTING Content: 1 pc(s) Socket inset
EAN:
Part number:
Item no:
Product type
Socket inset
Number of pins
3
Type
09380052722
Manufacturer part #
09380052722
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Number
Total (€ 268.07 / piece)
€ 268.07
plus VAT.
14-day return policy included
Technical specifications
- Net weight: 382.5 g
- Size: 24 B
- Rated current: 200 A
- Number of contacts: 3
- conductor cross-section: 35 mm² - 70 mm²
- Gender: Socket
- mating cycles: ≥ 500
- Tightening torque: 10 Nm - 70 mm², 8 Nm - 35 mm², 9 Nm - 50 mm²
- Rated voltage conductor-earth: 1150 V
- Rated voltage conductor-conductor: 2000 V
- Rated surge voltage: 8 kV
- Contact surface: Silver-plated
- contact resistance: ≤ 0.2 mΩ
- Wire stripping length: 22 mm
- Pollution degree: 3
- Type
09380052722
- Product type
Socket inset
- Manufacturer part #
09380052722
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
3
- Connection
Axial screw terminal
- Total no. of pins
3
- Content
1 pc(s)
- Material
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
- Connector type
Socket
- UKCA
yes
