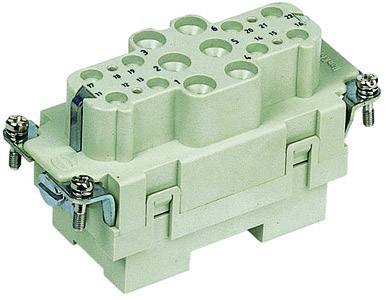

Socket insert 09380182701 HARTING Content: 1 pc(s) Socket inset
EAN:
Part number:
Item no:
Product type
Socket inset
Number of pins
18
Type
09380182701
Manufacturer part #
09380182701
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Number
Total (€ 163.86 / piece)
€ 163.86
plus VAT.
14-day return policy included
Technical specifications
- Net weight: 151.2 g
- Size: 16 B
- Rated current: 40 A
- Number of contacts: 6
- Rated voltage: 690 V
- Conductor cross-section: 0.2 mm² - 2.5 mm² Control, 2.5 mm² - 8 mm²
- Gender: Socket
- Plug-in cycles: ≥ 500
- Tightening torque: 2 Nm - 6 mm², 0.5 Nm control, 1.5 Nm - 2.5 mm², 1.5 Nm - 4 mm²
- Rated surge voltage: 8 kV
- Rated surge voltage control: 4 kV
- Contact surface: Silver-plated
- Forward resistance: ≤ 0.5 mΩ
- Wire stripping length: 8 mm - 9 mm 6 mm², 7.5 mm control, 5 mm - 6 mm 2.5 mm², 5 mm - 6 mm 4 mm²
- Pollution degree: 3
- wire outer diameters: ≤6.1 mm
- additional contacts: + 12 additional control contacts
- Rated current Control: 10 A.
- Type
09380182701
- Product type
Socket inset
- Manufacturer part #
09380182701
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
18
- Connection
Axial screw terminal
Screws
- Total no. of pins
18 + PE
- Content
1 pc(s)
- Material
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
- Leading contact (PE)
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1989392 Socket insert 09380182701 HARTING Content: 1 pc(s) Socket inset
User & Safety Instructions
User & Safety Instructions 1989392 Socket insert 09380182701 HARTING Content: 1 pc(s) Socket inset
