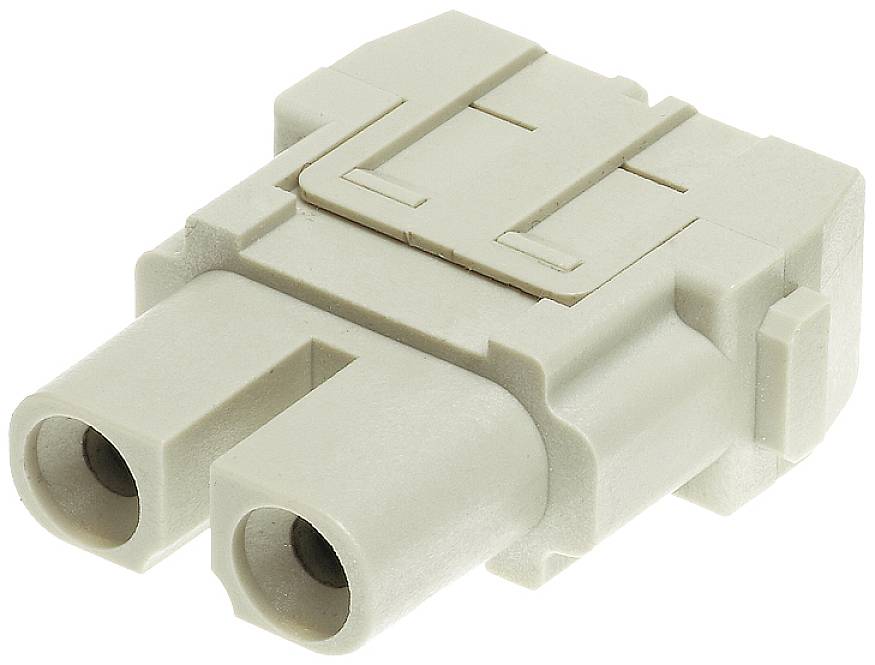

Socket module 09140022702 HARTING Content: 1 pc(s) Socket module
EAN:
Part number:
Item no:
Product type
Socket module
Number of pins
2
Type
09140022702
Manufacturer part #
09140022702
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Number
Total (€ 15.96 / piece)
€ 23.52
-32 %
€ 15.96
plus VAT.
14-day return policy included
Highlights & Details
Socket module
Our service for you
Technical specifications
- Net weight: 24.2 g
- Rated current: 40 A
- Number of contacts: 2
- Rated voltage: 1000 V
- Conductor cross-section: 6 mm² - 10 mm²
- Gender: Socket
- Plug-in cycles: ≥ 500
- Tightening torque: 2 Nm - 6 mm², 2 Nm - 10 mm²
- Rated surge voltage: 8 kV
- Contact surface: Silver-plated
- Forward resistance: ≤ 0.3 mΩ
- Stripping length: 8 mm 6 mm², 11 mm 10 mm²
- Pollution degree: 3
- Type
09140022702
- Product type
Socket module
- Manufacturer part #
09140022702
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
2
- Connection
Axial screw terminal
- Total no. of pins
2
- Content
1 pc(s)
- Material
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1989668 Socket module 09140022702 HARTING Content: 1 pc(s) Socket module
User & Safety Instructions
User & Safety Instructions 1989668 Socket module 09140022702 HARTING Content: 1 pc(s) Socket module
