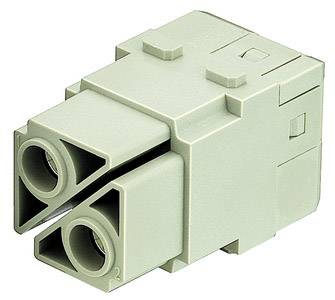

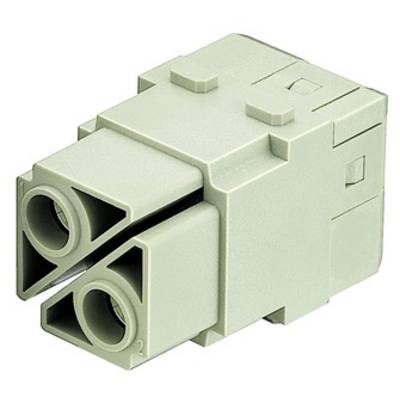

Socket module 09140022750 HARTING Content: 1 pc(s) Socket module
EAN:
Part number:
Item no:
Product type
Socket module
Number of pins
2
Type
09140022750
Manufacturer part #
09140022750
Factory colour
Pebble grey (RAL 7032)
Datasheet (PDF)
Number
Total (€ 63.86 / piece)
€ 63.86
plus VAT.
Technical specifications
- Net weight: 71.14 g
- Rated current: 100 A
- Number of contacts: 2
- Rated voltage: 1000 V
- Wire cross-section: 38 mm²
- Gender: Socket
- plug-in cycles: ≥ 500
- Tightening torque: 8 Nm
- Rated surge voltage: 8 kV
- Contact surface: Silver-plated
- Forward resistance: ≤ 0.3 mΩ
- Stripping length: 12 mm - 14 mm
- Pollution degree: 3
- Type
09140022750
- Product type
Socket module
- Manufacturer part #
09140022750
- Factory colour
Pebble grey (RAL 7032)
- Number of pins
2
- Connection
Axial screw terminal
- Total no. of pins
2
- Content
1 pc(s)
- Material
Polycarbonate (PC)
Copper alloy
- Max. temperature
+125 °C
- UKCA
yes
