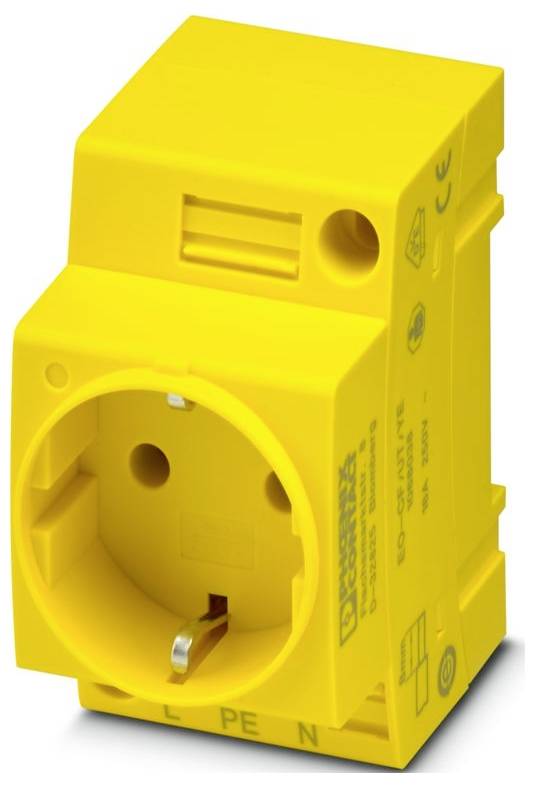

Socket Phoenix Contact EO-CF/UT/YE Yellow 1.8 W (L x W x H) 62.1 x 45 x 75 mm
EAN:
Part number:
Item no:
Product type
Socket
Power
1.8 W
IP rating
IP20
Type
EO-CF/UT/YE
Factory colour
Yellow
Datasheet (PDF)
Technical specifications
- Connection type: screw terminals.
- M3 screw thread
- Tightening torque: 0.5 ... 0.6 Nm
- Conductor cross-section flexible: 0.25 mm² ... 2.5 mm².
- Conductor cross-section rigid: 0.2 mm² ... 4 mm².
- Wire cross-section AWG: 24 ... 12 (converted to IEC)
- Width 45 mm
- Height: 75 mm
- Depth: 62.1 mm
- Colour: Yellow (RAL 1018)
- Flammability class according to UL 94: V0
- Ambient conditions: Environmental conditions
- Protection class: IP20
- Ambient temperature (operation): -45 °C ... 70 °C (max. Operating temperature range including self-heating, see derating curve)
- Ambient temperature (storage/transport): -45 °C ... 70 °C
- Standards/regulations: VDE 0620-1
- Mounting type: For mounting on support rails in service interface or direct mounting
- Insulation material PA
- Stripped length: 8 mm
- Nominal voltage 250 V AC (50 Hz)
- Note on operation: This outlet is not designed for applications with high load (HL) such as chargers for electric vehicles and large radiators.
- Maximum power loss at rated conditions 1.8 W.
- TEST SPECIFICATION: DIN EN 50155 (VDE 0115-200):2022-06
- Result: Test passed
- Static insulation in cold temperatures: -60 °C.
- Thermal index insulation (DIN EN 60216-1 (VDE 0304-21)) 130 °C
- Fire protection for rail vehicles (DIN EN 45545-2) R22: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R23: HL 1 - HL 3
- Fire protection for rail vehicles (DIN EN 45545-2) R24: HL 1 - HL 3
- Standards: Standards
- Relative insulating material Temperature Index (Electr., UL 746 B): 130 °C
- Nominal current: 16 A
- Frequency: F1 = 5 Hz to f2 = 250 Hz
- Permissible humidity (storage/transport): 30 % ... 70 %
- Swing / Broadband noise: Swing / Broadband noise
- Spectrum: Category 2 durability test, mounted on the bogie
- ASD level 6.12 (m/s²)²/Hz
- Acceleration: 30g
- Test duration of each axle 5 h
- Test directions: X, Y and Z axis (pos. and neg.)
- Shocks: Shocks
- Shock: Half-sine
- Shock duration 18 ms
- Number of shocks per direction: 3
- Status display: No.
- Fire protection for rail vehicles (DIN EN 45545-2) R26: HL 1 - HL 3
- Heat dissipation calorimetric NFPA 130 (ASTM E 1354): 28 MJ/kg
- Surfaces Flammability NFPA 130 (ASTM E 162): Passed
- Specific optical flue gas density NFPA 130 (ASTM E 662): Passed
- Exhaust gas toxicity NFPA 130 (SMP 800C): Passed
- Country code: Germany
- Mandrel: A3; B3
- Conductor cross-section flexible [AWG]: 24 ... 14 (converted to IEC)
- Conductor cross-section flexible (wire-end sleeve without plastic sleeve): 0.25 mm² ... 2.5 mm².
- Conductor cross-section flexible (wire-end sleeve with plastic sleeve): 0.25 mm² ... 2.5 mm².
- Conductor cross-section flexible (2 conductors of the same cross-section with TWIN cable end sleeve with plastic sleeve): 0.2 mm² ... 4 mm².
- Depth on NS 35/7.5: 63 mm
- Depth on NS 35/15: 70.5 mm
- Drill hole diameter 4.4 mm
- Material contact: CuZn 38
- Plug type: Plug face type CF
- Product type
Socket
- Type
EO-CF/UT/YE
1.8 W
- Factory colour
Yellow
- Material
PA
IP20
- Protection class
IP20
- Length
62.1 mm
- Width
45 mm
- Height
75 mm
- Dim
(L x W x H) 62.1 x 45 x 75 mm
- Connection type
Screw connector
- Rated voltage
250 V AC
- Test current
16 A
- Core cross section (max.)
4 mm²
- Core cross section (min.)
0.2 mm²
- Mounting type
DIN rail
Permanent fixing
- Recess depth
62.1 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3562466 Socket Phoenix Contact EO-CF/UT/YE Yellow 1.8 W (L x W x H) 62.1 x 45 x 75 mm
User & Safety Instructions
User & Safety Instructions 3562466 Socket Phoenix Contact EO-CF/UT/YE Yellow 1.8 W (L x W x H) 62.1 x 45 x 75 mm
Description
Socket, plug face type CF, connection type: Screw connection, color: Yellow, nominal voltage: 250 V AC (50 Hz), rated current: 16 A, for mounting on rails in service interface or direct mounting, standards/guidelines: VDE 0620-1, country code: Germany
