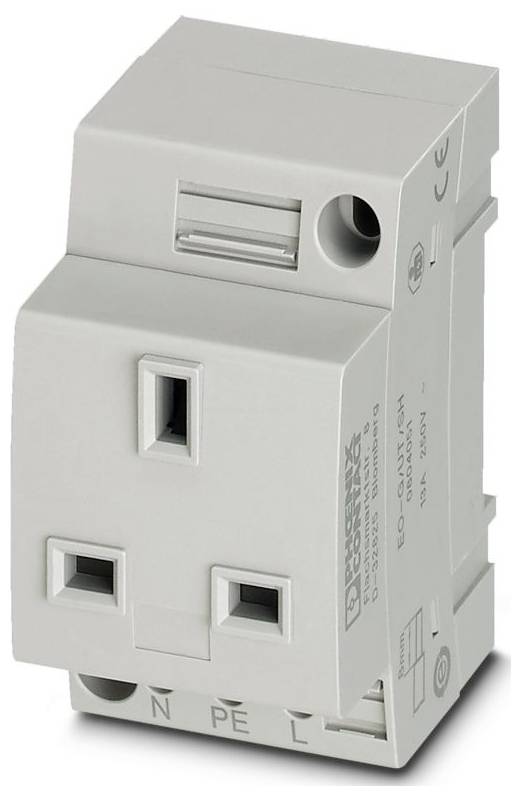

Socket Phoenix Contact EO-G/UT/SH Grey (L x W x H) 60 x 45 x 75 mm
EAN:
Part number:
Item no:
Product type
Socket
IP rating
IP20
Type
EO-G/UT/SH
Factory colour
Grey
Length
60 mm
Datasheet (PDF)
Technical specifications
- Number of sockets: 1
- Width in division units: 2.5
- With increased protection against accidental contact: No.
- With hinged cover: No.
- With indicator light: No.
- Voltage type AC
- Product type
Socket
- Type
EO-G/UT/SH
- Factory colour
Grey
IP20
- Length
60 mm
- Width
45 mm
- Height
75 mm
- Dim
(L x W x H) 60 x 45 x 75 mm
- Connection type
Screw connector
- Rated voltage
250 V AC
- Test current
13 A
- Core cross section (max.)
4 mm²
- Core cross section (min.)
0.2 mm²
- Mounting type
DIN rail
Permanent fixing
- Recess depth
60 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3559082 Socket Phoenix Contact EO-G/UT/SH Grey (L x W x H) 60 x 45 x 75 mm
User & Safety Instructions
User & Safety Instructions 3559082 Socket Phoenix Contact EO-G/UT/SH Grey (L x W x H) 60 x 45 x 75 mm
Description
Socket, with extended protection against contact / shutter, mating face type G, connection type: Screw connection, color: Grey, nominal voltage: 250 V AC (50 Hz), nominal current: 13 A, for mounting on mounting rail in service interface or direct mounting, standards/regulations: BS 1363-2, country code: Great Britain
