Buy Socket TC-13543684 TC-E13T-FH2-PRF TRU COMPONENTS Content: 1 pc(s)

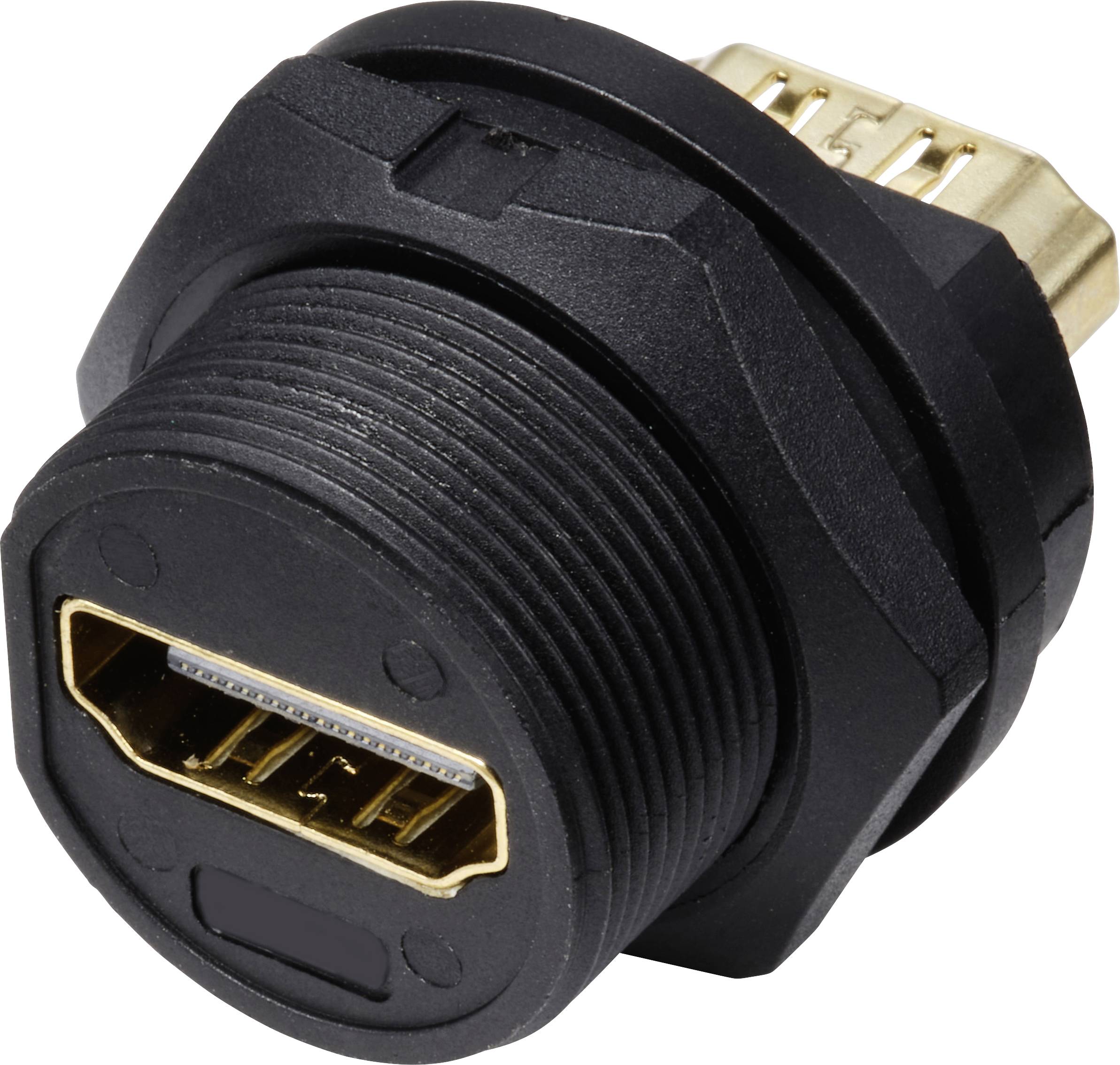

A black plastic-cased HDMI socket connector. Shows the internal pins. Suitable for wired audiovisual connections.

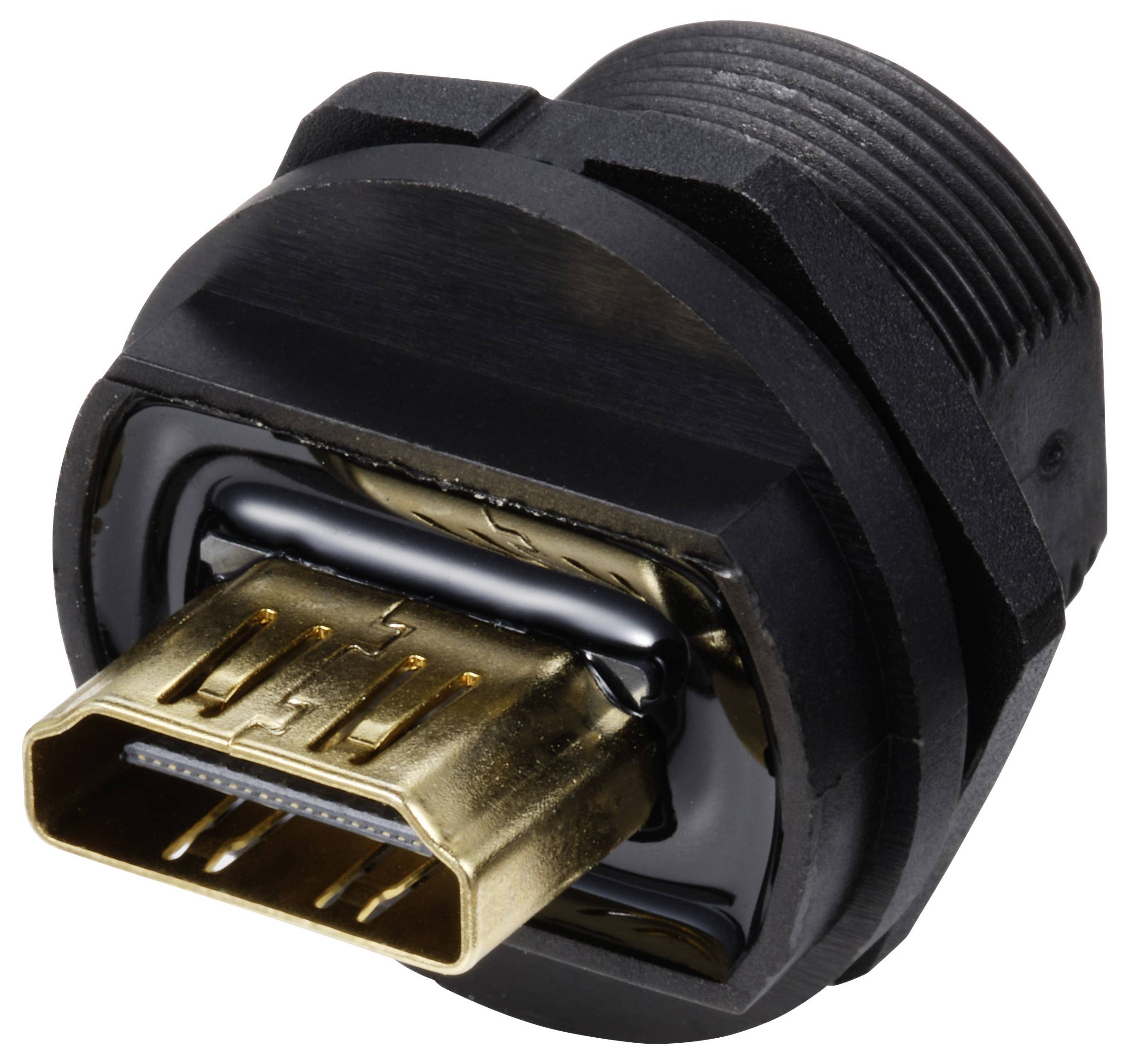

A black-cased HDMI plug, suitable for connecting audio and video devices.

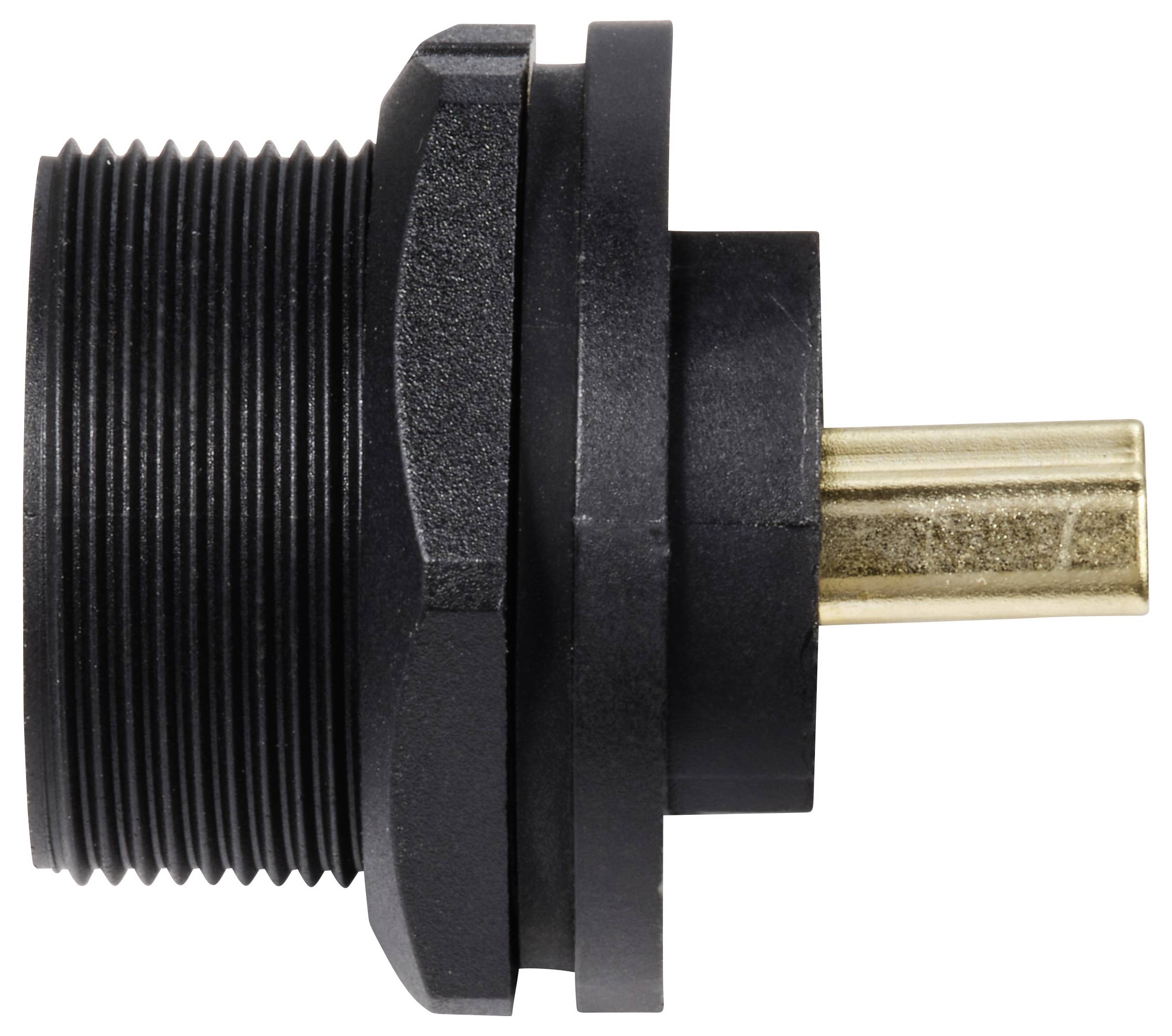

A black, cylindrical plastic plug with a golden metal tip, likely an electrical or mechanical adapter.

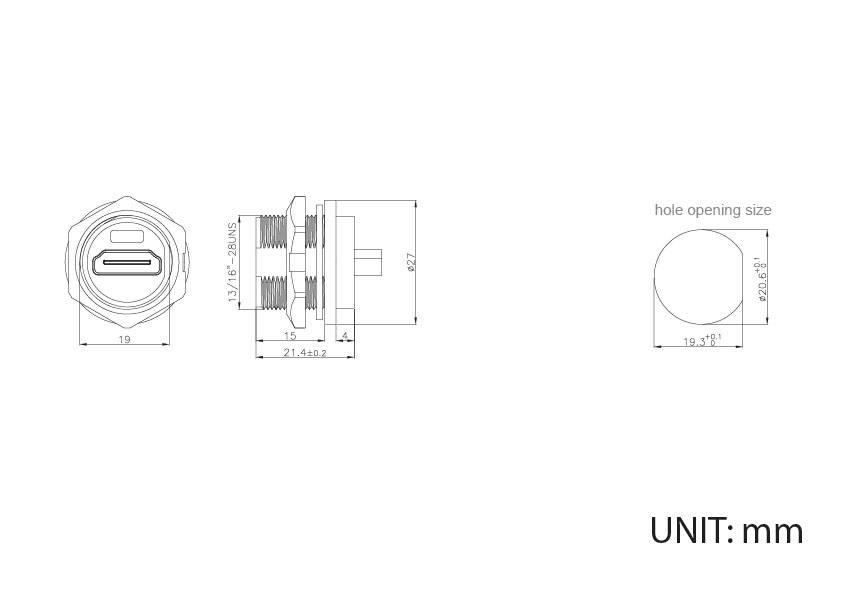

Technical drawing of a circular connector with dimensions: Diameter 19 mm, Length 21.6 mm. Hole aperture 20.6 mm. Unit in mm.

1/4

Connector type

Socket

Type

TC-E13T-FH2-PRF

Pins

Connection

PCB

Type A

HDMI socket

Datasheet (PDF)

Fast track dispatch on Thu, 1 Oct

197 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 7.13 / piece)

€ 7.13

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

HDMI Female to Female back mount receptacle (Threaded)

Our service for you

Technical specifications

Type: TC-E13T-FH2-PRF

Connector type: Socket

Pins: 19

Connection: PCB

Type A: HDMI socket

Type B: HDMI socket

Mounting hole diameter: 20.6 mm

Case material: PA

Manufacturer part #: TC-13543684

Factory colour: Black

Industrial packaging: Yes

Content: 1 pc(s)

Contact material: Copper alloy

Material: Plastic
Copper
Steel
PVC

Nominal voltage (details): 30 V

Nominal current (details): 0.5 A

Number of pins: 19

Length: 30.4 mm

RoHS-compliant: Yes

: IP67

Max. temperature: 105 °C

Min. temperature: -40 °C

Plastic free packaging: Plastic-free packaging
