Buy Sol Expert 93325 HGV headlights board 3.7 - 4.8 V (L x W) 7.25 mm x 3 mm

Two green printed circuit boards with electronic components, including capacitors and resistors, are depicted. They are arranged identically.

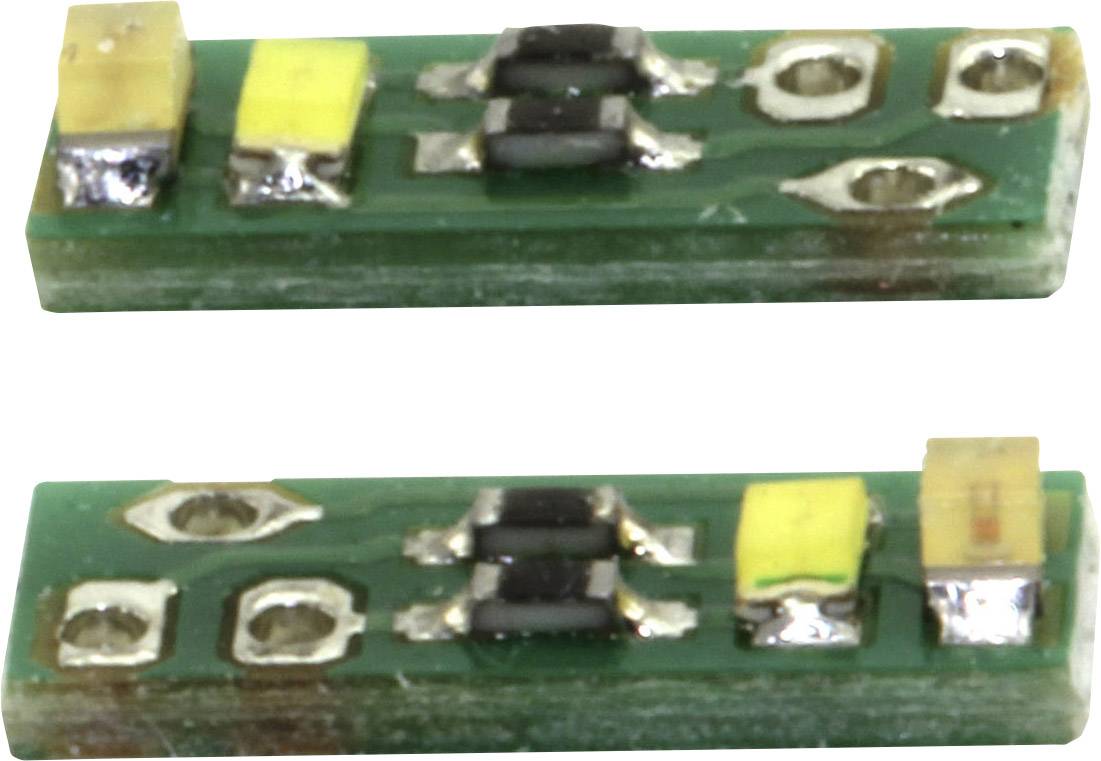

Two small electronic components on a green circuit board. They each contain two yellow rectangles and metallic contact points.

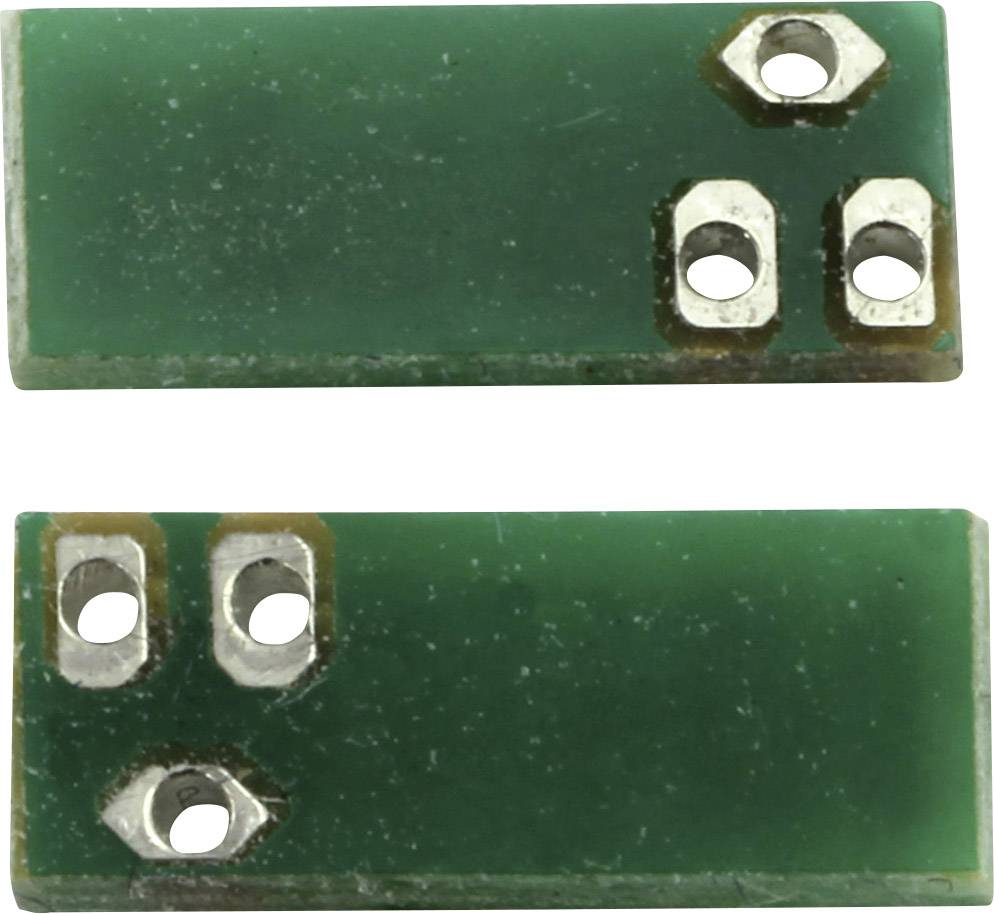

Two green rectangular circuit boards with silver contact points, lying on a white surface.

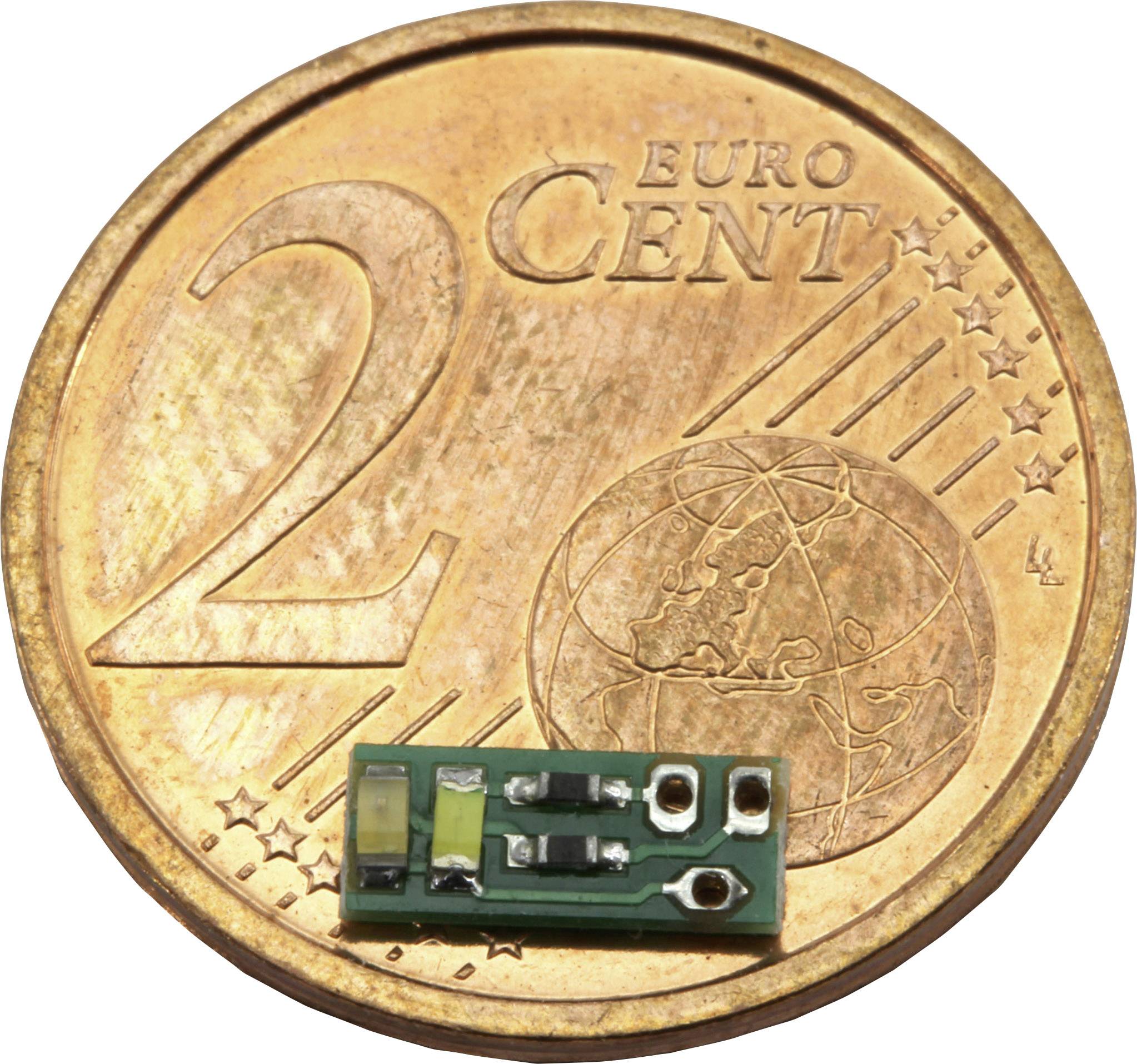

A tiny, rectangular microchip rests on a 2-cent coin. The chip is smaller than the diameter of the coin.

1/4

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

2 Set(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Set(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Set(s)

Total (€ 9.24 / piece)

€ 9.24

plus VAT.

Only 2 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Equipped light carrier for truck front lighting

Model Car Tuning

Technical specifications

Size: H0

Product type: HGV headlights board

Voltage (min.): 3.7 V

Voltage (max.): 4.8 V

Length: 7.25 mm

Width: 3 mm

Dim: (L x W) 7.25 mm x 3 mm

Age category: 15 years and over

Documents & Downloads

Datasheet

Datasheet 1676725 Sol Expert 93325 HGV headlights board 3.7 - 4.8 V (L x W) 7.25 mm x 3 mm

User & Safety Instructions

User & Safety Instructions 1676725 Sol Expert 93325 HGV headlights board 3.7 - 4.8 V (L x W) 7.25 mm x 3 mm

Description

On these light sources (Set of 2) are already all the resistors and diodes soldered to the front lighting of a 1:87 LWK File's are needed. On each board is a white LED for lighting and a yellow for the indicator is mounted. The light carrier is designed for 3.7 - 4.8 volt.

In order to enable a comfortable soldering the necessary cables, we have larger solder pads integrated in the board. This allows for easy wiring the circuit boards. The mounting on the vehicle by the smooth rear side of the Board easier. A separate vehicle lighting is now nothing stands in the way! The boards have a size of each 3 x 7.25 mm. Already in the factory, the brightness of the LED the original.

The following currents are preset:
White LED: 0.8 mA
Yellow LED: 2.5 mA
