Solenoid Connectors SAC-3P-MS/B-1L-Z SCO 1458541 Phoenix Contact Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Square connector
Type
B standard
IP rating
IP65 (when installed)
Number of pins
3
Datasheet (PDF)
Technical specifications
- Operating temperature range: -25 to 85 °C.
- Flammability class of insulation material according to UL94: HB
- Min Number of mating cycles: 50
- With PE connection: No.
- With status indicator: Yes
- Pollution level 3
- Material of the contact coating: Tin
- Packaging type
Piece
- Product type
Square connector
- Type
B standard
IP65 (when installed)
- Number of pins
3
- Display
LED
- Total no. of pins
3
- Manufacturer part #
1458541
- Content
1 pc(s)
- Circuit layout description
incl. diode
- Max. temperature
85 °C
- Min. temperature
-25 °C
- Type
SAC-3P-MS/B-1L-Z SCO
- Features
LED
- Leading contact (PE)
No
- Test current
4 A
- Rated voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3453261 Solenoid Connectors SAC-3P-MS/B-1L-Z SCO 1458541 Phoenix Contact Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3453261 Solenoid Connectors SAC-3P-MS/B-1L-Z SCO 1458541 Phoenix Contact Content: 1 pc(s)
Description

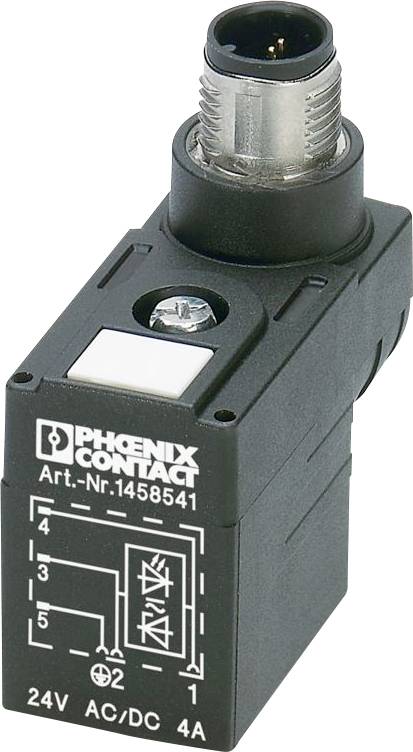

3-pin square connector, M12 straight plug, coding: A, on valve B (10 mm), with 1 LED, circuit: Z-diode
