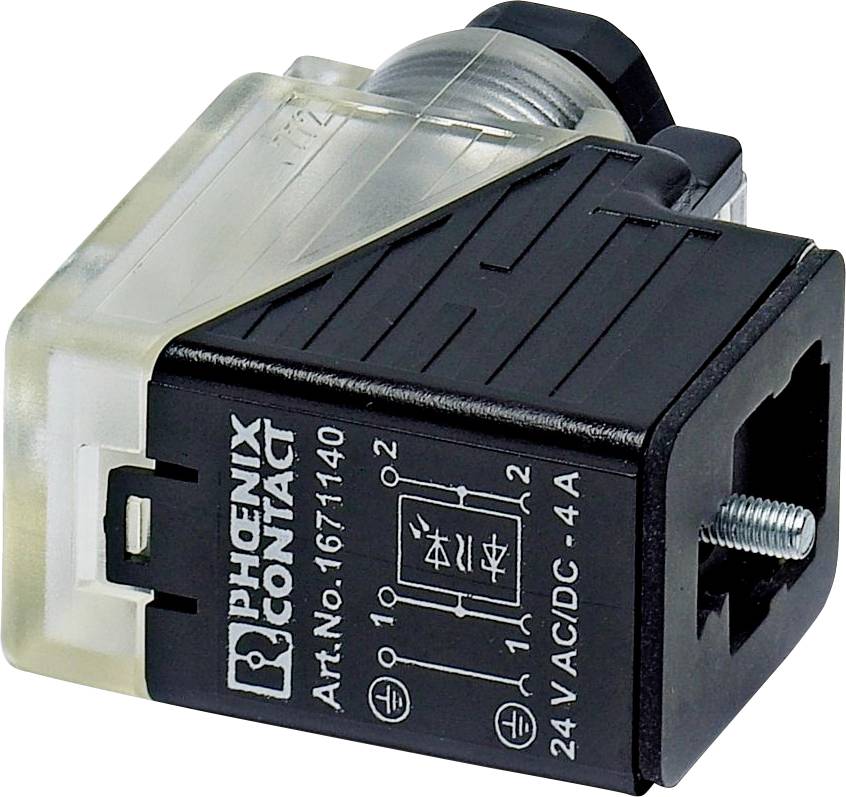

Solenoid Connectors SACC-V-3CON-PG9/BI-1L-S 1671140 Phoenix Contact Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Square connector
Type
BI standard
IP rating
IP65 (when installed)
Number of pins
3
Technical specifications
- Suitable for cable cross-sections of 0.34–2.5 mm²
- Operating temperature
- Flammability class of insulation material according to UL94: HB
- For cable outside diameter 6-8 mm
- Min Number of mating cycles: 50
- With PE connection: No.
- With status indicator: Yes
- Pollution level 3
- Packaging type
Piece
- Product type
Square connector
- Type
BI standard
IP65 (when installed)
- Number of pins
3
- Total no. of pins
3
- Manufacturer part #
1671140
- Content
1 pc(s)
- max. cross section
2.5 mm²
- Min. cross section
0.34 mm²
- Connector type
Cable gland
- Max. temperature
60 °C
- Min. temperature
-25 °C
- Type
SACC-V-3CON-PG9/BI-1L-S
- Fastening type
PG9
- Leading contact (PE)
No
- Test current
4 A
- Rated voltage
24 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3522304 Solenoid Connectors SACC-V-3CON-PG9/BI-1L-S 1671140 Phoenix Contact Content: 1 pc(s)
Description
Square connector, universal, 3-pin, BI (11 mm) valve connector, screw connection, Cable fitting PG9, cable outer diameter 6 mm ... 8 mm
