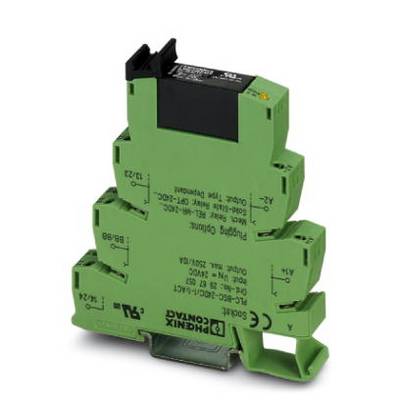

Solid-state relay module PLC-OSC- 24DC/230AC/ 2/ACT 2982760 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Package
Product type
SSR
Control voltage (min.)
24 V DC
Control voltage (max.)
24 V DC
Switching voltage (max.)
253 V AC
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 31.85 / piece)
€ 318.49
plus VAT.
14-day return policy included
Highlights & Details
Solid-state relay module PLC-OSC- 24DC/230AC/ 2/ACT
- Industrial packaging, pack of 10
Technical specifications
- Packaging type
Package
- Product type
SSR
- Type
PLC-OSC- 24DC/230AC/ 2/ACT
- Connection
Screws
- Control voltage (min.)
24 V DC
- Control voltage (max.)
24 V DC
- Control voltage range
24 - 24 V DC
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
253 V AC
- Current load (max.)
2 A
- Output voltage (max.)
253 V AC
- Max. output current
2 A
- Min. temperature
-25 °C
- Max. temperature
+60 °C
- Width
14 mm
- Height
80 mm
- Depth
94 mm
- Industrial packaging
Yes
- Permanent current (max.)
2 A
- Content
10 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 709904 Solid-state relay module PLC-OSC- 24DC/230AC/ 2/ACT 2982760 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 709904 Solid-state relay module PLC-OSC- 24DC/230AC/ 2/ACT 2982760 Phoenix Contact
Description
PLC-INTERFACE, comprising PLC-BSC...ACT basic terminal block with screw connection and plug-in power solid-state relay, for mounting on NS 35/7.5 DIN rail
