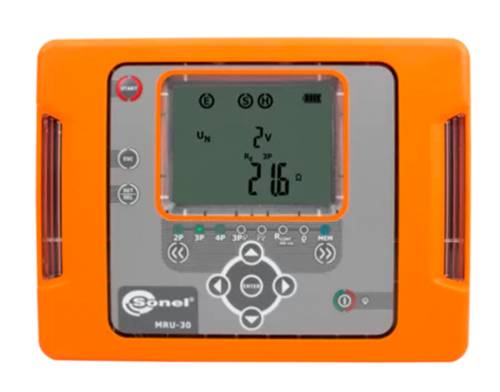

Sonel Erdungswiderstandsmessgerät MRU-30 Earth ground meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Universal-earthing resistance measuring device
- 3-pole and 4-wire method – earthing measurement with auxiliary probes
- 3-pole method with pliers - measurement of multiple earthing
- Two-pliers method – ground measurement when auxiliary probes cannot be used
- Specific earth resistance – if method
- Resistance of earth and potential equalization connections with ≥200 mA test current. Automatic zero of the test leads – meets the requirements of EN 61557-4
Technical specifications
- Product type
Earth ground meter
- Test voltage
Optionally 25 V or 50 V
- Interfaces
USB
- Reading range - voltage
0 V to 100 V
- Continuity testing
Resistance measurement of earth and potential equalization connections with a test current of ≥ 200 mA according to EN 61557-4.
- Reading range - resistance
Ground resistance 0.00 Ω to 9999 Ω
Specific earth resistance: 0.00 Ω to 999 Ω
IP65
- Power supply (details)
Integrated rechargeable battery; rechargeable via power supply (230 V), power bank or 12 V car cigarette lighter.
- Dim
(L x W x H) 73 x 200 x 150 mm
- Weight
1.14 kg
- Display
LCD
- Weight, information
approx.
- Content
1 Set
- Reading category
CAT III 300 V
- Measuring type
Ground spike
- Width
200 mm
- Height
150 mm
- Length
73 mm
- Type
Erdungswiderstandsmessgerät MRU-30
Documents & Downloads
Datasheet
Datasheet 3763598 Sonel Erdungswiderstandsmessgerät MRU-30 Earth ground meter
User & Safety Instructions
User & Safety Instructions 3763598 Sonel Erdungswiderstandsmessgerät MRU-30 Earth ground meter
Description
Fields of application
The ground resistance measuring device MRU-30 is used for measuring single and multiple earthing with the use of auxiliary electrodes and/or pliers. It is also possible to measure the specific ground resistance (WennerMethod) and check the continuity of equipotential connections and protective conductors.
Properties
The measuring device enables the conduct of earthing tests mainly with the technical methods. Thanks to its high immunity it can also deal with interference currents under difficult conditions in circuits
system. The simple and intuitive operation simplifies and speeds up the measurement process. The measuring device has an internal memory. The measurement results can be transferred to a computer for data processing and the creation of documentation.
Robust and practical housing
The ergonomic, small and practical casing enables a comfortable and simple operation. The measuring device is resistant to harsh weather conditions. The protection class IP65 guarantees dust resistance and resistance to water jets from all sides. The rechargeable battery is permanently installed and can be charged using a power bank or the cigarette lighter in the car.
