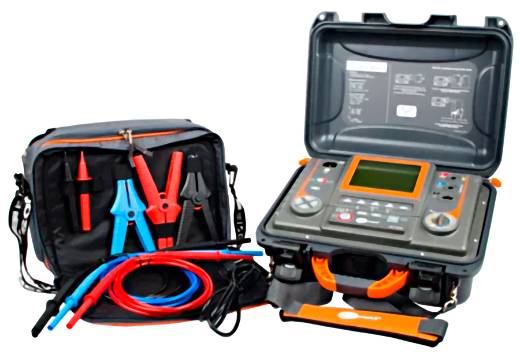

Sonel MIC-5010 Insulation tester 5000 V 15 TΩ
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Insulation tester MIC-5010
- Test voltages can be selected in the range of 50…5000 V, 50…1000 V in 10 V steps, 1…5 kV in 25 V steps
- Continuous display of the measured insulation resistance or leakage current
- Automatic discharge of the tested device after the insulation measurement has been completed
- Acoustic signal in 5-second intervals for recording the time characteristics
- Adjustable test times - up to 99'59''
- Test times T1, T2 and T3 for measuring one or two absorption coefficients in the range of 1…600 s.
- Polarisation index (PI), absorption coefficient AB1, AB2, dielectric absorption ratio (DAR)
- Display of the currently applied test voltage during measurement
- 1.2 mA, 3 mA or 6 mA testing current
- Insulation measurement possible with the help of 2 or 3-wire method
- Measurement can be done with measuring leads of up to 20 m.
- Protection against live objects
- Measure capacity during insulation test RISO
- Insulation test with stage voltage (SV)
- Dielectric Discharge (DD)
- Digital filter function for measurements in surroundings with great interferences
Technical specifications
- Product type
Insulation tester
- Test voltage
5000 V
- Reading type
Insulation resistance
Voltage
Manufacturer's standards (no certificate)
- Interfaces
USB
Bluetooth®
IP67
- Power supply (details)
LiFePO4 13.2 V, 5.0 Ah. Battery
- Dim
(L x W x H) 172 x 390 x 308 mm
- Weight
6 kg
- Display type
LED segments
- Max. frequency
60 Hz
- Frequency range
60 Hz (max)
- Insulation resistance (max.)
15 TΩ
- Voltage reading range (max.)
600 V
- Reading category
CAT IV 600 V
CAT III 1000 V
- Width
390 mm
- Height
308 mm
- Length
172 mm
Documents & Downloads
Datasheet
Datasheet 3763607 Sonel MIC-5010 Insulation tester 5000 V 15 TΩ
User & Safety Instructions
User & Safety Instructions 3763607 Sonel MIC-5010 Insulation tester 5000 V 15 TΩ
Description
Insulation resistance measurement in premium format
Additional functions:
• MIC-5010 | Continuity test of protective conductors and equipotential connections according to EN 61557-4 with test current ü.200 mA
• MIC-5010 | Adjustable limits for measured resistance RISO
• MIC-5010 | Adjustable limits for measured resistance RCONT
• Digital filter function for measurements in the environment with high interference (10 s, 30 s, 60 s)
• Measure capacity during RISO measurement
• Measurement of leakage currents during the insulation test
• DC and AC voltage measurement of 0…600 V
• 990 memory cells (11880 measurements), possibility of wireless data transfer to PC (Bluetooth) or via USB connection
• Supply by mains voltage or battery
• Display lighting
• Keyboard illumination
• The test device complies with the requirements of EN 61557
This text is machine translated.
