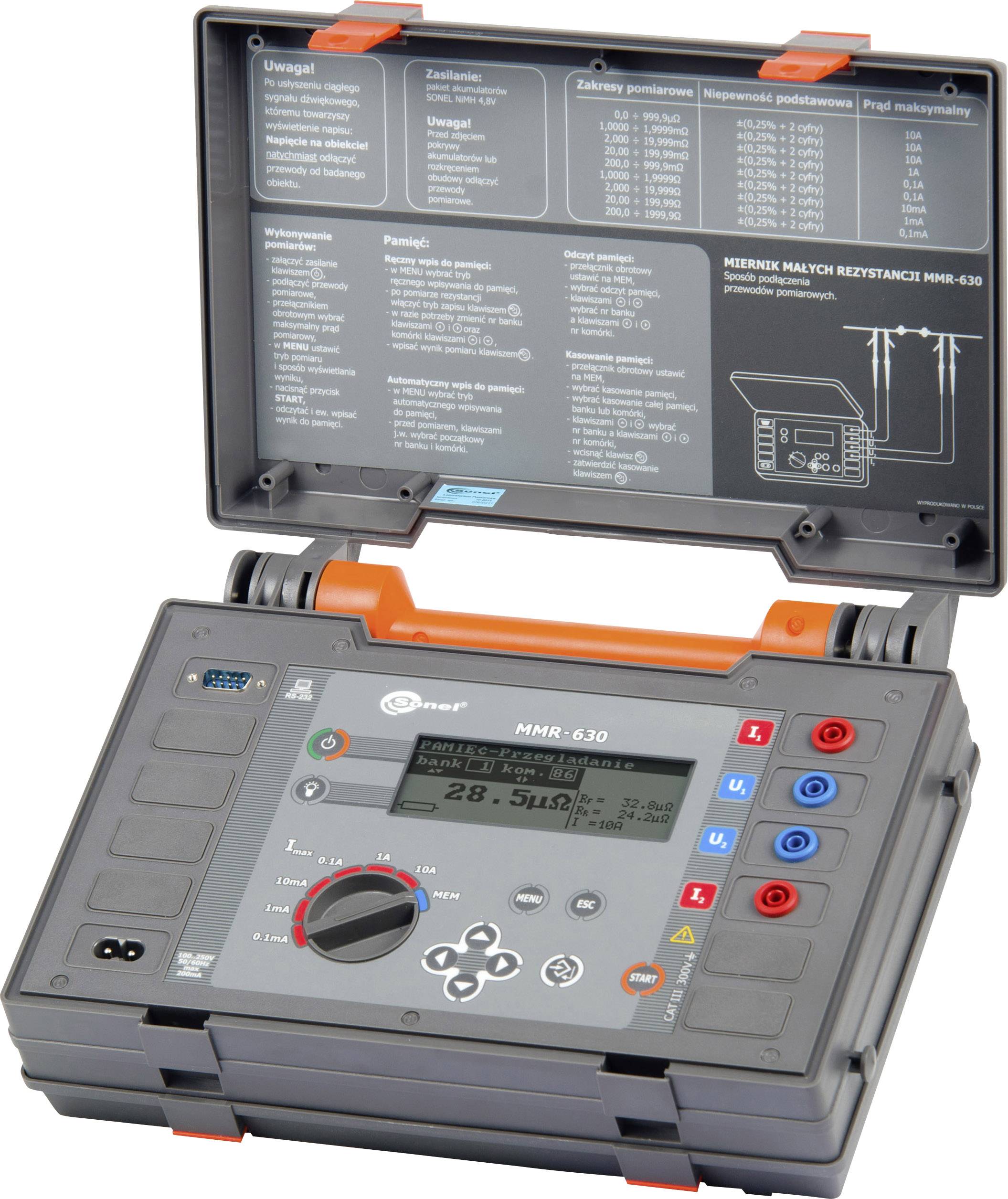

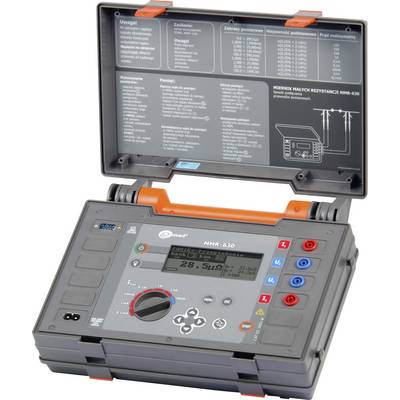

A resistance measuring device with an open lid displays a screen with numbers. Instructions and technical information are visible at the top.

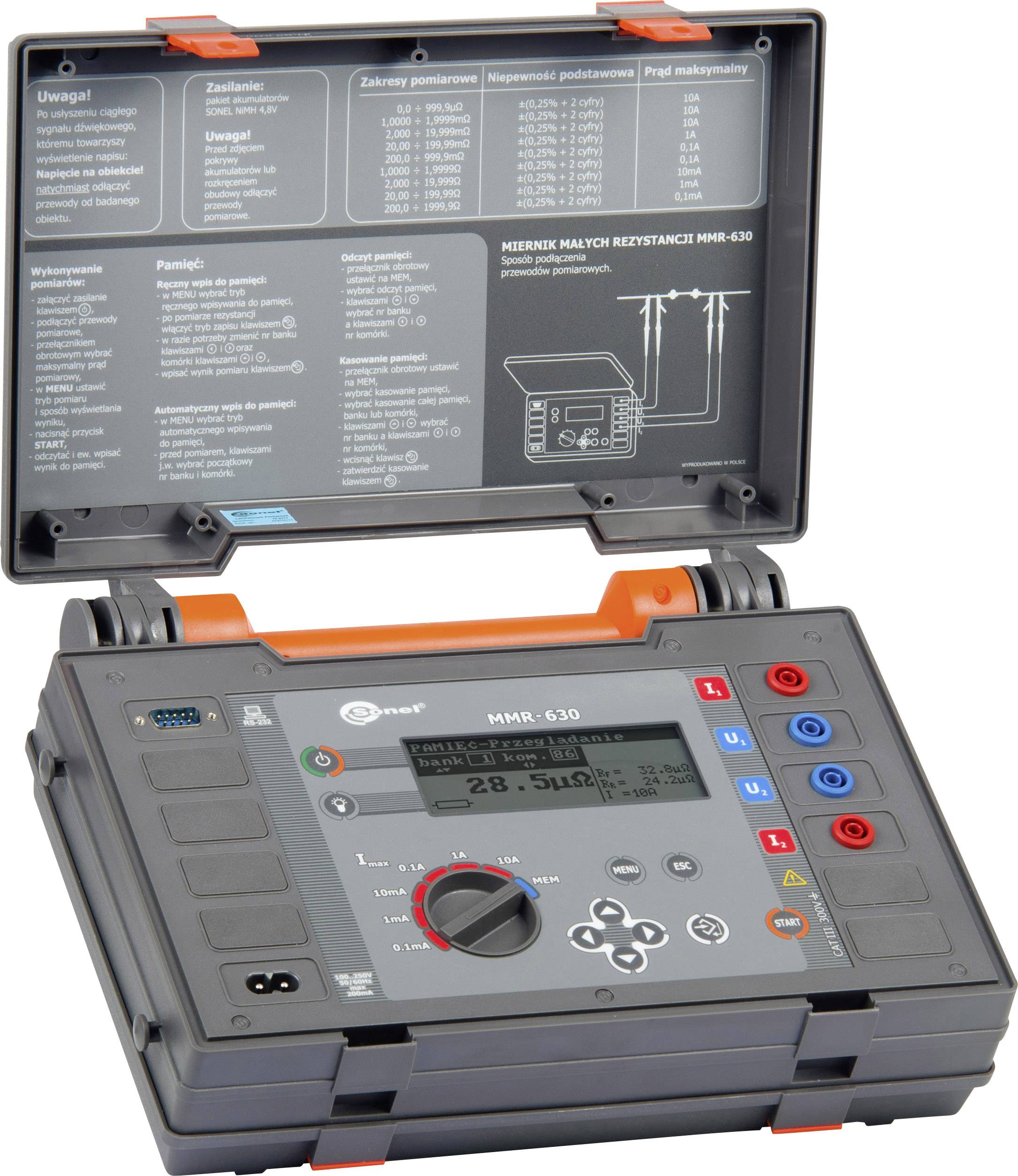

Sonel MMR-630 Component tester Digital CAT IV 300 V-1

1/2

Datasheet (PDF)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 3,654.62 / piece)

€

Report legal concerns

Highlights & Details

Micro Ohmmeter MMR-630

Measurement current up to 10 A
Resolution up to minimum 0.1 µΩ
3 different measurement modes (normal, car, cont.)
Measurement of resistive and inductive objects
4-wire measurement
No influence due to interference.
Adjustable limits (min/max).

Technical specifications

10 A testing current range 0...999.9 µΩ: Resolution: 0.1 µΩ, measuring voltage: 20 mV, accuracy: ± (0.25% v.M. such + 2 digits); 10 A testing current range 1,9999 1,0000... mΩ: Resolution: 0.0001 mΩ, measuring voltage: 20 mV, accuracy: ± (0.25% v.M. such + 2 digits); 10 A testing current range 2,000... 19,999 mΩ: Resolution: 0.001 mΩ, measuring voltage: 200mV, accuracy: ± (0.25% v.M. such +2 digits); 1 A test current range 20.0 ... 199.99 mΩ: Resolution: 0.01 mΩ, measuring voltage: 200mV, accuracy: ± (0.25% v.M. such + 2 digits); 0.1 A testing current range 200 ... 999.9 mΩ: Resolution: 0.1 mΩ, measuring voltage: 200mV, accuracy: ± (0.25% v.M. such + 2 digits); 0.1 A testing current range 1,9999 1,0000... Ω: Resolution: 0.0001 Ω, measuring voltage: 200mV, accuracy: ± (0.25% v.M. such +2 digits); 10 mA test current range 2,000... 19,999 Ω: Resolution: 0.001 Ω, measuring voltage: 200mV, accuracy: ± (0.25% v.M. such +2 digits); 1 mA test current range 20.00 ... 199.99 Ω: Resolution: 0.01 Ω, measuring voltage: 200mV, accuracy: ± (0.25% v.M. such +2 digits); 0.1 mA test current range 200.0... 1999.9 Ω: Resolution: 0.1 Ω, measuring voltage: 200mV, accuracy: ± (0.25% v.M. such +2 digits)

Product type: Component tester

Reading range - resistance: 0.1 µΩ-1999.9 Ω

Interfaces: RS232

Power supply (details): 4.8 V NiMH 3Ah

Height: 180 mm

Width: 455 mm

Length: 310 mm

Weight: 1.7 kg

: Manufacturer's standards (no certificate)

Reading category: CAT IV 300 V

Type: MMR-630

Display: Digital

Dim: (L x W x H) 310 x 455 x 180 mm

Documents & Downloads

Datasheet

Datasheet 1427991 Sonel MMR-630 Component tester Digital CAT IV 300 V

Conformity certificate

Conformity certificate 1427991 Sonel MMR-630 Component tester Digital CAT IV 300 V

Description

The Micro Ohmmeter MMR-620 is a professional test device for measuring the small resistances. Due to the high measuring current and the very small resolution of min. 0.1 µΩ, precise measurements of motors, transformer windings as well as the electrical connections of all kinds can be carried out. It can use both inductive and resistive resistance measurements with 4-conductor measurement can be made.

This text is machine translated.

Features

Portable IP54 housing
CAT IV 300V
Test Leads
Large alligator clips with large pliers
Kelvin terminals for 4-wire measurement
Battery charger
Battery pack
Sonel Reader software
Memory for 990 measuring results by an RS-232C interface to a computer rerecorded.
