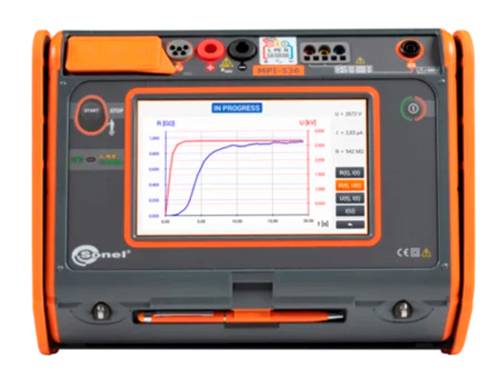

Sonel Multifunktions-Installationsprüfgerät MPI-536 Insulation tester 9.99 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Multifunctional installation tester
- Insulation resistance measurement with a voltage of 2.5 kV
- Diagram of RISO: R(t)/U(t), R(t)/I(t), U(t)/I(t), I(U)
- Absorption coefficients PI, DAR, AB1, AB2 and temperature coefficients k20, K40
- The largest touchscreen display on the market (7”) – exceptional ergonomics and ease of use
- Removable memory card – easy expansion of the storage capacity
- Li-ion battery - more efficient operation through longer runtime
- Measure all parameters with respect to grounding and protection against electric shock - all with one instrument
- Quick measurement of short-circuit impedance in RCD-protected systems without tripping (for a few seconds)
- Auto Tests – Perform automatic successive measurements – simplified measurements
- Lightning fast, from the measurement to the test report
Technical specifications
- Product type
Insulation tester
- Reading type
Insulation resistance
Light intensity
Manufacturer's standards (no certificate)
- Interfaces
Wi-Fi
Bluetooth®
IP51
- Power supply (details)
Li-ion battery (efficient for longer operating times); power supply Z-7 (230 V)
- Dim
(L x W x H) 75 x 288 x 223 mm
- Weight
2.5
- Display type
LCD Touch
- Max. frequency
65 Hz
- Frequency range
65 Hz (max)
- Insulation resistance (max.)
9.99 Ω
- Voltage reading range (max.)
500 V
- Reading category
CAT IV 300 V
CAT III 500 V
- Width
288 mm
- Height
223 mm
- Length
75 mm
Documents & Downloads
Datasheet
Datasheet 3763601 Sonel Multifunktions-Installationsprüfgerät MPI-536 Insulation tester 9.99 Ω
User & Safety Instructions
User & Safety Instructions 3763601 Sonel Multifunktions-Installationsprüfgerät MPI-536 Insulation tester 9.99 Ω
Description
Brilliant images
The device is equipped with a color TFT LCD touch screen of 800 x 480 pixels and a 7 inch diagonal screen, which enables easy operation and reading of parameters and recorded waveforms. This screen size allows you to view more information at the same time that is currently available. The user interface is easy to read under all lighting conditions. The pen included in the delivery also enables use with insulated gloves.
Interfaces and software
The numerous communication interfaces and the cooperation with external software are to be highlighted. Transfer readings to your computer via a USB port, removable SD memory cards, or wireless (Bluetooth, Wi-Fi). To report electrical shock protection measurements, use the Sonel REPORTS PLUS software. The saving of the downloaded data in the most common formats and the printing is done via the free software Sonel reader.
Increased resistance
The device is designed for use under difficult environmental conditions. The protection against penetration of dust and water is ensured by the unique IP51 casing. It is also extremely robust to cope with mechanical external influences. A special design of the lid also protects the display against damage. Despite the design for protecting the device, it is nevertheless comfortable to use and transport.
Integrated help menu
The device has integrated help menus with connection diagrams. Thanks to this, you can quickly and easily check and ensure how you need to connect the device to a specific system, depending on the type of measurement.
This text is machine translated.
