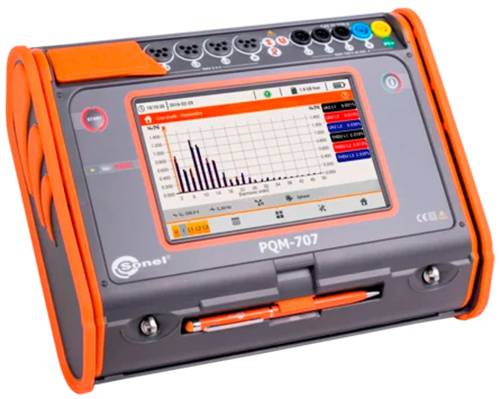

Sonel PQM-707 Network diagnostics Graphic display
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Portable mains analyzer
- 7” touchscreen – ergonomic and intuitive graphical user interface.
- Over 10 years recording time possible
- Measurement category CAT IV 600 V - high safety.
- All Class S parameters – high accuracy of measurements.
- Li-Ion battery – increased mobility.
- Voltage supply from the measured mains – reliability of measurements.
- Removable memory card – recording data without limitations.
- Fast setup and reporting - easy to use.
- Evaluations with the desktop software Sonel Analysis - advanced data analysis
Technical specifications
- Product type
Network diagnostics
- Reading category
CAT IV 600 V
Manufacturer's standards (no certificate)
- Features
Graphic display
- Interfaces
SD card
Documents & Downloads
Datasheet
Datasheet 3763612 Sonel PQM-707 Network diagnostics Graphic display
User & Safety Instructions
User & Safety Instructions 3763612 Sonel PQM-707 Network diagnostics Graphic display
Description
Properties
The PQM-707 is an autonomous measuring device, which enables versatile measurements, analyzes and recordings of parameters of the mains supply (direct current and 50/60 Hz). All parameters are measured according to I/A/W class S of the standard IEC 61000-4-30, which ensures a high measuring accuracy. The 7-inch color touch display – the largest in this class of analyzers! – Allows intuitive and ergonomic operation. The built-in lithium-ion battery enables the analyzer to work efficiently during measurement without the need to connect an external power supply.
Data display
The analyzer is equipped with an easy to read color touch display. Its resolution of 800 x 480 pixels offers both high comfort in using the user interface as well as a good readability of the results of measurement. The pen supplied enables use with insulating gloves.
Fields of application
The analyzer is aimed at a very wide range of users, especially maintenance personnel. Thanks to its mobility and autonomy, all problems that occur in the supply networks can be diagnosed on the spot. The analyzer can be used directly or indirectly via converters in virtually any type of mains with a nominal voltage of 54 V to 760 V. The PQM-707 can be used in the field of professional energy technology, with maintenance services in industrial plants as well as with service providers, who have specialized in the network analysis.
Robust and practical housing
The housing has been designed so that the touch display and all measurement and communication connections are easily accessible. The hinged cover protects the display from damage. Thanks to the protection class IP51 the device can be used even under difficult conditions - dust and splash-water are no problem.
This text is machine translated.
The PQM-707 is an autonomous measuring device, which enables versatile measurements, analyzes and recordings of parameters of the mains supply (direct current and 50/60 Hz). All parameters are measured according to I/A/W class S of the standard IEC 61000-4-30, which ensures a high measuring accuracy. The 7-inch color touch display – the largest in this class of analyzers! – Allows intuitive and ergonomic operation. The built-in lithium-ion battery enables the analyzer to work efficiently during measurement without the need to connect an external power supply.
Data display
The analyzer is equipped with an easy to read color touch display. Its resolution of 800 x 480 pixels offers both high comfort in using the user interface as well as a good readability of the results of measurement. The pen supplied enables use with insulating gloves.
Fields of application
The analyzer is aimed at a very wide range of users, especially maintenance personnel. Thanks to its mobility and autonomy, all problems that occur in the supply networks can be diagnosed on the spot. The analyzer can be used directly or indirectly via converters in virtually any type of mains with a nominal voltage of 54 V to 760 V. The PQM-707 can be used in the field of professional energy technology, with maintenance services in industrial plants as well as with service providers, who have specialized in the network analysis.
Robust and practical housing
The housing has been designed so that the touch display and all measurement and communication connections are easily accessible. The hinged cover protects the display from damage. Thanks to the protection class IP51 the device can be used even under difficult conditions - dust and splash-water are no problem.
This text is machine translated.
