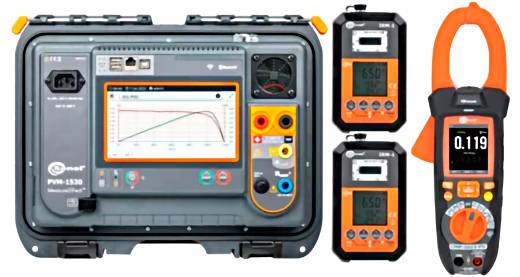

Sonel PVM-1530 MAX PV tester set
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
PV tester set
- Reading type
Voltage
Resistance
Amperage
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 172 x 390 x 308 mm
- Display
Touchscreen
- Weight
8.8 kg
- Features
Data logger
- Reading category
CAT III 1500 V
CAT IV 600 V
- Width
390 mm
- Height
308 mm
- Length
172 mm
- Interfaces
Bluetooth®
Documents & Downloads
Datasheet
Datasheet 3763595 Sonel PVM-1530 MAX PV tester set
User & Safety Instructions
User & Safety Instructions 3763595 Sonel PVM-1530 MAX PV tester set
Description
PVM-1530: Measurements of Cat 1., I-U characteristic curve
The PVM-1530 is a ground-breaking meter for photovoltaic systems up to 1500 V with a multitude of measuring functions. The selection is made via a touch-screen. The screen is large, color intensive and has a strong backlight, so operation in full sunlight is not a problem. A large structure memory considerably reduces the time required to create the documentation after the measurement.
IRM-1: Simplicity and compact dimensions
IRM-1, small but indispensable for testing PV systems. By measuring the solar radiation values as well as the panel and ambient temperatures, it provides the necessary data to convert the results into STC conditions. A built-in recorder with 5000 record memory allows the device to be used as a tool in the PV plant planning process and to diagnose panel shading problems.
Leak resistance and resistance
These measurement devices are also ideal for use under difficult environmental conditions. The PVM-1530 housing is robust and sealed, so the meter is protected during measurement.
Interfaces and software
Measurements of the IRM-1 can be transferred to a computer via the USB port. In addition, the device has a built-in wireless LORA interface (long range) for automatic data exchange with the main measuring device – even over long distances.
The measurement results can be transferred from the PVM-1530 to the computer via USB and wireless interfaces. The storage and printing of the recorded data in the most common formats is done with the Sonel reader. To a report
The optional Sonel Reports Plus program must be used to provide protection against electrical shock.
Problems? Resync!
It may happen that the PVM-1530 is so far away from the IRM-1 during the measurements that communication between them is interrupted. If the measurements continue, after the connection is restored, the results are automatically supplemented with the parameters recorded in its temporary memory by the IRM-1 and converted to STC conditions in the meantime.
This text is machine translated.
Features
- PVM-1530
- • Allows Category 1 measurements to be performed according to EN 62446-1.
- • Allows you to measure the I-U characteristic curve for Category 2. In accordance with EN 62446-1 and EN 61829 standards.
- • Allows the measurement of photovoltaic modules, including bifazal and high-efficiency modules.
- • Possibility of setting measuring procedures.
- • Allows the radiation and temperature meter to convert values to STC conditions in accordance with EN IEC 60891 standard
- IRM-1
- • The Resync function – automatic addition of the results with environmental parameters and their conversion into STC conditions
- After reconnecting to the IRM-1.
- • The radio interface supplied ensures long-distance collaboration with the IRM-1 meter.
- • Built-in Bluetooth and WLAN module for communication with external devices.
- • Large structured memory for all tests.
- • Large touchscreen display for clear visibility in bright sunlight.
- IRM-1
- • Measures radiation and temperature.
- • The Lora interface for communication with a Master measuring device – offers a greater range than the Bluetooth
- Technology!
- • Automatic data synchronization with the main instrument with resync function.
- • Integrated compass and inclination sensor.
- • Integrated recorder which records the solar radiation before the installation of PV systems and for measuring the
- Shading of existing plants can be used.
- • Large measurement data storage: 999 cache memory cells and 5000 recorder recordings available (one-time recording)
- Can also be overwritten (continuous recording).
