Sparkfun BOB-10680 PCB extension board 1 pc(s) Compatible with (development kits): Arduino
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Packaging type
Piece
- Product type
PCB extension board
- Compatible with
Arduino
- Tool type
Expansion board
- Compatible with
Arduino
Documents & Downloads
Datasheet
Datasheet 2227728 Sparkfun BOB-10680 PCB extension board 1 pc(s) Compatible with (development kits): Arduino
User & Safety Instructions
User & Safety Instructions 2227728 Sparkfun BOB-10680 PCB extension board 1 pc(s) Compatible with (development kits): Arduino
Information
Information 2227728 Sparkfun BOB-10680 PCB extension board 1 pc(s) Compatible with (development kits): Arduino
Description

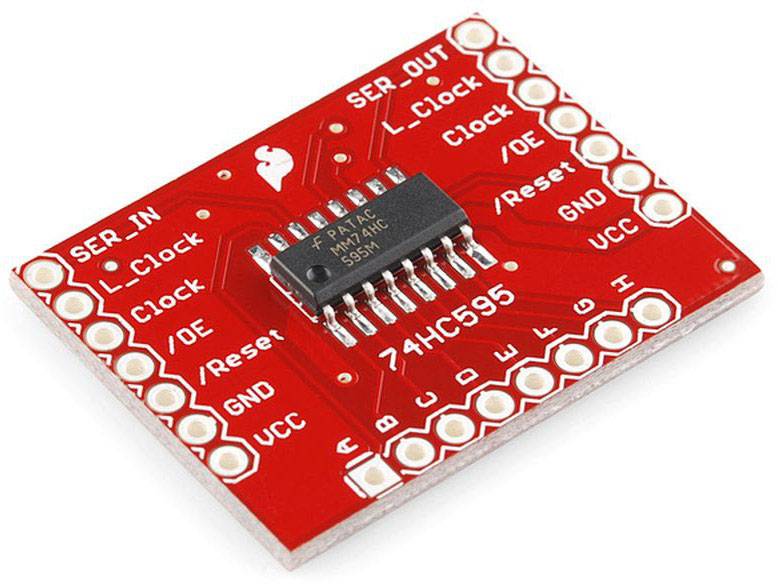

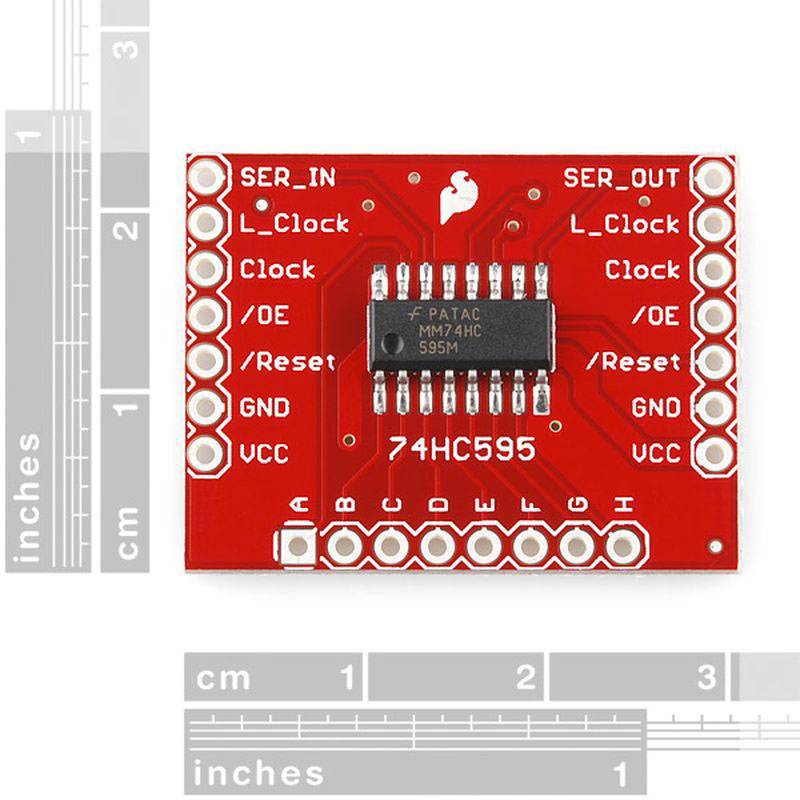

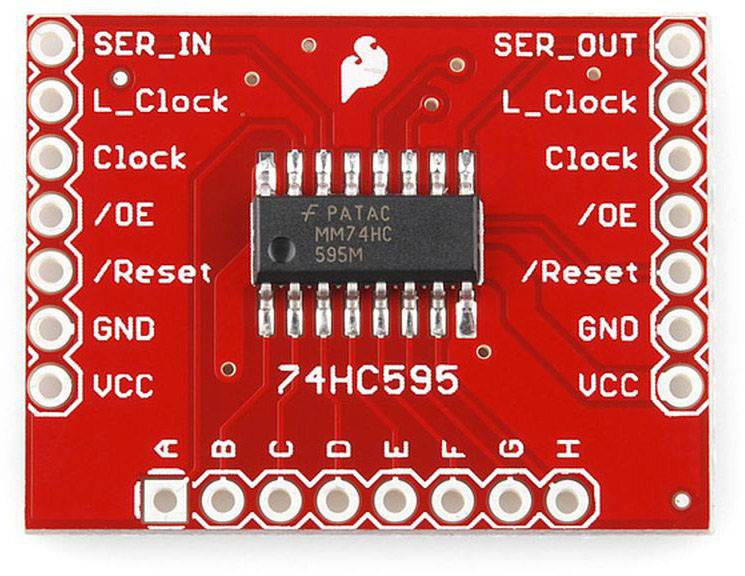

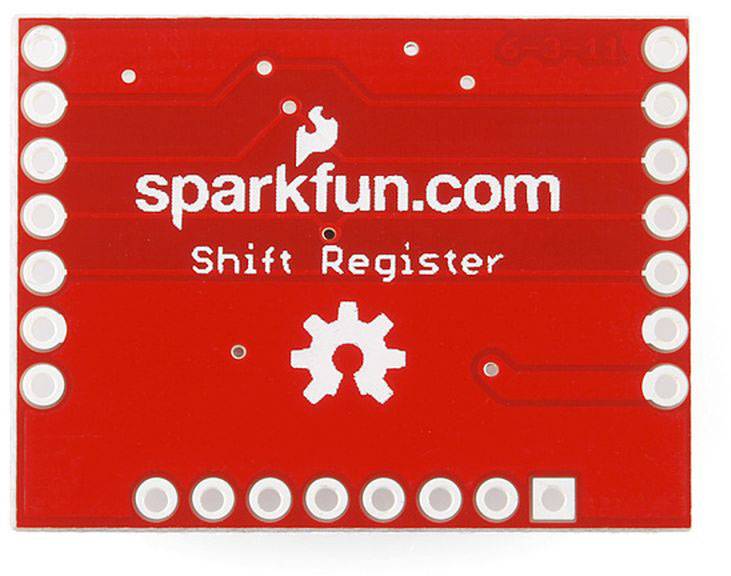

This is an outbreak for the SOIC version of the 74HC595 Shift Register IC. Read in and lock data to release IO pins on your micro. All pins of the IC are broken out in a standard 0.1" distance to the pin strips. The serial input and output pins are located on opposite sides of the board, with the remaining pins transferred so that several shift register boards can be daisy chained together.
