Sparkfun DEV-09716 Board 1 pc(s) Compatible with (development kits): Arduino
EAN:
Part number:
Item no:
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Board
- Compatible with
Arduino
- Interfaces
Serial
- Suitable for
Arduino
- Tool type
Expansion board
- Compatible with
Arduino
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2227532 Sparkfun DEV-09716 Board 1 pc(s) Compatible with (development kits): Arduino
Information
Information 2227532 Sparkfun DEV-09716 Board 1 pc(s) Compatible with (development kits): Arduino
Description

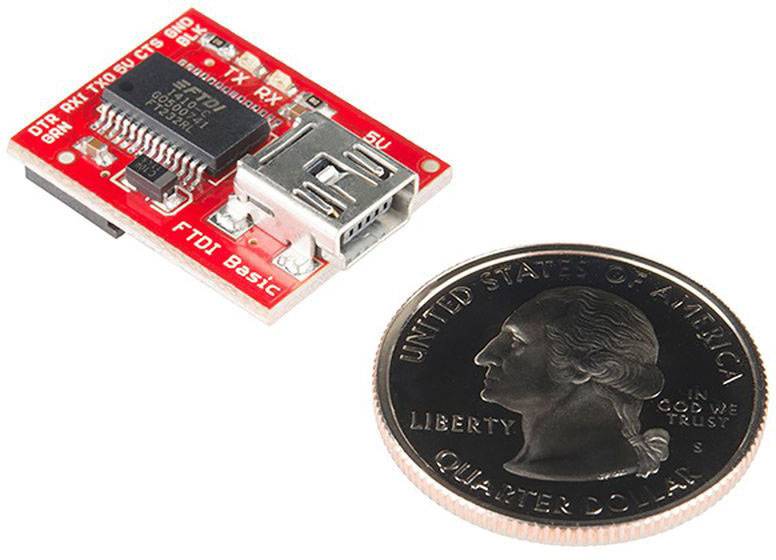

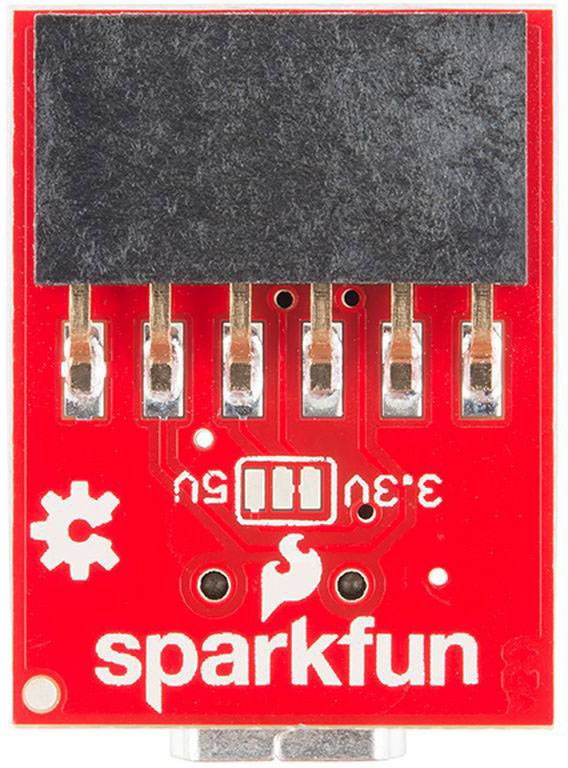

This is the latest revision of our FTDI Basic. We now use a 6-pin SMD plug on the bottom, was smaller and more compact. The functionality has remained the same.

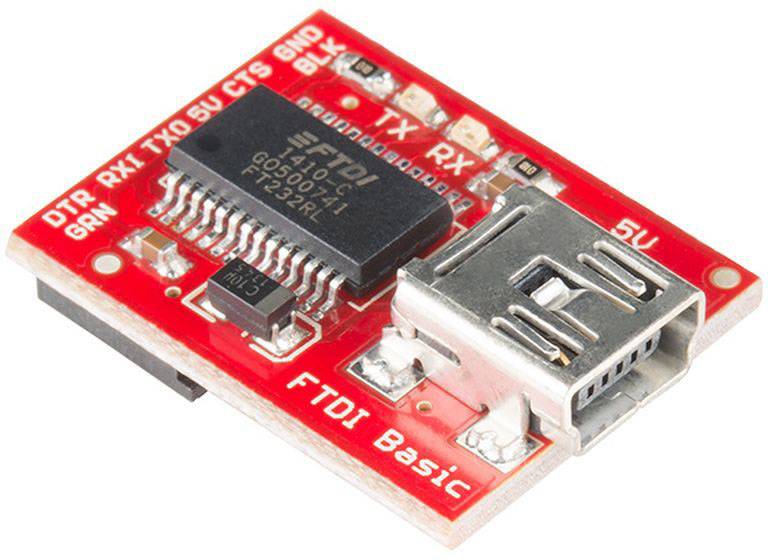

This is a simple breakout board for the FTDI FT232RL USB to serial IC. The layout of this board is the same as the FTDI cable to work with official Arduino and cloned 5V Arduino boards. It can also be used for general series applications. The main difference to this board is that it releases the DTR pin as opposed to the RTS pin of the FTDI cable. The DTR pin allows an Arduino destination to reset automatically when downloading a new sketch. This is a really nice feature that allows you to download a sketch without pressing the reset button. This board automatically resets each Arduino board that has the reset pin on a 6-pin connector.

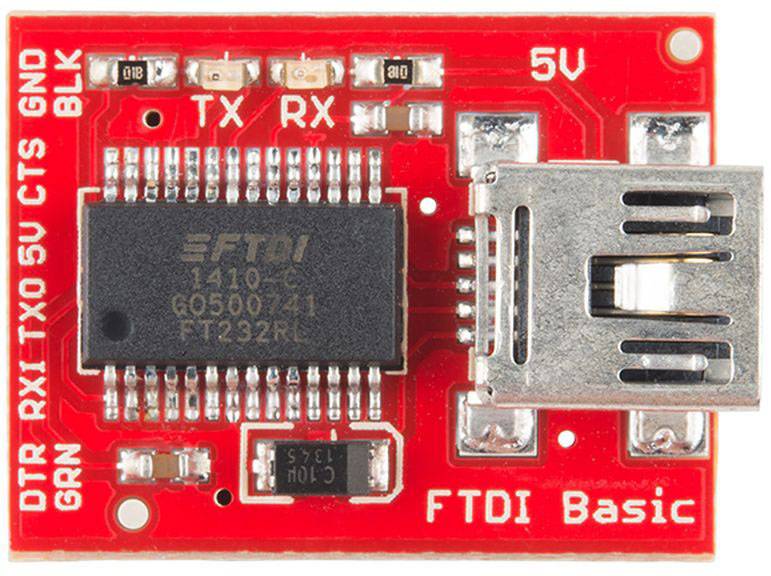

The pins marked BLK and GRN correspond to the colored wires on the FTDI cable. The black wire on the FTDI cable is GND, green is CTS. Use these BLK and GRN pins to align the FTDI baseboard with your Arduino target.
This board has TX and RX LEDs that make it a little better to use it over the FTDI cable. You can actually see series traffic on the LEDs to check if the board is working.
This board is designed to reduce the cost of Arduino development and improve user experience (the automatic reset of the feature rocks!). Our Arduino Pro Boards and LilyPads use this type of connector.
This text is machine translated.
This is a simple breakout board for the FTDI FT232RL USB to serial IC. The layout of this board is the same as the FTDI cable to work with official Arduino and cloned 5V Arduino boards. It can also be used for general series applications. The main difference to this board is that it releases the DTR pin as opposed to the RTS pin of the FTDI cable. The DTR pin allows an Arduino destination to reset automatically when downloading a new sketch. This is a really nice feature that allows you to download a sketch without pressing the reset button. This board automatically resets each Arduino board that has the reset pin on a 6-pin connector.
The pins marked BLK and GRN correspond to the colored wires on the FTDI cable. The black wire on the FTDI cable is GND, green is CTS. Use these BLK and GRN pins to align the FTDI baseboard with your Arduino target.
This board has TX and RX LEDs that make it a little better to use it over the FTDI cable. You can actually see series traffic on the LEDs to check if the board is working.
This board is designed to reduce the cost of Arduino development and improve user experience (the automatic reset of the feature rocks!). Our Arduino Pro Boards and LilyPads use this type of connector.
This text is machine translated.
