Sparkfun SEN-12909 Sensor module 1 pc(s) Compatible with (development kits): Arduino
EAN:
Part number:
Item no:
Total (€ 100.84 / piece)
€ 100.84
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Sensor module
- Compatible with
Arduino
- Interfaces
I²C
- Tool type
Expansion board
- Compatible with
Arduino
Description

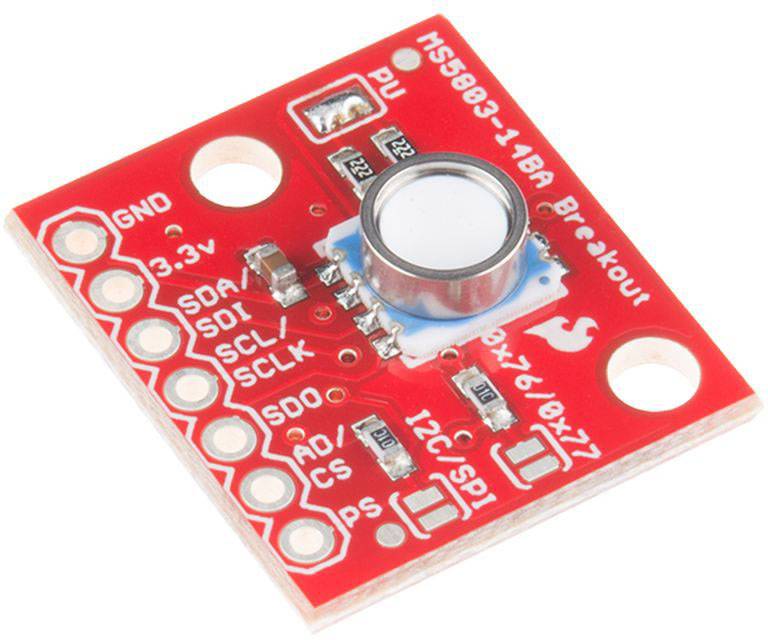

This is the MS5803-14BA Pressure Sensor Breakout, a high-resolution pressure sensor with I2C and SPI interface. This MEMS pressure sensor measures the absolute pressure of the surrounding fluid, which includes air, water and everything else that acts like a viscous liquid. Depending on how you interpret the data, you can determine height, water depth, or other tasks that require accurate pressure measurement. What was unique to the MS5803-14BA is the gel membrane and the anti-magnetic stainless steel cap, which protects against 30 bar water pressure.

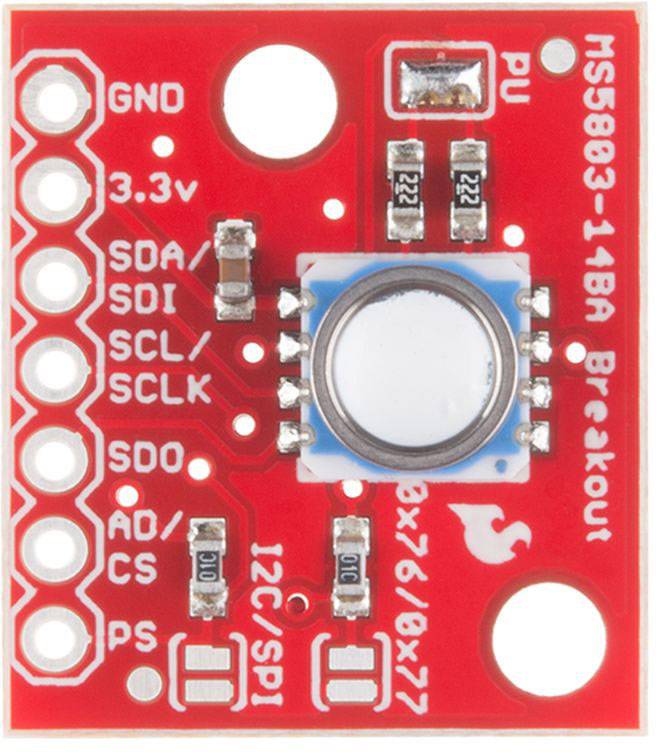

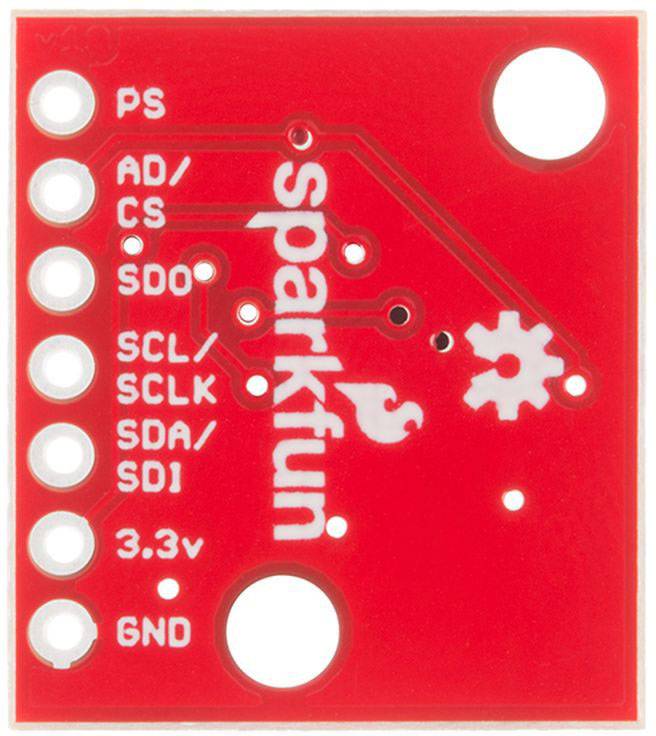

We have broken out all the pins you need, including GND and 3.3V for power, SDA/SDI and SCL/SCLK for a I2C interface and SD0, AD/CS and PS for an SPI interface. The MS5803-14BA breakout offers a resolution range of 1/0.6/0.4/0.3/0.2 mbar. Please note that switching between the I2C and SPI interfaces requires a little soldering between the solder pads, please read the connection description below for more information.
This text is machine translated.
We have broken out all the pins you need, including GND and 3.3V for power, SDA/SDI and SCL/SCLK for a I2C interface and SD0, AD/CS and PS for an SPI interface. The MS5803-14BA breakout offers a resolution range of 1/0.6/0.4/0.3/0.2 mbar. Please note that switching between the I2C and SPI interfaces requires a little soldering between the solder pads, please read the connection description below for more information.
