Sparkfun SEN-13030 RFID card 1 pc(s) Compatible with (development kits): Arduino
EAN:
Part number:
Item no:
Total (€ 3.10 / piece)
€ 3.10
plus VAT.
Technical specifications
- Product type
RFID card
- Compatible with
Arduino
Documents & Downloads
Information
Information 2227697 Sparkfun SEN-13030 RFID card 1 pc(s) Compatible with (development kits): Arduino
Description

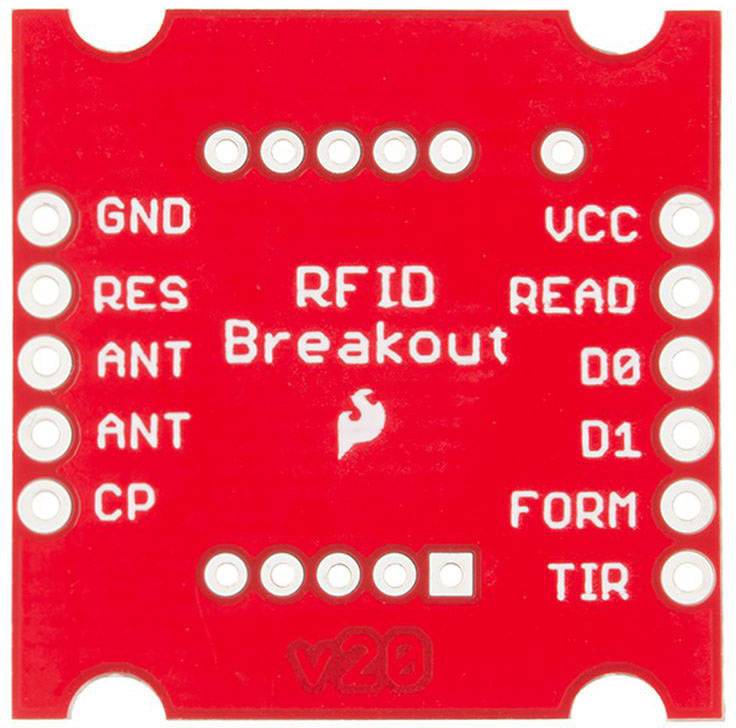

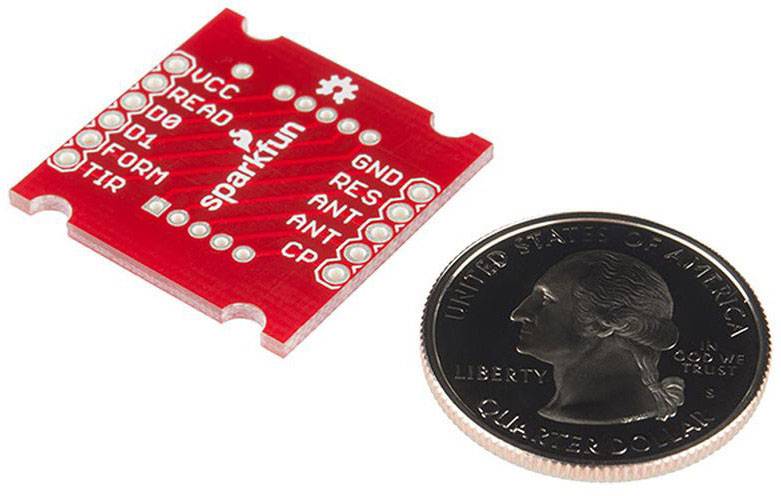

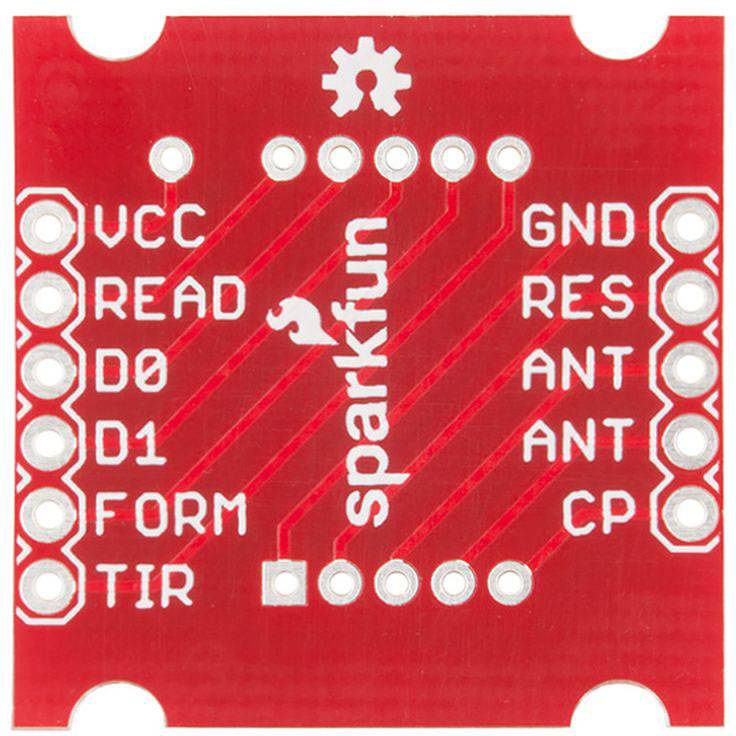

This is a simple breakout board for our RFID readers. The Sparkfun RFID Reader Breakout converts the 2mm pins into board friendly 0.1" headers. With this function, you can solder the reader directly to the breakout board or use the 2mm sockets.
These edges of the breakout board actually fit flush into the bottom of the ID-12LA. The board also works with the ID-20LA, but is smaller than the edges. As already mentioned, each pin of the RFID reader was broken out, including: VCC, READ, D0, D1, FORM, TIR, CP, both Ants, RES and GND. We even have four half-mounting holes on the board to easily secure your project!
This text is machine translated.
These edges of the breakout board actually fit flush into the bottom of the ID-12LA. The board also works with the ID-20LA, but is smaller than the edges. As already mentioned, each pin of the RFID reader was broken out, including: VCC, READ, D0, D1, FORM, TIR, CP, both Ants, RES and GND. We even have four half-mounting holes on the board to easily secure your project!
