SpeaKa Professional Audio/phono Extractor [HDMI - RCA] 3840 x 2160 Pixel, 4096 x 2160 Pixel
EAN:
Part number:
Item no:
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
14-day return policy included
Highlights & Details
Speaka Professional SP-HAE-300 HDMI audio extractor, supports 5.1CH 4K 3D
- HDMI resolutions up to 2160p@30 Hz
- 32~192 kHz sampling rate
- 5.1CH/2.0 audio modes
- Signal-to-noise ratio: 120 db
- Multiple interfaces
- Input: HDMI

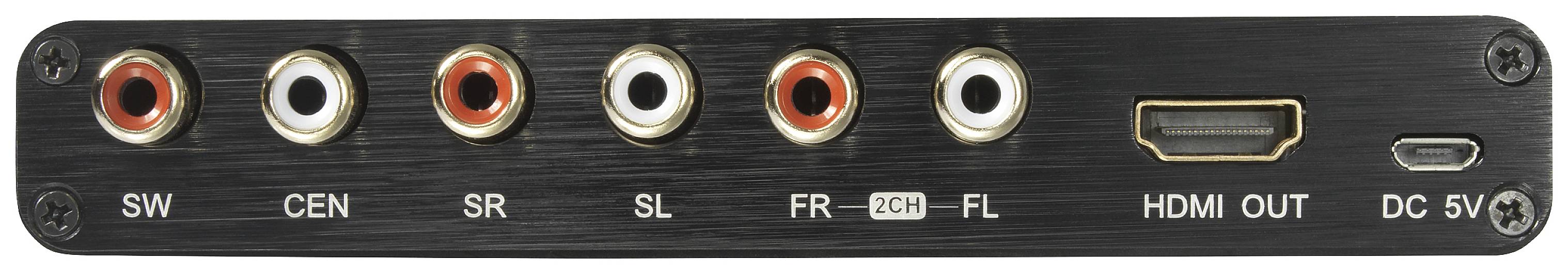

- Output: HDMI; SW, CEN, SR, SL, FR, FL; 3.5 mm headphone port
- Adjustable volumeSupports 3D
Technical specifications
- Sampling rate: 32~192 kHz
- Signal-to-noise ratio 120 dB
- HDCP 1.4 support
- Product type
Audio/phono Extractor
- Connection type
HDMI
RCA
- No. of A connectors
1 x
- Type A
HDMI®
- No. of B connections
5 x
- Type B
RCA socket (phono)
HDMI®
- Video resolution
3840 x 2160 Pixel
4096 x 2160 Pixel
- Factory colour
Black
- Connector version
straight
- Cable features
incl. volume control
- Version
Extractor
- Cable use
Audio/phono
- Signal flow direction
Unidirectional (uni)
- Weight
182 g
- Length
138 mm
- Width
96 mm
- Height
21 mm
- Dim
(L x W x H) 138 x 96 x 21 mm
- Range of use
Home cinema/HD beamer
- Port
1 port
- Supported audio file formats
Dolby-AC3
DTS
LPCM 2.0
LPCM 5.1
PCM
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2617146 SpeaKa Professional Audio/phono Extractor [HDMI - RCA] 3840 x 2160 Pixel, 4096 x 2160 Pixel
User & Safety Instructions 2617146 SpeaKa Professional Audio/phono Extractor [HDMI - RCA] 3840 x 2160 Pixel, 4096 x 2160 Pixel
Conformity certificate
Conformity certificate 2617146 SpeaKa Professional Audio/phono Extractor [HDMI - RCA] 3840 x 2160 Pixel, 4096 x 2160 Pixel
Description
This audio decoder can automatically convert the HDMI input into an analogue 5.1 channel audio output and supports the decoding of Dolby AC-3/DTS (including 5.1 RAW digital audio streaming). In this way it can be used in versatile ways, for instance, at home, in schools, in concert halls, in cinemas and other public places, in order to enjoy the effect of DTS or Dolby.
This text is machine translated.
This text is machine translated.
Features
- HDMI input resolution: Up to 3840x2160@30 Hz, 4096x2160@30 Hz
- Supports 6CH synchronous volume adjustment and 3D
- 192 KHz auto decode: Built-in high-performance RTOS operating system and audio decoder chip, 192 KHz/24-bit; Supports DTS/Dolby AC-3(LPCM/PCM/RAW). SupportsMP3, AC3, DTS, WAV, WMA, AAC, ALAC, FLAC, APE, OGG and M4AHigh compatibility: Supports network players, HDTVs, Blu-ray DVD players, DVD players, DM500S, DM800HD, game consoles, PlayStation PS2,PS3, PS4/Pro, and Xbox One

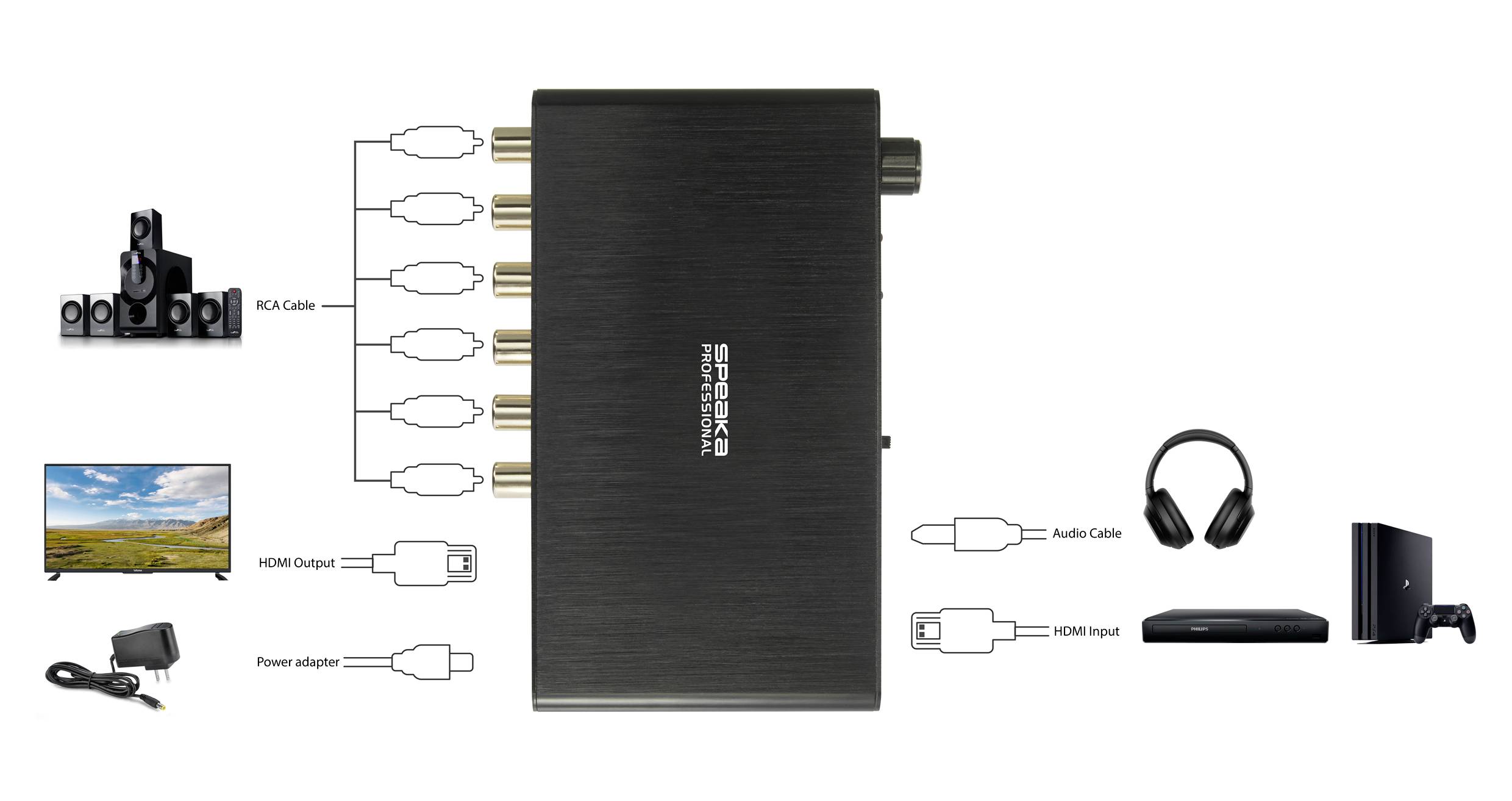

- Connects to your AV audio amplifier or receiver (e.g. Yamaha, Logitech) - perfect for enjoying digital home theater and surround soundMetal housing
Scope of delivery
- HDMI audio extractor
- Micro USB power cable
- User manual
Hints
For power supply in operation, you need a free USB-A connection at an available device or an optional USB power adapter (5V DC/min. 1 A).
