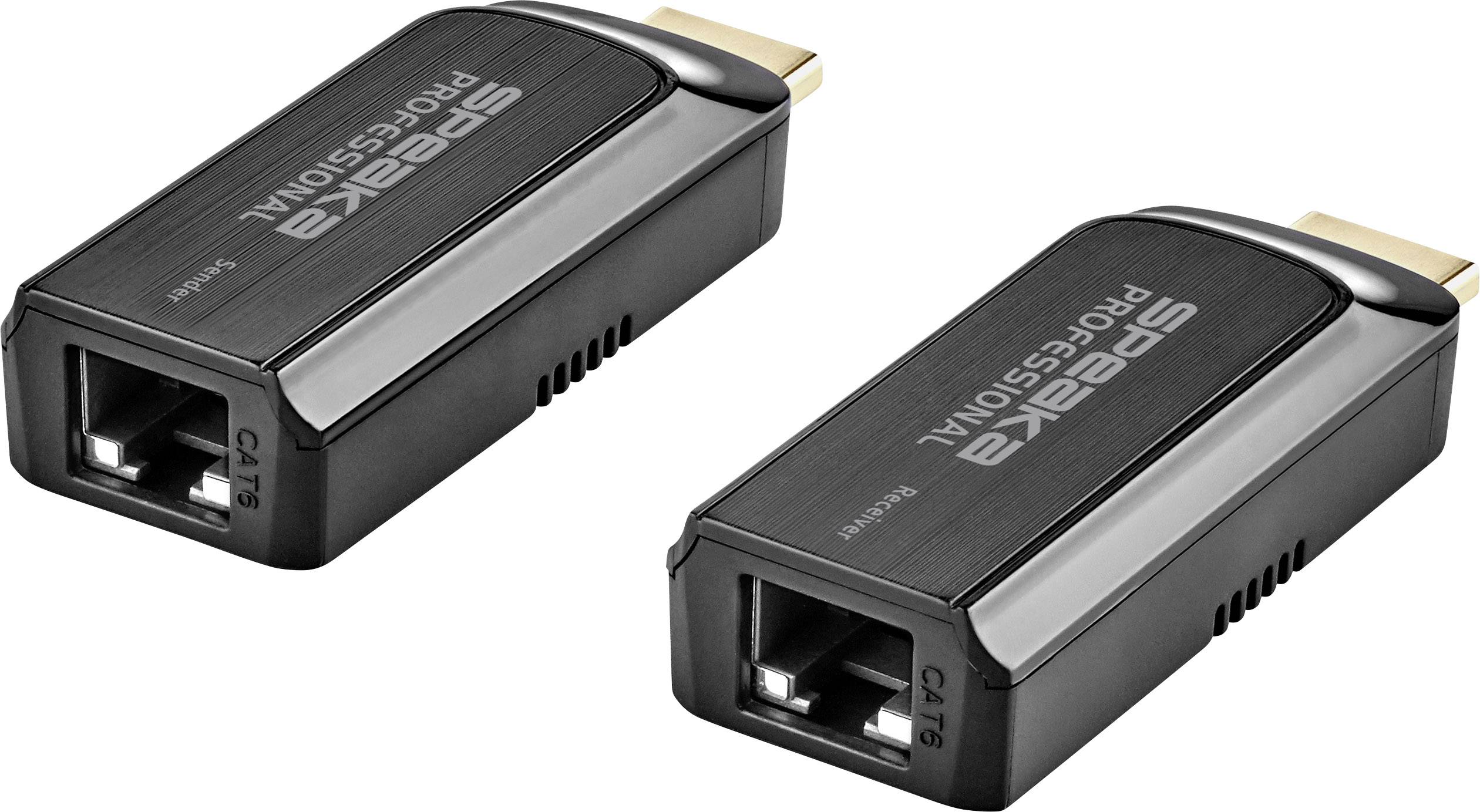

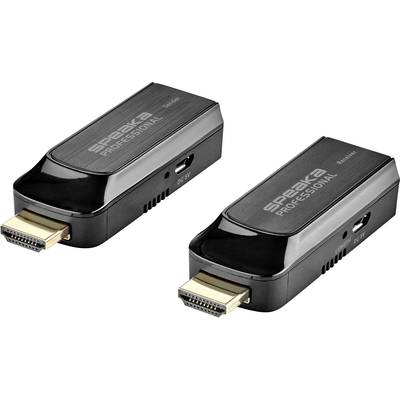

SpeaKa Professional HDMI™ Extension via RJ45 network cable 50 m
EAN:
Part number:
Item no:
Highlights & Details
SpeaKa Professional HDMI extension via patch cable 50 m
- Quickly and easily extend the HDMI signal
- Range: approx. 50 m
- Loop HDMI input on the transmitter
- Supports the resolutions 480p, 720p and 1080p
- No latency
Technical specifications
- Maximum transfer rate 10.2Gbps
- Product type
Extension
- Transfer type

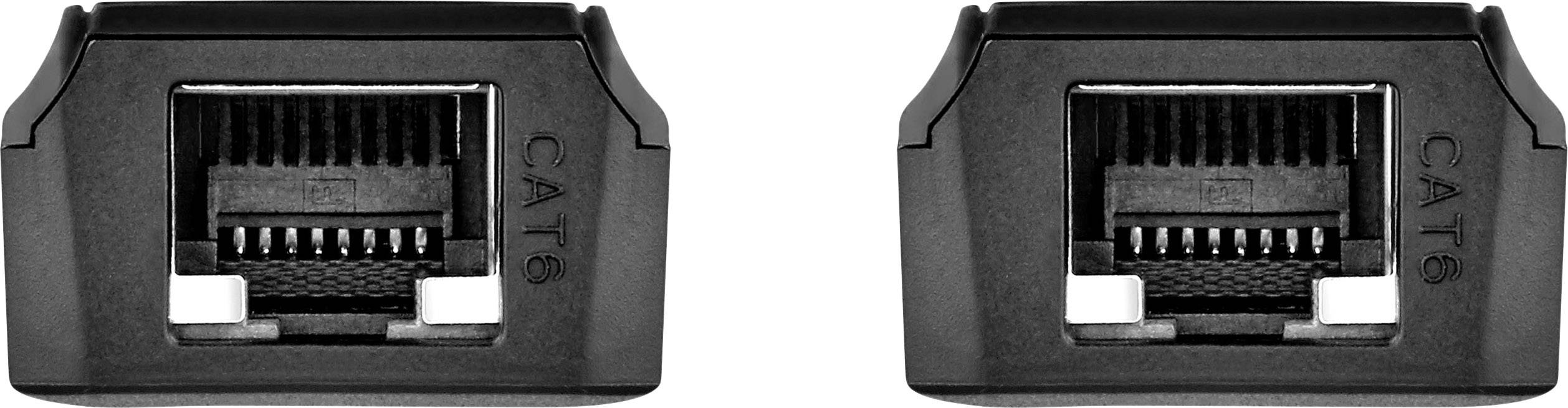

via RJ45 network cable
- Interfaces (input)

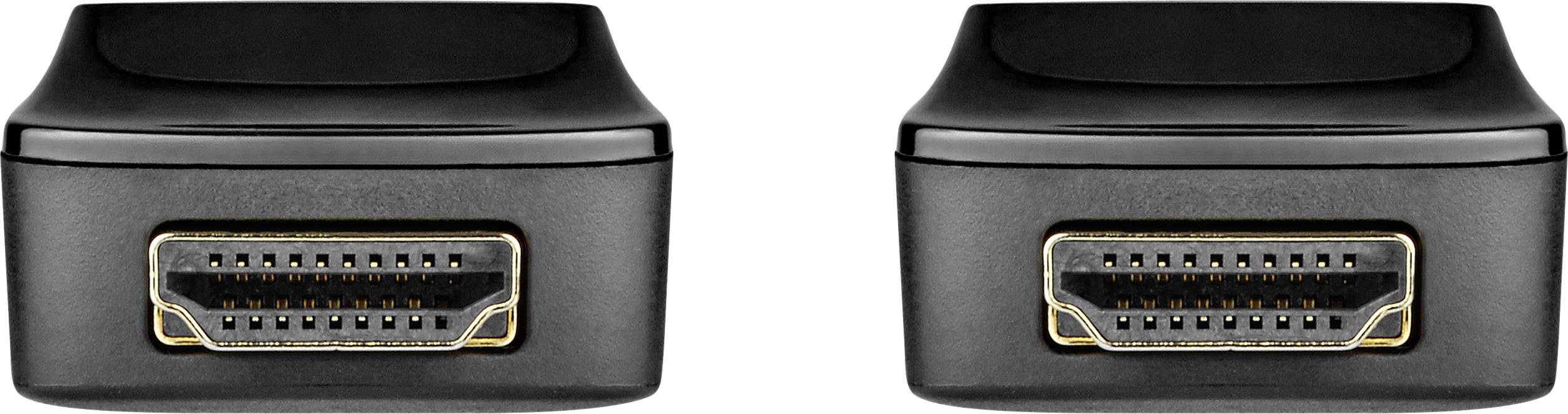

HDMI™
- Interfaces (output)
HDMI™
- Resolution (max.)
1920 x 1080 p
- Range (max.)
50 m
- Factory colour
Black
- Weight
16.8 g
- Length
71.3 mm
- Width
26 mm
- Height
16 mm
- Dim
(L x W x H) 71.3 x 26 x 16 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1693320 SpeaKa Professional HDMI™ Extension via RJ45 network cable 50 m
Description
The HDMI extension is ideal to distant monitors with HDMI to connect. Especially in professional areas, such as machine monitoring and production facilities, often have a long signal paths.

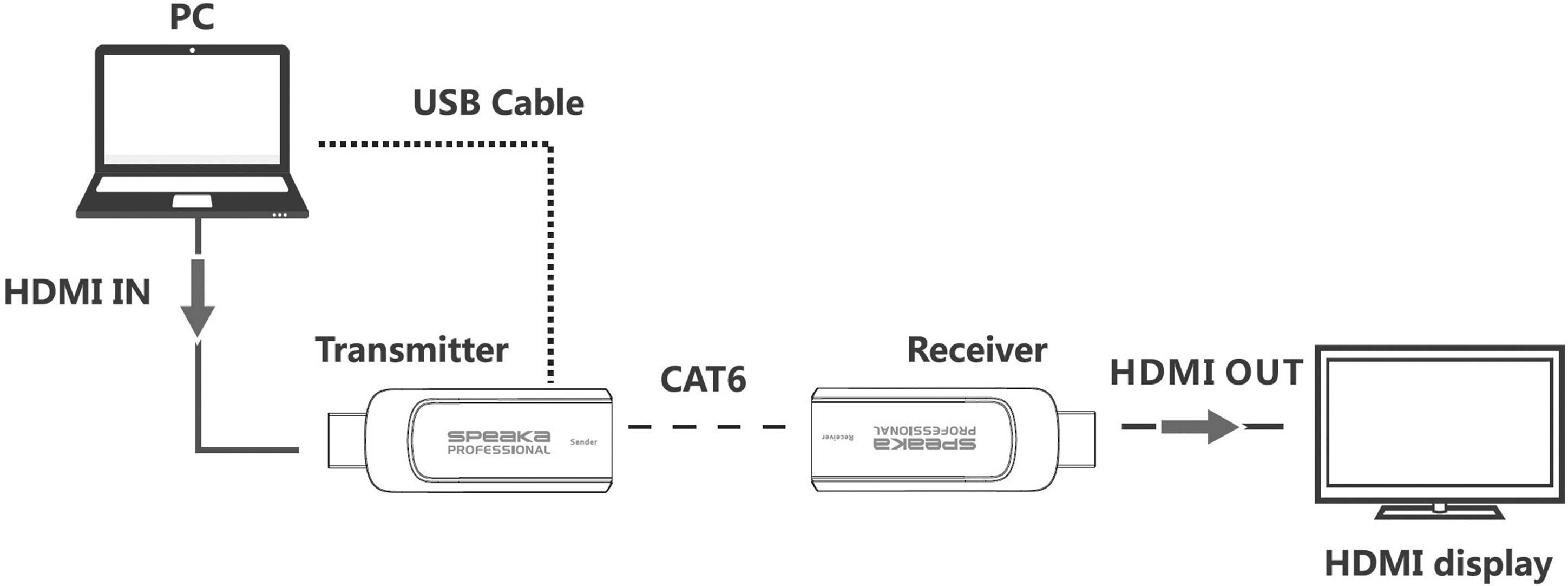

HDMI cables are limited in their length. As an alternative, a cost-effective network cable can be used to extend the VGA signal. You can extend the length to up to 50 m. Simply connect a HDMI source is connected to the transmitter. The network cable connects the transmitter and receiver. You can access it easily and comfortably the HDMI signal at the receiver and enter this on a monitor.
No loss of the signal.
Compared to expensive HDMI radio transmissions, there is a further advantage: there are no signal loss through walls or other interference.
HDMI - wherever you want it

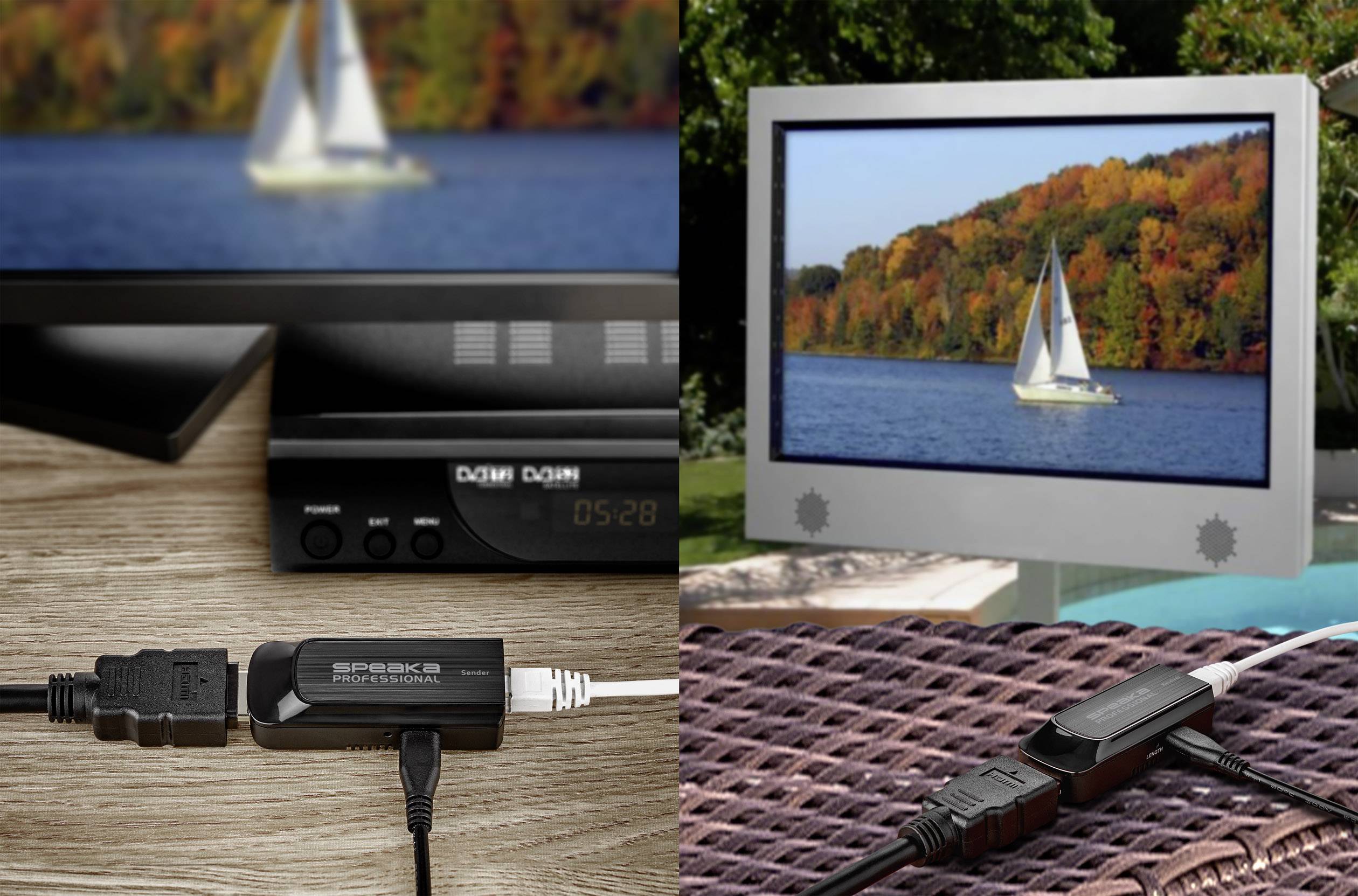

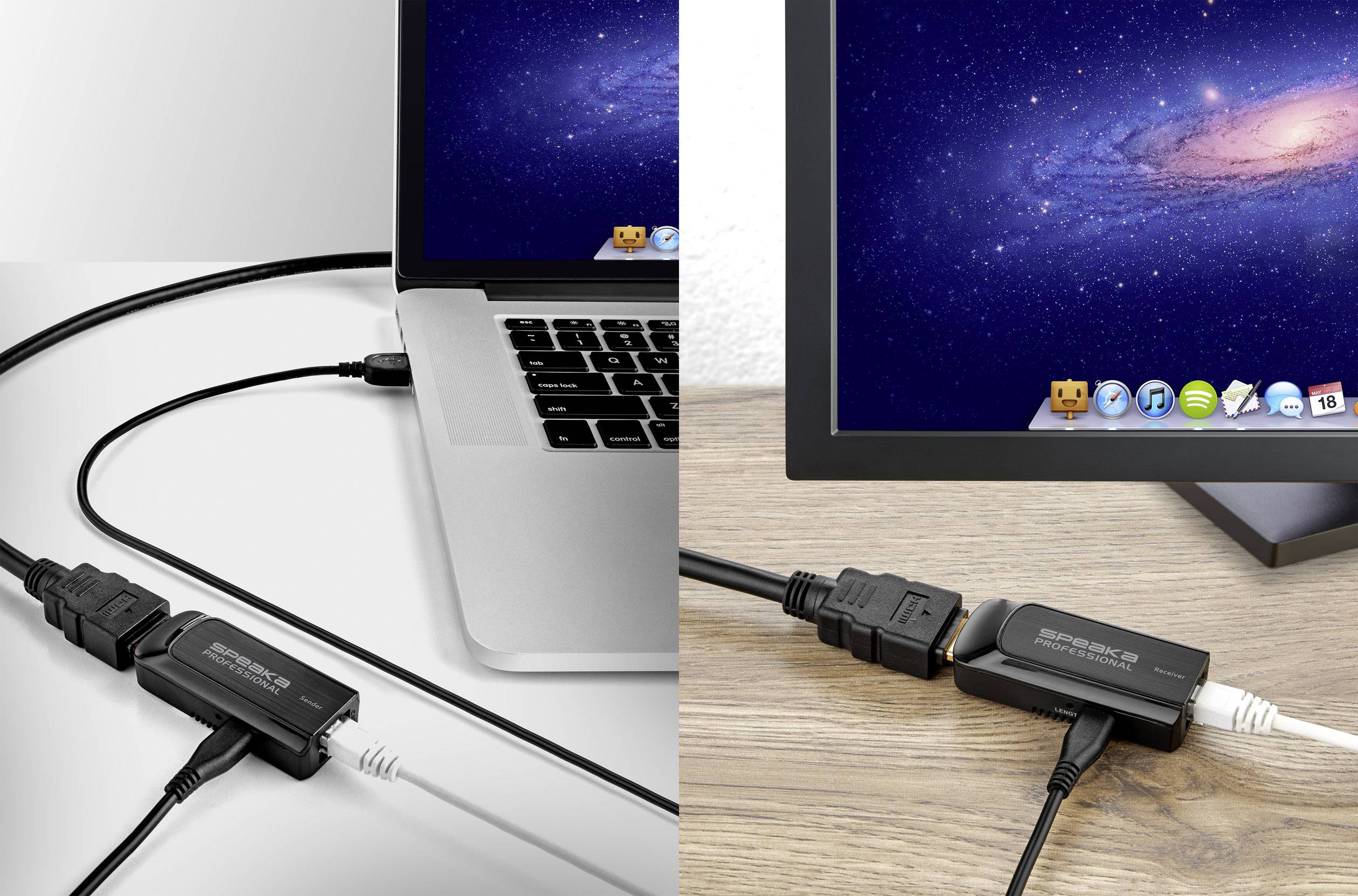

Place your TV device where it is needed. For example, on the terrace to the cozy television. Or check your machines and the production on a remote monitor in the office.
Notes:
- Use highly flexible network cable, this can be easily across the room or under carpet laying and are thus almost invisible.
- Multiple outlet strip: on the terrace or in the garden are at least 2 sockets are needed, for TV and the HDMI/Network receiver.
This text is machine translated.
HDMI cables are limited in their length. As an alternative, a cost-effective network cable can be used to extend the VGA signal. You can extend the length to up to 50 m. Simply connect a HDMI source is connected to the transmitter. The network cable connects the transmitter and receiver. You can access it easily and comfortably the HDMI signal at the receiver and enter this on a monitor.
No loss of the signal.
Compared to expensive HDMI radio transmissions, there is a further advantage: there are no signal loss through walls or other interference.
HDMI - wherever you want it
Place your TV device where it is needed. For example, on the terrace to the cozy television. Or check your machines and the production on a remote monitor in the office.
Notes:
- Use highly flexible network cable, this can be easily across the room or under carpet laying and are thus almost invisible.
- Multiple outlet strip: on the terrace or in the garden are at least 2 sockets are needed, for TV and the HDMI/Network receiver.
This text is machine translated.
Features
- Supported resolutions: 480 i@60Hz, 480p @ 60Hz, 576i@50Hz, 576p @ 50Hz, 720p at 50 / 60 Hz, 1080i @ 50 / 60 Hz, 1080p @ 50 / 60 Hz
- Supported audio format: Stereo Audio (R/L)
- Maximum transfer rate: 10.2 GBit/s
- TMDS-Signal: 0.5 ~ 1.5Vp-p (TMDS)
- DDC Signal: 5 Vp-p (TTL)
- Supported Input & Output cable length: 5 m max. (AWG 26)
- HDCP 1.2
- Plug & Play - no drivers installation required
Scope of delivery
- HDMI-transmitter
- HDMI-receiver
- 2x USB power cable (1 m)
- User manual
Hints
Use highly flexible network cables. These can be easily laid across the room or under the carpet and are thus almost invisible.
On the terrace or in the garden at least two sockets are needed, for TV and the HDMI Extender.
