SpeaKa Professional SP-HDS-QMV100 4 ports HDMI quad multi viewer + remote control Full HD 1080p @ 60 Hz
EAN:
Part number:
Item no:
Total (€ 75.62 / piece)
€ 75.62
plus VAT.
14-day return policy included
Highlights & Details
SpeaKa Professional 4 Port HDMI Quad multi-viewer
- Shows the input signal from multiple sources on a screen
- Supports resolutions up to 1920 x 1080 pixels @ 60 Hz (Full HD)
- Comfortable switching with remote control
- Control and monitoring thanks to RS232 interface
- Ideal for wall or table mounting
Technical specifications
- Operating frequency: vertical frequency range: 50 / 60 Hz, Video amplifier bandwidth 2.25 Gbps
- Input resolution: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50/60Hz, 1080i @ 50/60Hz, 1080p @ 24/25/30/50/60Hz
- Output resolution: 720p @ 60Hz, 1080p @ 60Hz
- Product type
HDMI quad multi viewer
- Supported monitors
1
- Interfaces (input)
RS232
HDMI™
- Interfaces (output)
HDMI™
- No. of inputs
4 x
- No. of outputs
1 x
- Switch function
Key
- Resolution (max.)
1920 x 1080 p
- Distributor/switch features
+ remote control
- Factory colour
Black
- Power supply (LOV)
via PSU
- Width
14.85 cm
- Height
2.15 cm
- Depth
10.3 cm
- Weight
342 g
- Resolutions (max.)
Full HD 1080p @ 60 Hz
- Port
4 ports
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1642716 SpeaKa Professional SP-HDS-QMV100 4 ports HDMI quad multi viewer + remote control Full HD 1080p @ 60 Hz
Download
Download 1642716 SpeaKa Professional SP-HDS-QMV100 4 ports HDMI quad multi viewer + remote control Full HD 1080p @ 60 Hz
Description

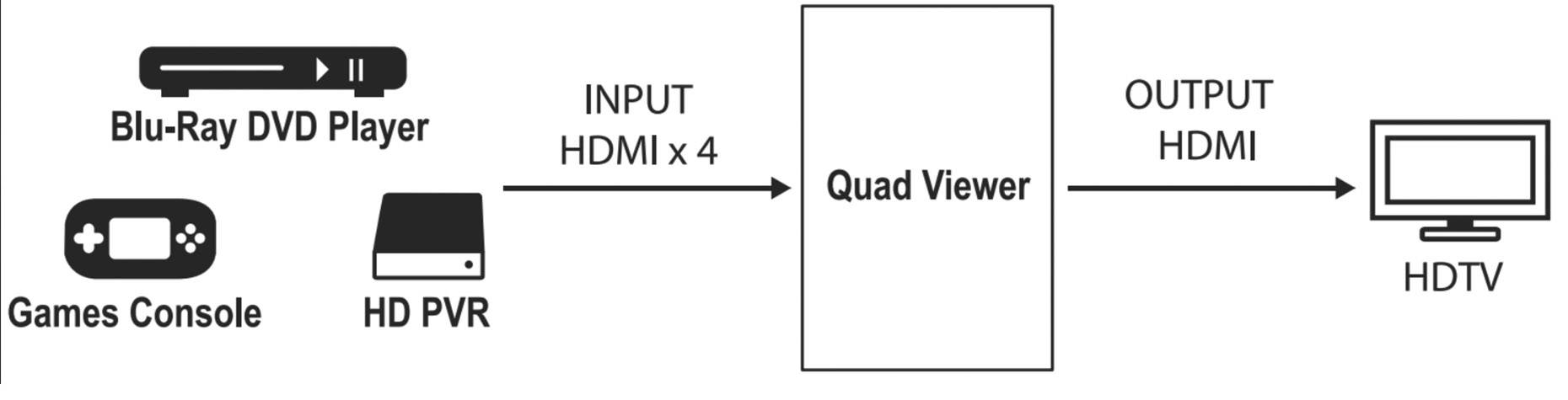

No matter whether for professional surveillance systems, trade fairs and also in the living room: often need to be on a screen several input signals of different devices can be displayed at the same time. The SpeaKa Professional 4 Port HDMI Quad multi-viewer connect up to four input devices, such as a DVD player, Blu-ray player, game console, receiver, etc. to and transfer the input signals to a screen.
Different video display modes for every application
Display input 1 and 2 or 3 and 4 side-by-side

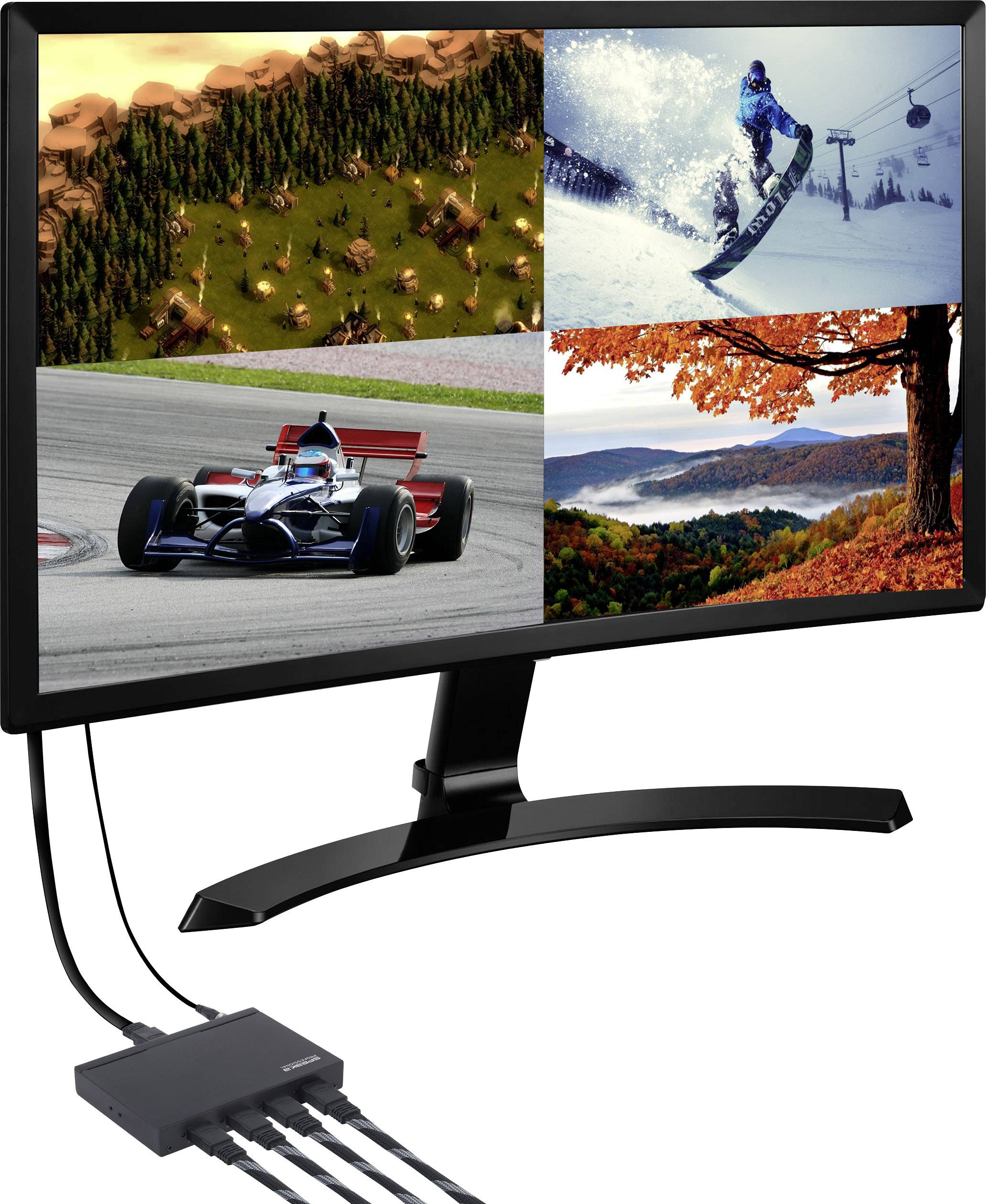

Simultaneous display of all four inputs
Simultaneous H-formed display of all four inputs
Image display 1 x large/3 x small in different configurations (picture-in-picture)
- The full-frame representation of every input
Switching Devices Made Easy

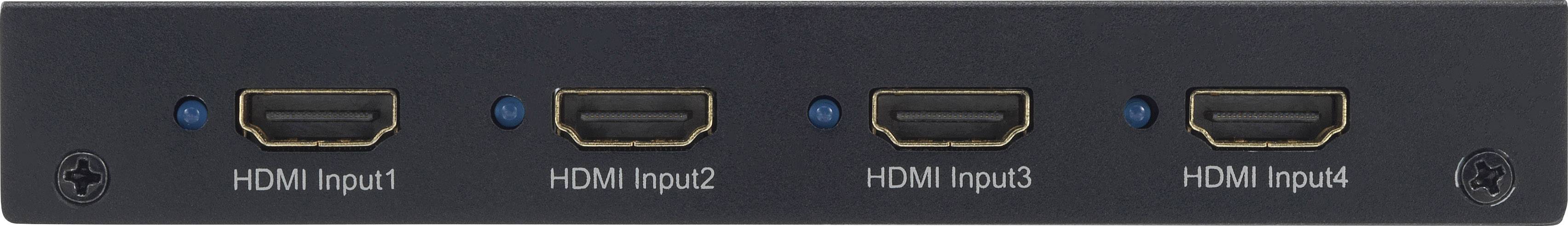

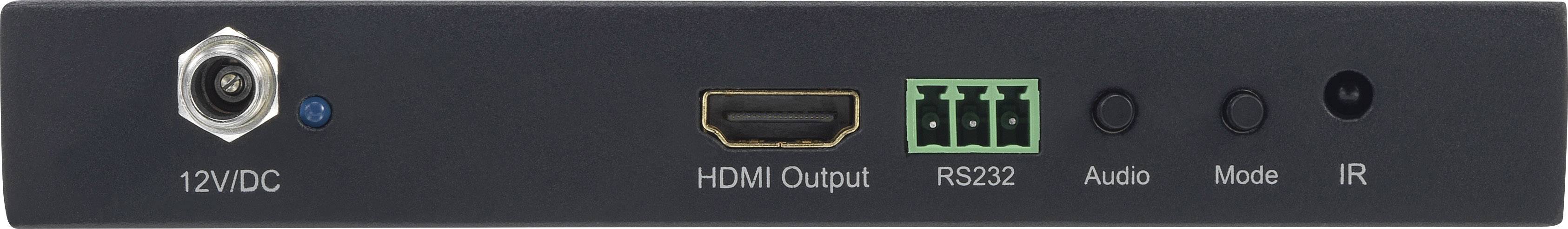

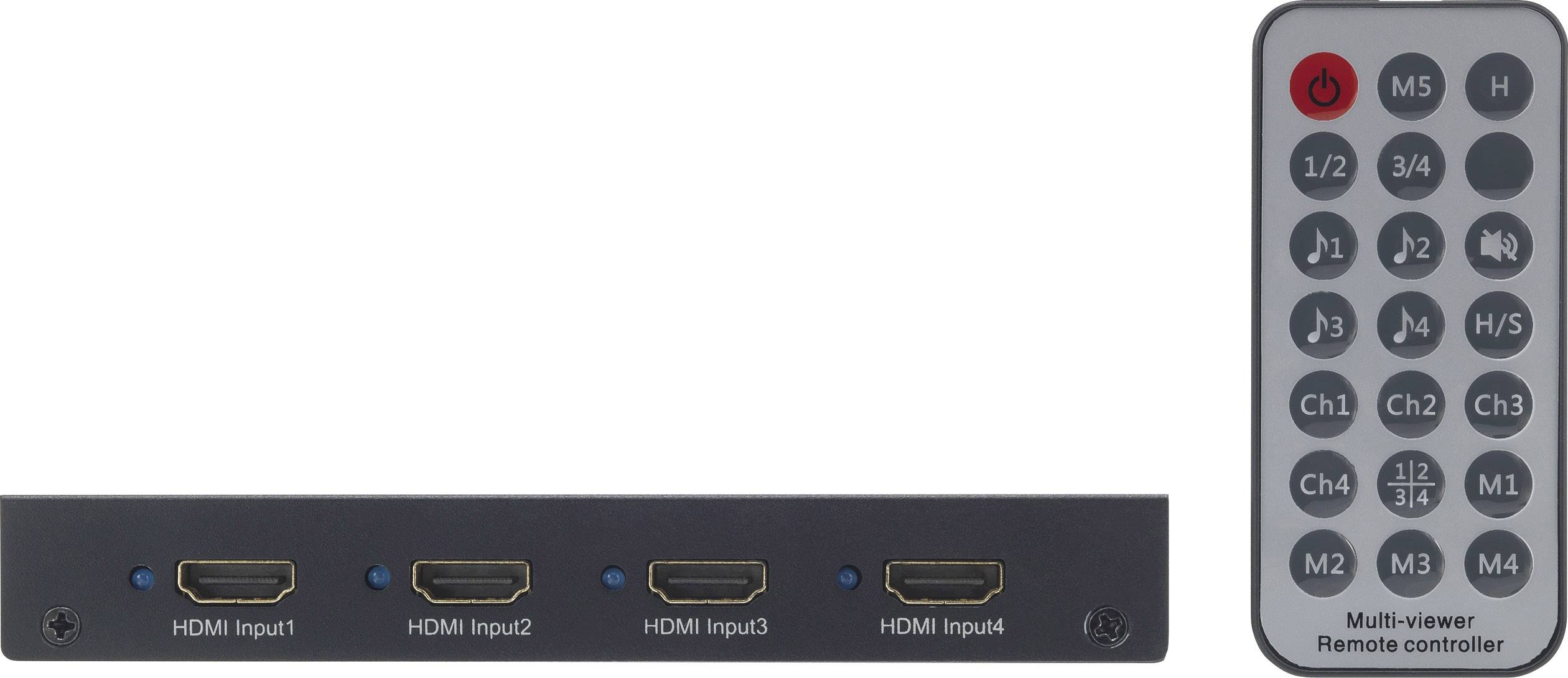

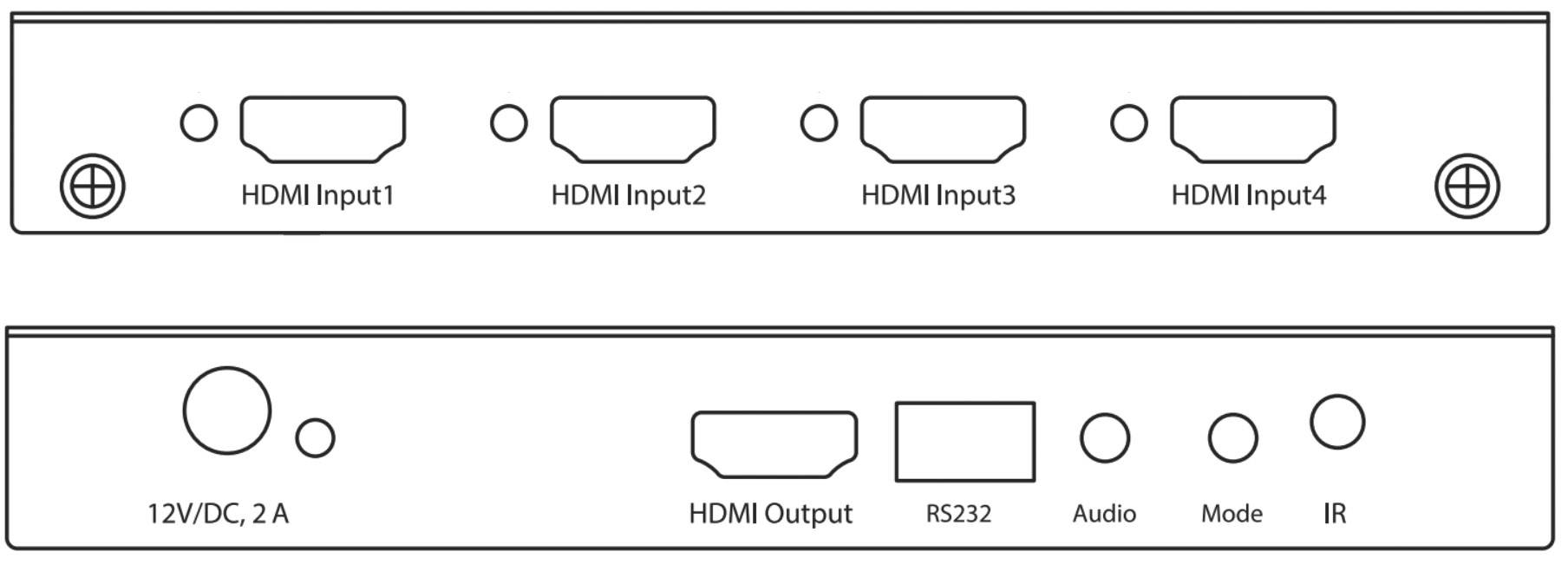

This smart switch feeds signals from different HDMI inputs into a high-resolution HDMI screen or projector. Use the selector on the front panel or the included remote control to switch between different HDMI devices.
Built-in HDready/Full HD Scaler
So that you do not have to give the older devices not to HD-quality is also in the switch on scaler integrated. This expects the input signal into high-resolution HD ready (720p) or full HD (1080p). Your desired resolution you can select by pressing the button on the switch.
Additional control and monitoring of the HDMI devices

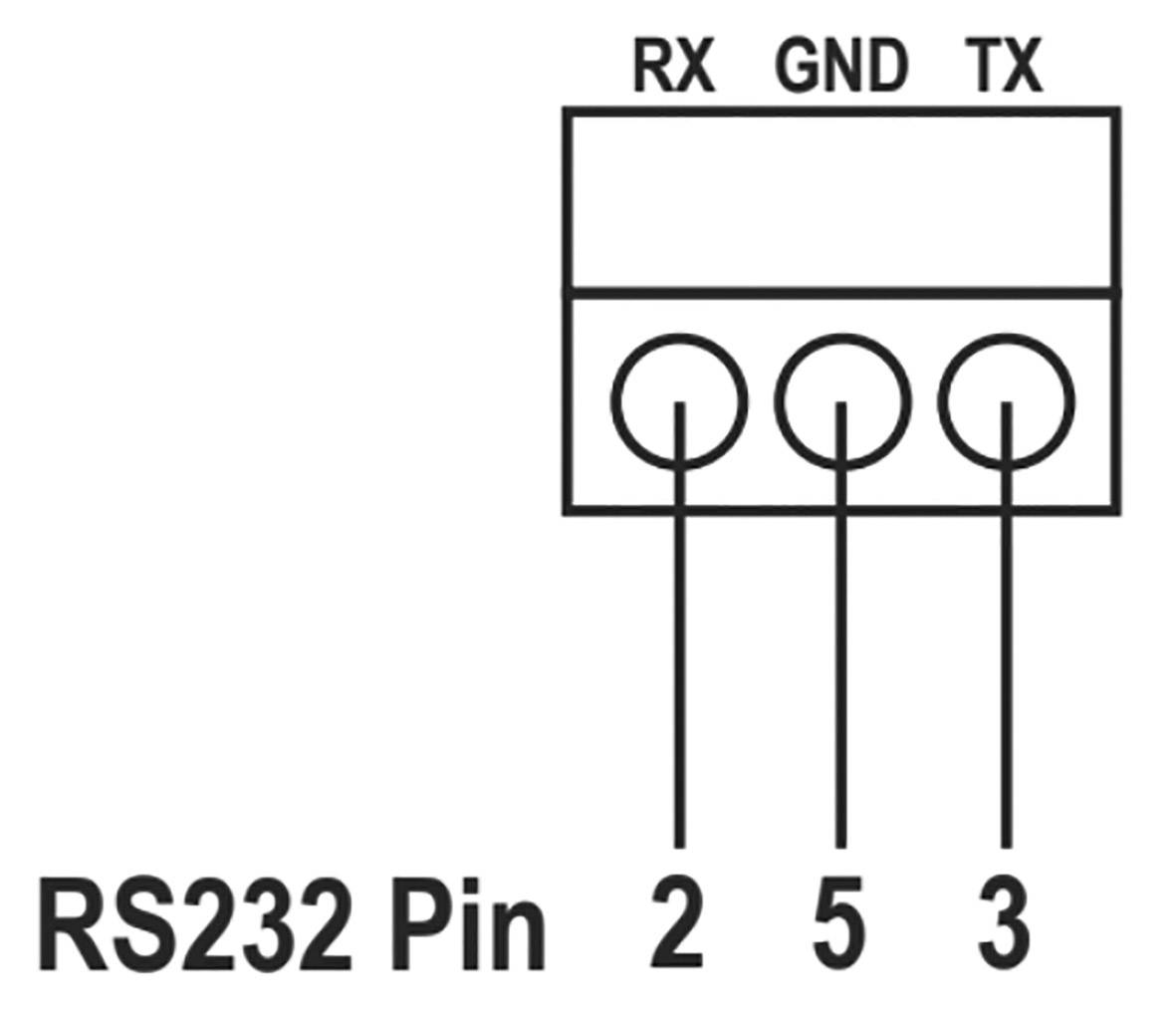

Thanks to the built-in RS232-interface to the Quad multi-viewer you can communicate with each HDMI source device and it additionally monitor and control.
Suitable for wall/Tischmonage
With its robust metal casing and its stable support provides the HDMI Quad multi-viewer versatile mounting options for table and wall. This creates order at the work place.
This text is machine translated.
Different video display modes for every application
Display input 1 and 2 or 3 and 4 side-by-side
Simultaneous display of all four inputs
Simultaneous H-formed display of all four inputs
Image display 1 x large/3 x small in different configurations (picture-in-picture)
- The full-frame representation of every input
Switching Devices Made Easy
This smart switch feeds signals from different HDMI inputs into a high-resolution HDMI screen or projector. Use the selector on the front panel or the included remote control to switch between different HDMI devices.
Built-in HDready/Full HD Scaler
So that you do not have to give the older devices not to HD-quality is also in the switch on scaler integrated. This expects the input signal into high-resolution HD ready (720p) or full HD (1080p). Your desired resolution you can select by pressing the button on the switch.
Additional control and monitoring of the HDMI devices
Thanks to the built-in RS232-interface to the Quad multi-viewer you can communicate with each HDMI source device and it additionally monitor and control.
Suitable for wall/Tischmonage
With its robust metal casing and its stable support provides the HDMI Quad multi-viewer versatile mounting options for table and wall. This creates order at the work place.
This text is machine translated.
Features
- Up- and downscale function
- Compatible up to HDCP 1.2
Scope of delivery
- Quad Multiviewer
- 4x rubber feet
- 2 x mounting brackets with screws
- Adapter plugs for RS232 interface
- Remote control (incl. CR2025 button cell)
- 12V / 2A power supply unit
- User manual.
