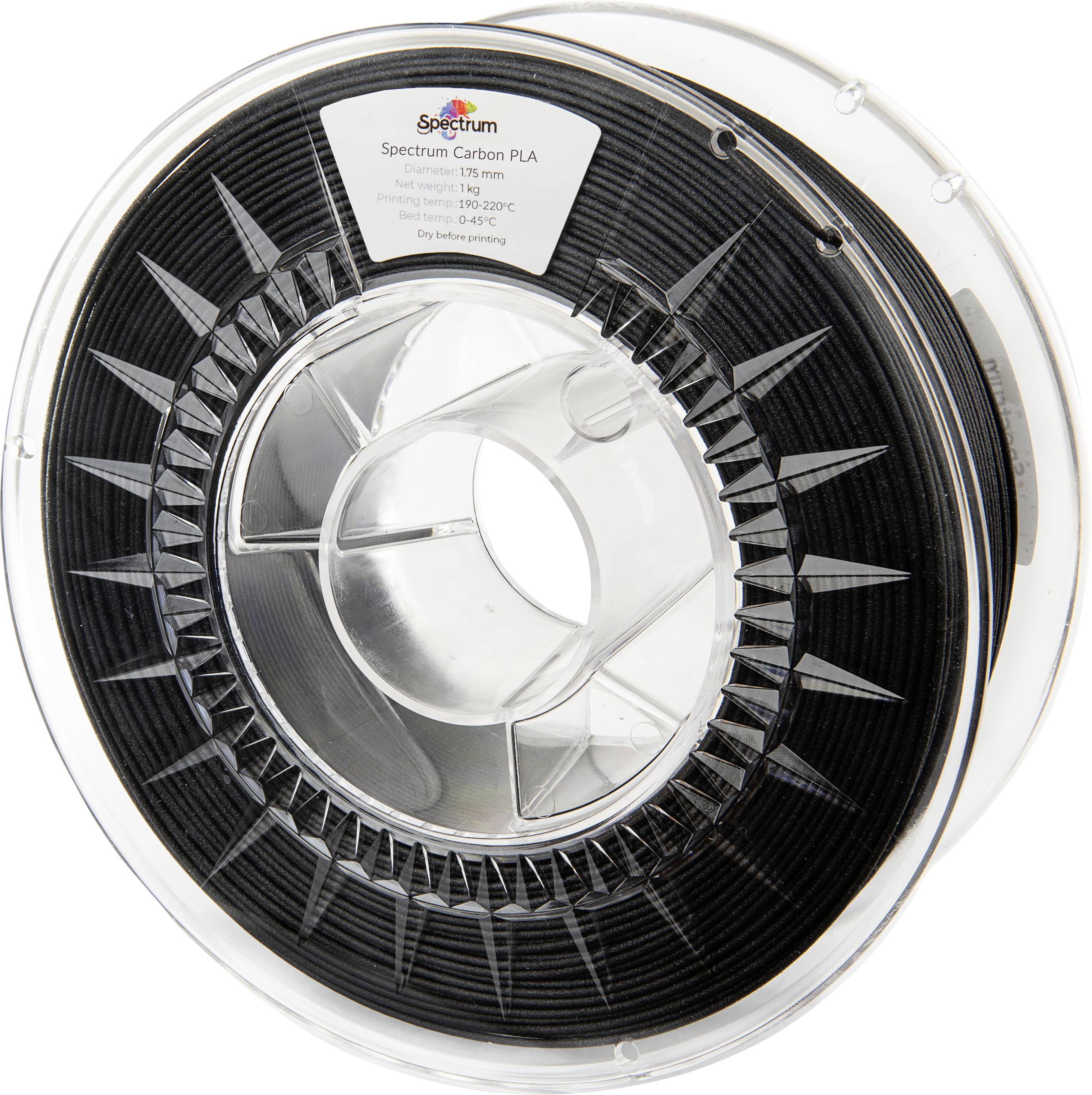

Spectrum Filaments 80466 PLA Carbon Filament PLA-CF Carbonfibre reinforced, Matt 1.75 mm 1000 g Black 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (1 kg = € 50.41)
€ 50.41
plus VAT.
Only 1 Piece(s) available
Highlights & Details
Filament spectrum PLA carbon 1.75mm 1kg
- Increased hardness and strength as compared to pure PLA,
- Increased plasticizing temperature
- Increased resistance to abrasive wear of the printed component
- Considerably increased pressure strength
- Excellent lamination of the layers
- Matt pressure surface
- No shrinking
Technical specifications
- Heated bed 0 - 45˚C
- Product type
Filament
- Filament material
PLA-CF
- Filament properties
Carbonfibre reinforced
Matt
- Filament Ø
1.75 mm
- Filament colour
Black
- Heated bed required
Yes
- Printing temperature (min.)
190 °C
- Max. printing temperature
220 °C
- Weight
1000 g
- Content
1 pc(s)
- Width
1.75 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3214166 Spectrum Filaments 80466 PLA Carbon Filament PLA-CF Carbonfibre reinforced, Matt 1.75 mm 1000 g Black 1 pc(s)
Description
Increased hardness and strength
Spectrum Carbon PLA is a modified PLA filament with 10 % carbon fiber. The printer features enhanced resistance, hardness and tensile strength, low shrinkage and excellent adhesion to the hot bed. The carbon fiber additive gives the manufactured elements a matt surface, which significantly increases the aesthetic quality of the printed elements.
Uses:
The unique properties of Carbon PLA enable it to be used in the production of components that require high strength and hardness while maintaining dimensional stability. Most often, it is the manufacture of spacers that are exposed to static pressure. In addition, the enhanced aesthetic quality of the finished elements allows the use of this material for the production of decorative parts and exterior elements of the design that highlight the design of the product or its prototype.
Note: Due to the high carbon fiber content, it is recommended to use nozzles with a diameter greater than the standard diameter of 0.4 mm. In addition, the presence of carbon fibers can lead to the degradation of standard brass nozzles. Therefore, hardened steel or ruby nozzles are recommended for the long-term use of Spectrum Carbon PLA.
This text is machine translated.
Spectrum Carbon PLA is a modified PLA filament with 10 % carbon fiber. The printer features enhanced resistance, hardness and tensile strength, low shrinkage and excellent adhesion to the hot bed. The carbon fiber additive gives the manufactured elements a matt surface, which significantly increases the aesthetic quality of the printed elements.
Uses:
The unique properties of Carbon PLA enable it to be used in the production of components that require high strength and hardness while maintaining dimensional stability. Most often, it is the manufacture of spacers that are exposed to static pressure. In addition, the enhanced aesthetic quality of the finished elements allows the use of this material for the production of decorative parts and exterior elements of the design that highlight the design of the product or its prototype.
Note: Due to the high carbon fiber content, it is recommended to use nozzles with a diameter greater than the standard diameter of 0.4 mm. In addition, the presence of carbon fibers can lead to the degradation of standard brass nozzles. Therefore, hardened steel or ruby nozzles are recommended for the long-term use of Spectrum Carbon PLA.
This text is machine translated.
Hints
Due to the high carbon fiber content, it is recommended to use nozzles with a diameter greater than the standard diameter of 0.4 mm. In addition, the presence of carbon fibers can lead to the degradation of standard brass nozzles. Therefore, hardened steel or ruby nozzles are recommended for the long-term use of Spectrum Carbon PLA.
