Spectrum Filaments 80583 PA6 Neat Filament PA6 heat-resistant, Creep strength, chemical-resistant, high stiffness 1.75 m
EAN:
Part number:
Item no:
Highlights & Details

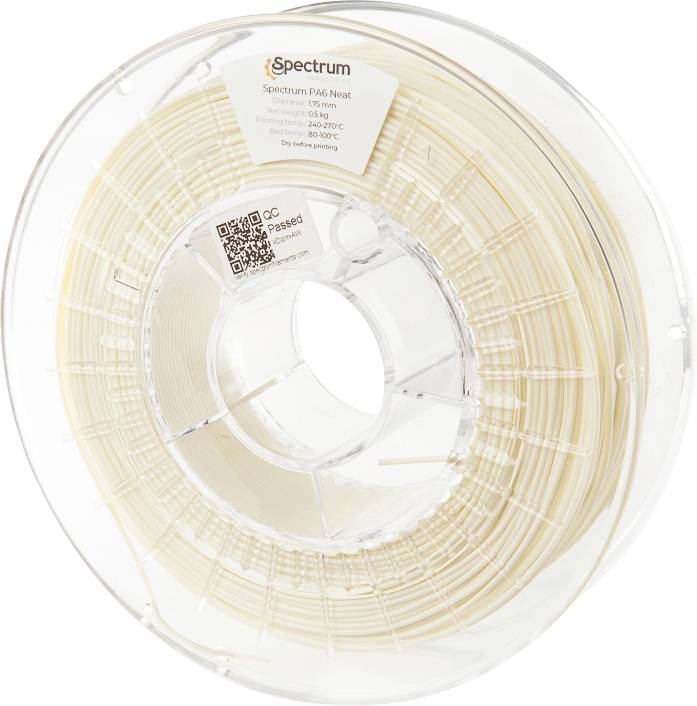

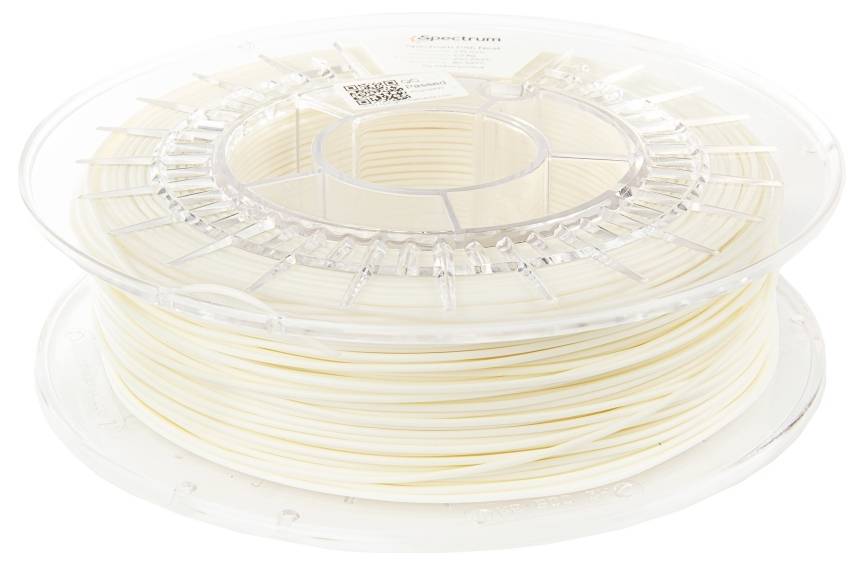

Spectrum PA6 NEAT NT natural 1.75 mm 750g - high-functional polyamide
- Low processing shrinkage (linear) up to 0.3%
- High temperature resistance up to 160 °C for short-term operation (max. 200h)
- Very high temperature resistance up to 120°C for long-term operation (20,000 h)
- HEAT DEFORMATION TEMPERATURE - HDT A 90°C (ISO 75)
- Water absorption below 0.3% (23°C/24h)
- High abrasion resistance
- High hardness and strength of the finished elements
- Good tribological properties, even under conditions of dry friction, as it occurs in maintenance-free plain bearings
- Chemical resistance to lubricants and oils
- Very strong lamination of the layers
Technical specifications
- Product type
Filament
- Filament material
PA6
- Filament properties
heat-resistant
Creep strength
chemical-resistant
high stiffness
- Filament Ø
1.75 mm
- Filament colour
Ecru
- Heated bed required
Yes
- Printing temperature (min.)
250 °C
- Max. printing temperature
280 °C
- Weight
750 g
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3461783 Spectrum Filaments 80583 PA6 Neat Filament PA6 heat-resistant, Creep strength, chemical-resistant, high stiffness 1.75 m
Description
High-functional polyamide
Filament Spectrum PA6 NEAT BK is manufactured with LUVOCOM 3F PAHT 9936 BK. The filament quality has been thoroughly tested and is certified by Lehmann&Voss&Co KG.
Spectrum PA6 NEAT BK (manufactured with LUVOCOM 3F PAHT® 9936 BK) is a new, highly functional filament based on polyamide 6 in black. The main feature of PA6 Neat is its increased mechanical strength compared to other plastics. The material also has exceptional thermal properties, chemical resistance and relatively high corrosion resistance.
Spectrum PA6 NEAT BK (manufactured with LUVOCOM 3F PAHT 9936 BK) enables long-term (20.000h) operation at a temperature of 120 °C while maintaining sufficient mechanical properties. PA6 NEAT is characterized by a low processing shrinkage (0.3%) and a reduced moisture absorption coefficient (less than 0.3% 23°C/24h). The above properties make it an ideal filament for a professional user to create lasting printouts.
Uses:
- Production of parts for final consumption
- Functional initial production
- Industrial modeling
- All types of sealing rings and sealing plates with increased chemical and corrosion resistance
- Manufacture of gear wheels and slats, plain bearings, scrapers and guide rollers which operate in the long term at elevated temperatures of up to 120°C and up to 160°C at short notice
This text is machine translated.
Filament Spectrum PA6 NEAT BK is manufactured with LUVOCOM 3F PAHT 9936 BK. The filament quality has been thoroughly tested and is certified by Lehmann&Voss&Co KG.
Spectrum PA6 NEAT BK (manufactured with LUVOCOM 3F PAHT® 9936 BK) is a new, highly functional filament based on polyamide 6 in black. The main feature of PA6 Neat is its increased mechanical strength compared to other plastics. The material also has exceptional thermal properties, chemical resistance and relatively high corrosion resistance.
Spectrum PA6 NEAT BK (manufactured with LUVOCOM 3F PAHT 9936 BK) enables long-term (20.000h) operation at a temperature of 120 °C while maintaining sufficient mechanical properties. PA6 NEAT is characterized by a low processing shrinkage (0.3%) and a reduced moisture absorption coefficient (less than 0.3% 23°C/24h). The above properties make it an ideal filament for a professional user to create lasting printouts.
Uses:
- Production of parts for final consumption
- Functional initial production
- Industrial modeling
- All types of sealing rings and sealing plates with increased chemical and corrosion resistance
- Manufacture of gear wheels and slats, plain bearings, scrapers and guide rollers which operate in the long term at elevated temperatures of up to 120°C and up to 160°C at short notice
This text is machine translated.
Hints
From a technical point of view, the very attractive properties of Filament Spectrum PA6 Neat BK (manufactured with LUVOCOM 3F PAHT® 9936 BK) can be achieved if the basic rules for the storage of this type of material are observed (in a dry and dark place with humidity below 15%). To achieve the best possible parameters of the printed object, it is recommended to dry the material before starting work.
System requirements
- Filament dryer;enclosed space recommended for larger prints.
