Spectrum Filaments 80587 PET CF15 Filament PET CF15 (carbon) high tensile strength, Carbonfibre reinforced, Creep streng
EAN:
Part number:
Item no:
Highlights & Details

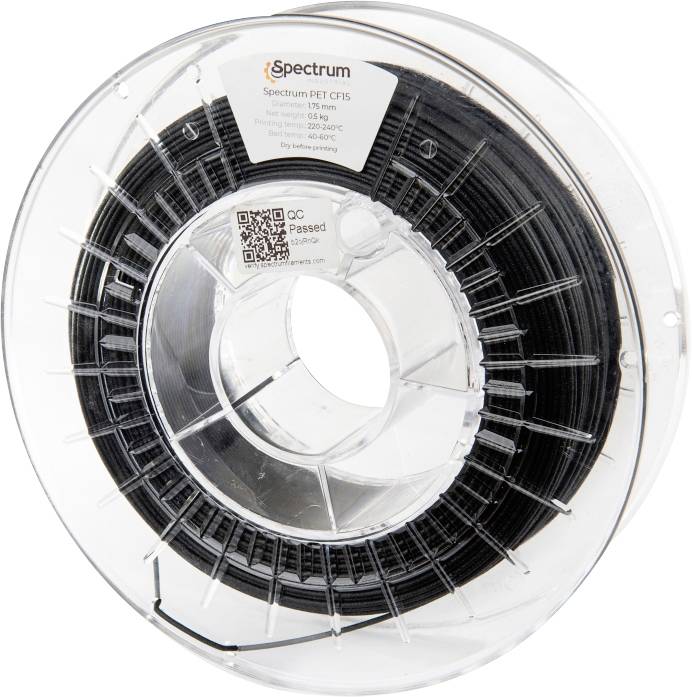

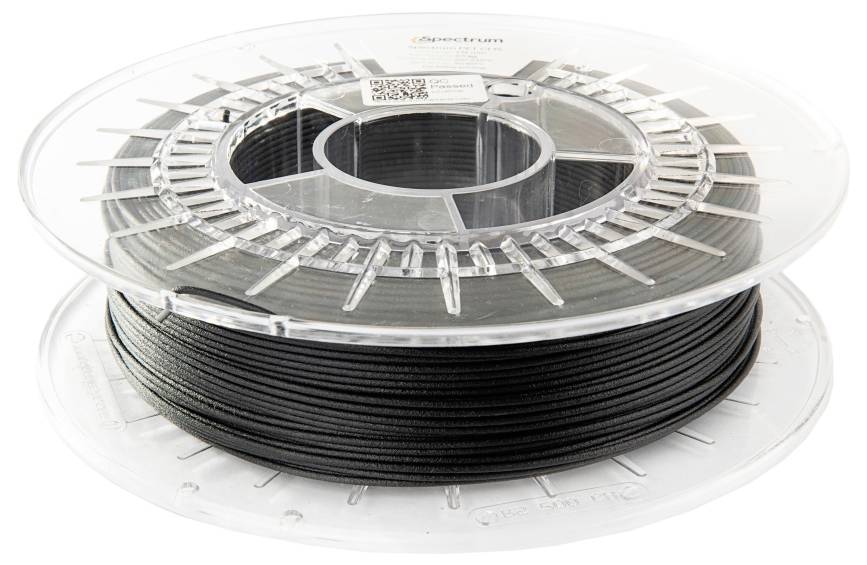

Spectrum PET CF15 1.75mm 0.75kg - very resistant and rigid
- Low processing-shrinkage (linear) 0.1%
- High temperature resistance/short-term up to (up to 125°C)
- High resistance to thermal aging
- High layer adhesion (Z-axis)
- High hardness, strength and creep resistance of the manufactured elements
- Chemical resistance to lubricants and oils
- Good tribological properties, even under conditions of dry friction, as it occurs in plain bearings
- Very strong lamination of the layers
- Excellent impact bending resistance
- Low water intake 3% (23°C / 24h)
Technical specifications
- Heated bed: 50-70°C.
- Product type
Filament
- Filament material
PET CF15 (carbon)
- Filament properties
high tensile strength
Carbonfibre reinforced
Creep strength
chemical-resistant
shatter-proof
- Filament Ø
1.75 mm
- Filament colour
Black
- Heated bed required
Yes
- Printing temperature (min.)
245 °C
- Max. printing temperature
270 °C
- Weight
750 g
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3461784 Spectrum Filaments 80587 PET CF15 Filament PET CF15 (carbon) high tensile strength, Carbonfibre reinforced, Creep streng
Description
Very durable and rigid
Filament Spectrum PET CF15 is manufactured with LUVOCOM® 3F PET CF 9780 BK. The quality of the filament is certified by Lehmann&Voss&Co KG.
Spectrum PET CF15 (manufactured with LUVOCOM® 3F PET CF 9780 BK) is a colored material based on polyethylene terephthalate (PET) in black. It is the easiest-to-print carbon fiber-filled material on the market for 3D printing and has considerably better temperature and mechanical properties than PET-G. The filament has no problems with its retention and no heating chamber is required during printing. A characteristic of the filament is an excellent surface finish immediately after the workpiece has been removed from the printer, which reduces the need for rework.
Spectrum PET CF15 (manufactured with LUVOCOM® 3F PET CF 9780 BK) is compatible with support materials such as HIPS-X. The filament allows printing process using very strong and rigid parts. It is characterized by a low influence of humidity and temperature on the dimensions.
This text is machine translated.
Filament Spectrum PET CF15 is manufactured with LUVOCOM® 3F PET CF 9780 BK. The quality of the filament is certified by Lehmann&Voss&Co KG.
Spectrum PET CF15 (manufactured with LUVOCOM® 3F PET CF 9780 BK) is a colored material based on polyethylene terephthalate (PET) in black. It is the easiest-to-print carbon fiber-filled material on the market for 3D printing and has considerably better temperature and mechanical properties than PET-G. The filament has no problems with its retention and no heating chamber is required during printing. A characteristic of the filament is an excellent surface finish immediately after the workpiece has been removed from the printer, which reduces the need for rework.
Spectrum PET CF15 (manufactured with LUVOCOM® 3F PET CF 9780 BK) is compatible with support materials such as HIPS-X. The filament allows printing process using very strong and rigid parts. It is characterized by a low influence of humidity and temperature on the dimensions.
This text is machine translated.
Hints
From a technical point of view, the very attractive properties of Filament Spectrum PET CF15 (manufactured with LUVOCOM® 3F PET CF 9780 BK) can be achieved if the basic rules for the storage of this type of material are observed (in a dry and dark place with humidity below 15%). To achieve the best possible parameters of the printed object, it is recommended to dry the material before starting work.
Note: Due to the high carbon fiber content, it is recommended to use nozzles with a diameter greater than the standard diameter of 0.4 mm. In addition, the presence of carbon fibers can lead to the degradation of standard brass nozzles. Therefore, hardened steel or ruby nozzles are recommended for the long-term use of Spectrum PET CF15 (manufactured with LUVOCOM® 3F PET CF 9780 BK)
System requirements
- Rubber nozzle or hardened nozzle
