Spelsberg 02620201 GTT 202 Switchboard cabinet Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Width
320 mm
Height
320 mm
Depth
179 mm
with PE and N terminals
Yes
Datasheet (PDF)
Number
Total (€ 306.72 / piece)
€ 306.72
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Design: With fuse switch disconnector
- Protection system: IP65
- Number of poles: 3
- Rated operating current IE 160 A.
- Max. Rated operating voltage UE: 690 V/AC
- Size of fuse links: NH00
- Product type
Switchboard cabinet
- with PE and N terminals
Yes
- Width
320 mm
- Height
320 mm
- Dim
(W x H x D) 320 x 320 x 179 mm
- Depth
179 mm
- Content
1 pc(s)
690 V
3
IP65
690 V
3R
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2379047 Spelsberg 02620201 GTT 202 Switchboard cabinet Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379047 Spelsberg 02620201 GTT 202 Switchboard cabinet Content 1 pc(s)
Description

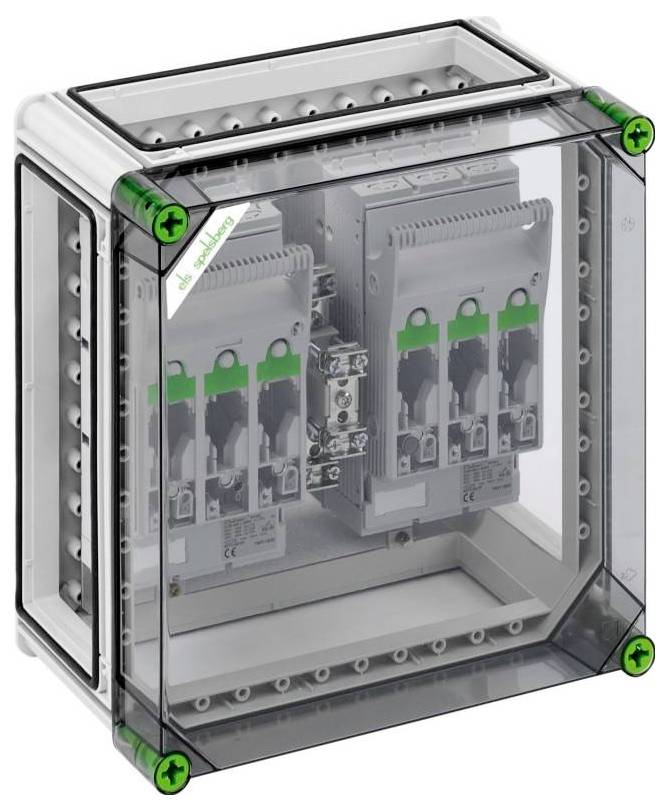

NH fuse switch disconnector housing, industrial quality, 2 x NH 00 fuse switch disconnectors, terminal connection 1.5-50qmm, PE/N terminal 2 x 50qmm, mounted on mounting plate, 3 x housing connectors (GGV), with transparent cover
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
