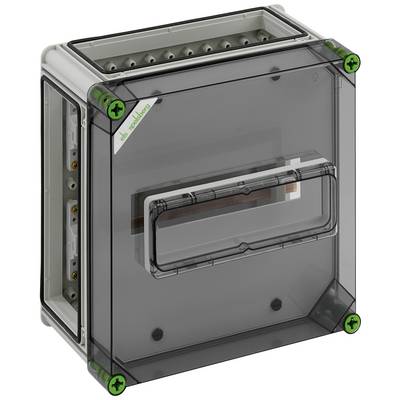

Spelsberg 04025201 GSi 252-40 Switchboard cabinet Surface-mount No. of partitions = 12 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
No. of partitions
12
Mounting type
Surface-mount
Width
320 mm
Height
320 mm
Datasheet (PDF)
Number
Total (€ 176.46 / piece)
€ 176.46
plus VAT.
Only 9 Piece(s) available
Technical specifications
- Protection system: IP65
- Number of pins: 5
- Rated current rail system 160 A.
- Material: Plastic
- Cover type: Transparent
- Product type
Switchboard cabinet
- No. of partitions
12
- with PE and N terminals
Yes
- Mounting type
Surface-mount
- Width
320 mm
- Height
320 mm
- Dim
(W x H x D) 320 x 320 x 179 mm
- Depth
179 mm
- Mounting
Busbar
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2379720 Spelsberg 04025201 GSi 252-40 Switchboard cabinet Surface-mount No. of partitions = 12 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379720 Spelsberg 04025201 GSi 252-40 Switchboard cabinet Surface-mount No. of partitions = 12 Content 1 pc(s)
Description
Busbar housing, industrial quality, 5-pin, 40mm busbar distance, with CU rails, L1...L3: 12 x 5mm, PE/N: 12 x 5mm, with 10 terminals for CU conductors 4-35qmm, with touch protection cover, with hinged window 12 TE, sealable, 1x cover strips 12TE lockable, 3 x housing connectors (GGV), with transparent cover, for individual fitting
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
