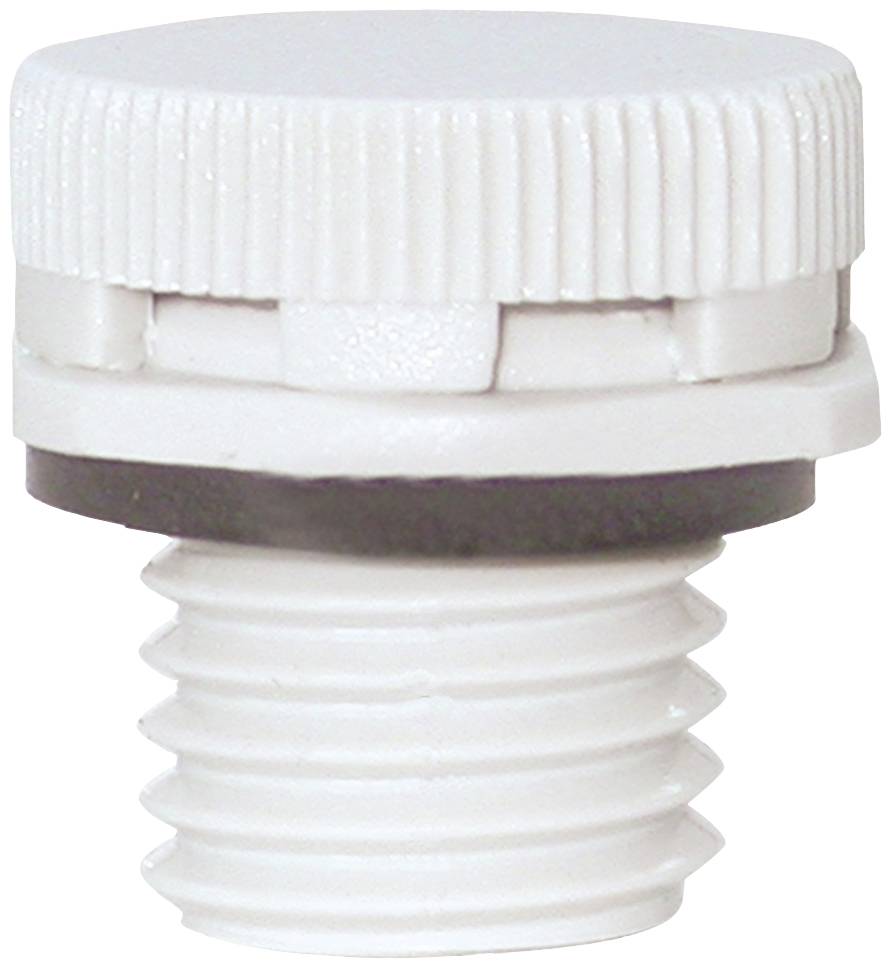

Spelsberg 26241201 Pressure compensation piece waterproof Polyamide Light grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Pressure compensation piece
Type
Ø 12 mm, closed
Material
Polyamide
Features
waterproof
Factory colour
Light grey
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 18.48
3
5% = € 0.92
€ 17.56
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 18.48 / piece)
€ 23.52
-21 %
€ 18.48
plus VAT.
Only 8 Piece(s) available
Technical specifications
- For wall thickness 0 - 10 mm
- Product type
Pressure compensation piece
- Features
waterproof
- Factory colour
Light grey
- Type
Ø 12 mm, closed
- Material
Polyamide
- Thread length
10 mm
IP65
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
26241201
- Type
DAE M12
Grey
Closed
TRUE
7035
FALSE
Other
IP65
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2379176 Spelsberg 26241201 Pressure compensation piece waterproof Polyamide Light grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379176 Spelsberg 26241201 Pressure compensation piece waterproof Polyamide Light grey 1 pc(s)
Description
Pressure compensation element with air-permeable and waterproof special membrane film for avoiding condensation formation in housings, flow rate 0.8 l/min. at 0.1 bar overpressure, polyamide, gray, M12 x 1.5 mm, thread length 10mm
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
