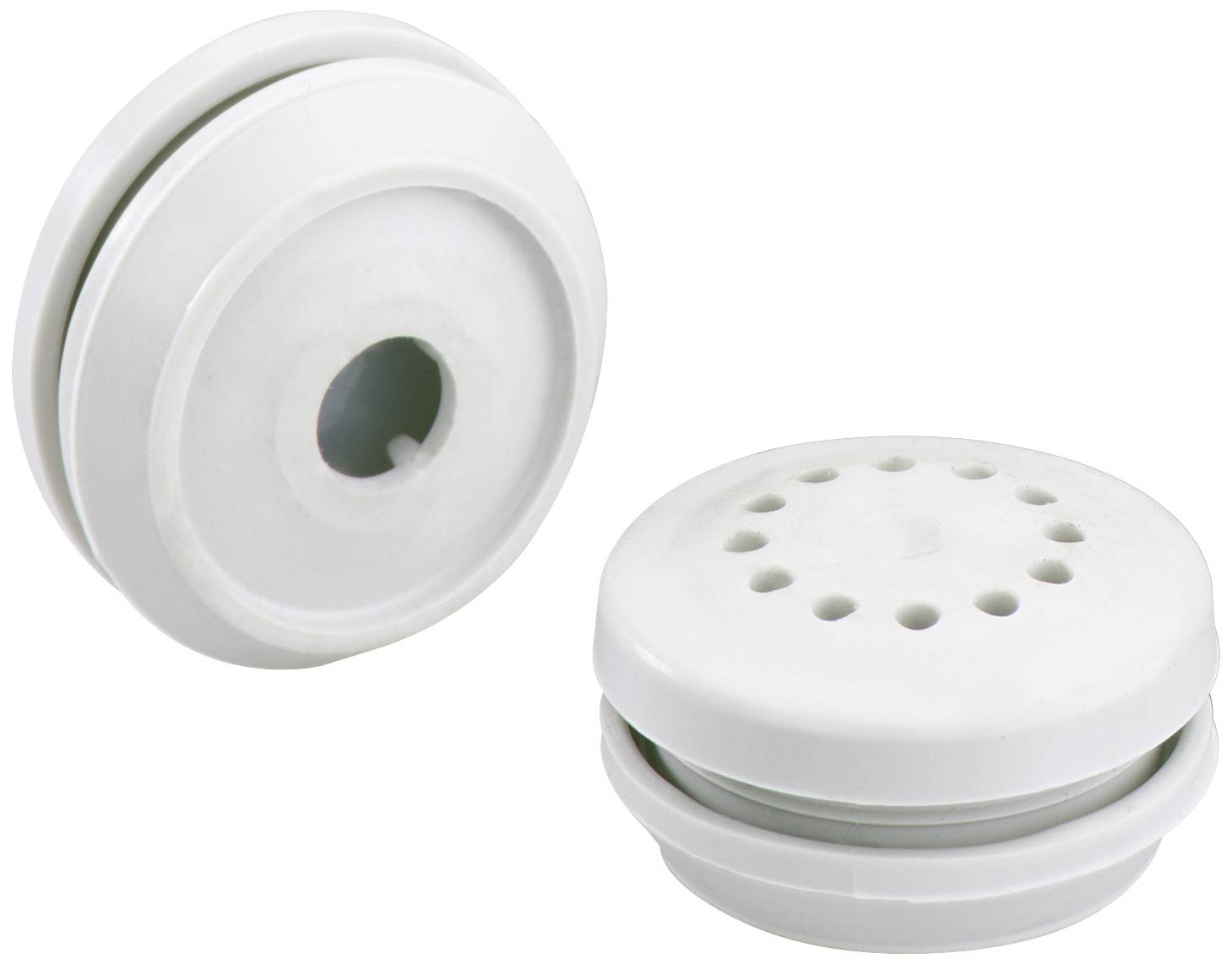

Spelsberg 26242001 Ventilation plug halogen-free Thermoplastic elastomer Light grey 1 pc(s)
EAN:
Part number:
Item no:
Product type
Ventilation plug
Type
Ø 20 mm, open
Material
Thermoplastic elastomer
Features
halogen-free
Factory colour
Light grey
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.67
10
8% = € 0.13
€ 1.54
25
11% = € 0.18
€ 1.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.67 / piece)
€ 1.67
plus VAT.
14-day return policy included
Technical specifications
- For wall thickness 1.5 - 4.5 mm
- Product type
Ventilation plug
- Features
halogen-free
- Factory colour
Light grey
- Bore diameter
20 mm
- Type
Ø 20 mm, open
- Material
Thermoplastic elastomer
IP44
- Halogen-free
Yes
- Content
1 pc(s)
- Manufacturer part #
26242001
- Type
BST M20
Grey
Open
TRUE
7035
FALSE
Other
IP44
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2379177 Spelsberg 26242001 Ventilation plug halogen-free Thermoplastic elastomer Light grey 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379177 Spelsberg 26242001 Ventilation plug halogen-free Thermoplastic elastomer Light grey 1 pc(s)
Description
Ventilation plug IP44 with labyrinth seal to prevent condensation forming in housings, flow rate 100l/min. at 0.1 bar overpressure, thermoplastic elastomer, gray, recommended installation on the housing sides left and right at different heights (see technical appendix protection against condensation water), for wall thicknesses of 1.5-4.5 mm, gray
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
