Spelsberg 2642101 GTT 421 Switchboard cabinet
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Width
320 mm
Height
640 mm
Depth
179 mm
with PE and N terminals
Yes
Datasheet (PDF)
Technical specifications
- Design: With fuse switch disconnector
- Protection system: IP65
- Number of poles: 3
- Rated operating current IE 400 A.
- Max. Rated operating voltage UE: 690 V/AC
- Size of fuse links: NH2
- Product type
Switchboard cabinet
- with PE and N terminals
Yes
- Width
320 mm
- Height
640 mm
- Dim
(W x H x D) 320 x 640 x 179 mm
- Depth
179 mm
- Content
1 pc(s)
690 V
3
IP65
690 V
3R
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2379049 Spelsberg 2642101 GTT 421 Switchboard cabinet
User & Safety Instructions
User & Safety Instructions 2379049 Spelsberg 2642101 GTT 421 Switchboard cabinet
Description

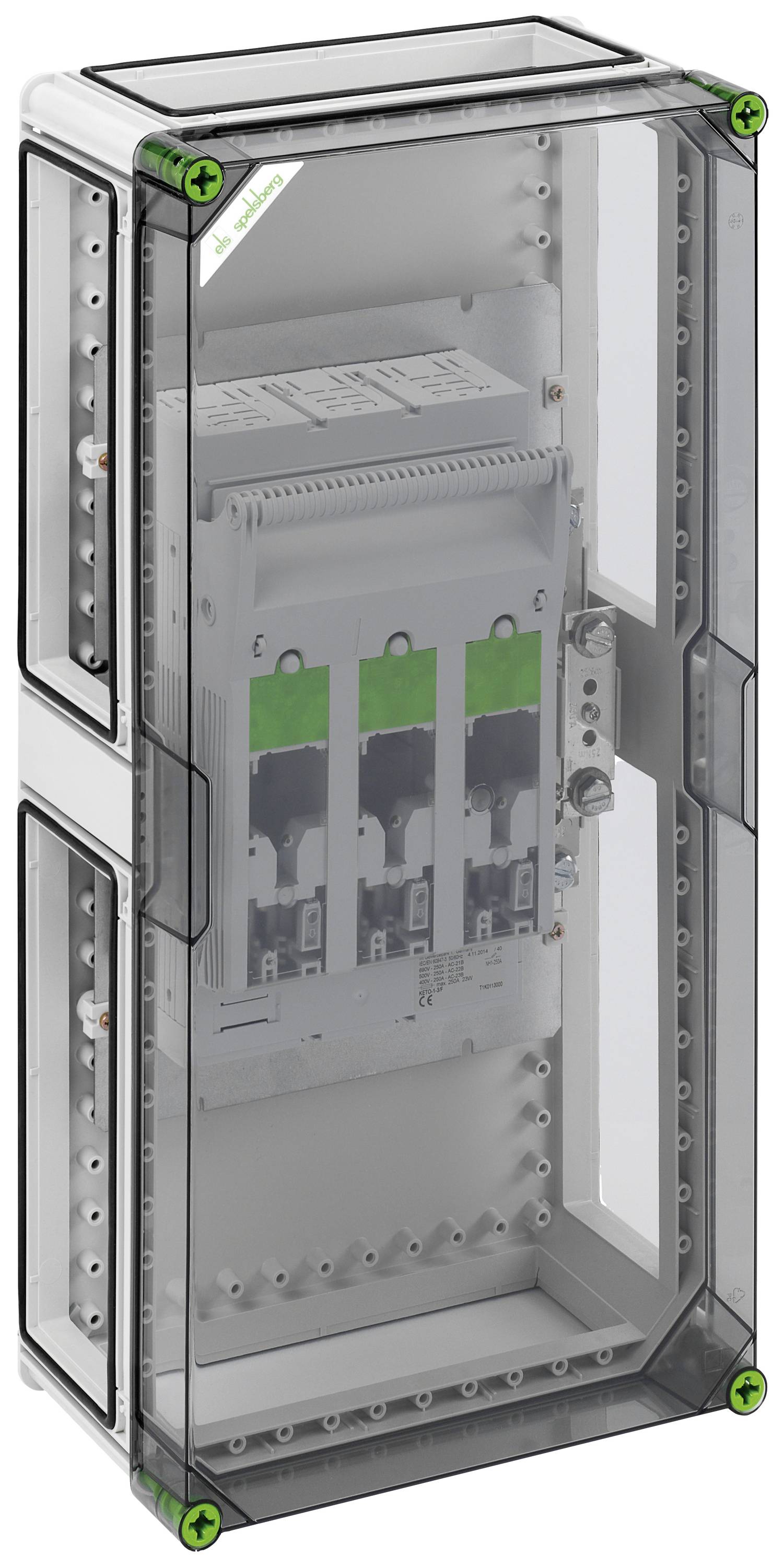

NH fuse switch disconnector housing, industrial quality, 1 x NH 2 fuse switch disconnector, M10 screw connection, M12 PE/N terminal, mounted on mounting plate, 4 x housing connectors (GGV), with transparent cover
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
