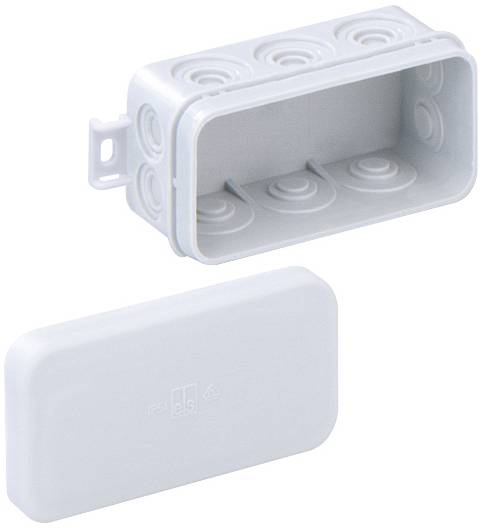

Spelsberg 31090801 Joint box (L x W x H) 43 x 89 x 38 mm Grey IP55 10 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 1.09 / piece)
€ 10.92
plus VAT.
14-day return policy included
Technical specifications
- Mounting type: Wall/ceiling mountingDesign Cover: Mounting coverRated insulation voltage UI: 400 V.Max. Conductor cross-section 2.5 mm²Operating temperature -25 °C - +40 °CNumber of introductions: 10Weather-resistant: YesPouring: Yes
- Product type
Joint box
- Factory colour
Grey
IP55
- Dim
(L x W x H) 43 x 89 x 38 mm
- Type
rectangular; untreated
- Features
Halogen-free
- Content
10 pc(s)
- Material
Plastic
- Width
89 mm
- Height
38 mm
- Length
43 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2573182 Spelsberg 31090801 Joint box (L x W x H) 43 x 89 x 38 mm Grey IP55 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2573182 Spelsberg 31090801 Joint box (L x W x H) 43 x 89 x 38 mm Grey IP55 10 pc(s)
Description
Junction box according to DIN EN 60670 (VDE 0606), 10 entries, 2 floor entries, suitable for narrow installation environments such as suspended ceilings and cable channels, with external mounting points, gray, without clamps, for VDE-zegel. Single terminals
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
