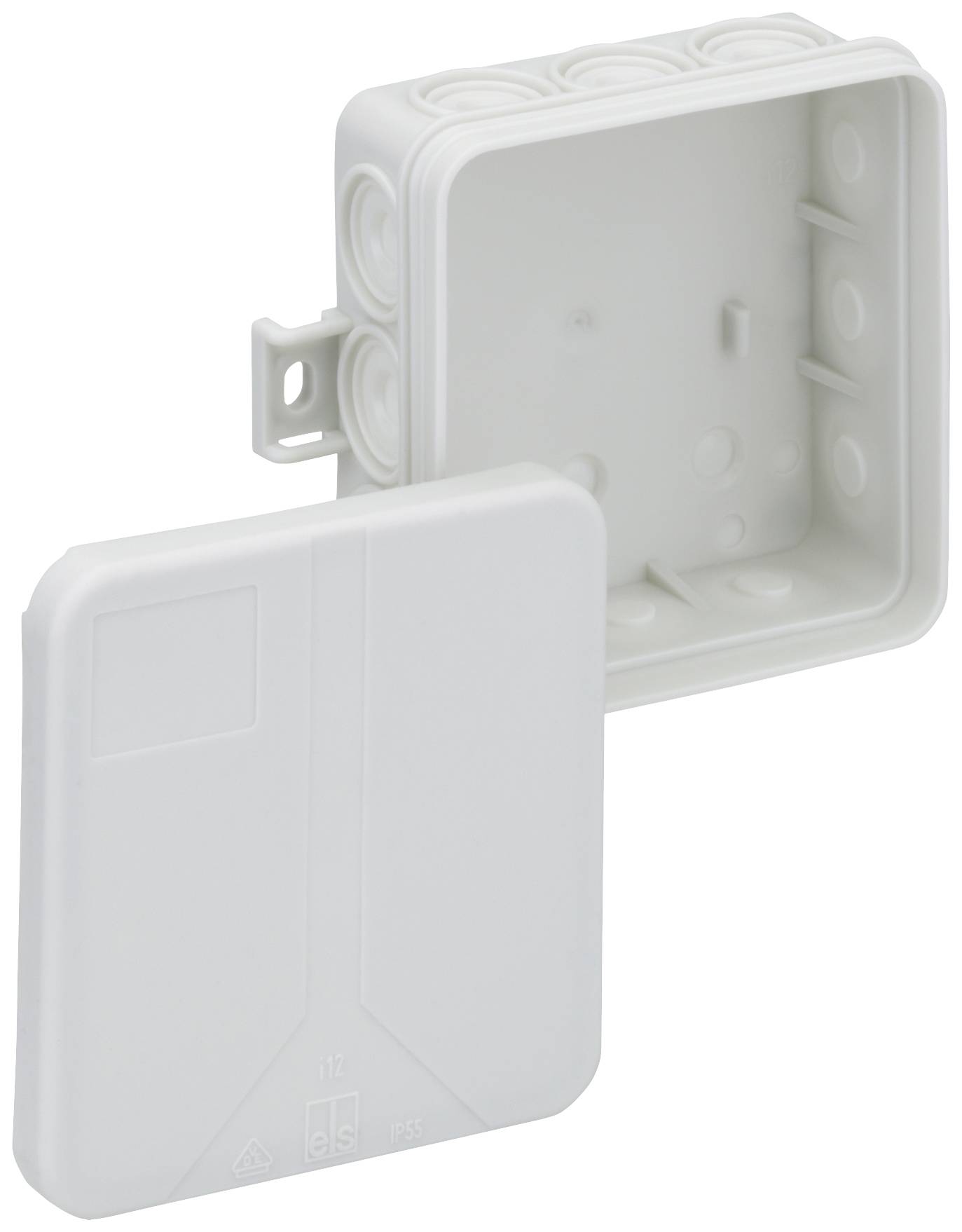

Spelsberg 33291201 Joint box (L x W x H) 85 x 85 x 37 mm Multicolour IP55 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1.25 / piece)
€ 1.25
plus VAT.
14-day return policy included
Technical specifications
- Mounting type: Wall/ceiling mounting
- Design Cover: Mounting cover
- Rated insulation voltage UI: 400 V.
- Max. Conductor cross-section 2.5 mm²
- Operating temperature -25 °C - +40 °C
- Number of introductions: 12
- Weather-resistant: Yes
- Pouring: Yes
- Product type
Joint box
- Factory colour
Multicolour
IP55
- Dim
(L x W x H) 85 x 85 x 37 mm
- Type
rectangular; untreated
- Features
Halogen-free
- Content
1 pc(s)
- Material
Plastic
- Width
85 mm
- Height
37 mm
- Length
85 mm
- Depth
37.0000 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2378398 Spelsberg 33291201 Joint box (L x W x H) 85 x 85 x 37 mm Multicolour IP55 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2378398 Spelsberg 33291201 Joint box (L x W x H) 85 x 85 x 37 mm Multicolour IP55 1 pc(s)
Description
Junction box according to DIN EN 60670 (VDE 0606), 12 inserts, 3 floor inserts, with external mounting points, gray, Without terminals, for VDE-type. Single terminals
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
