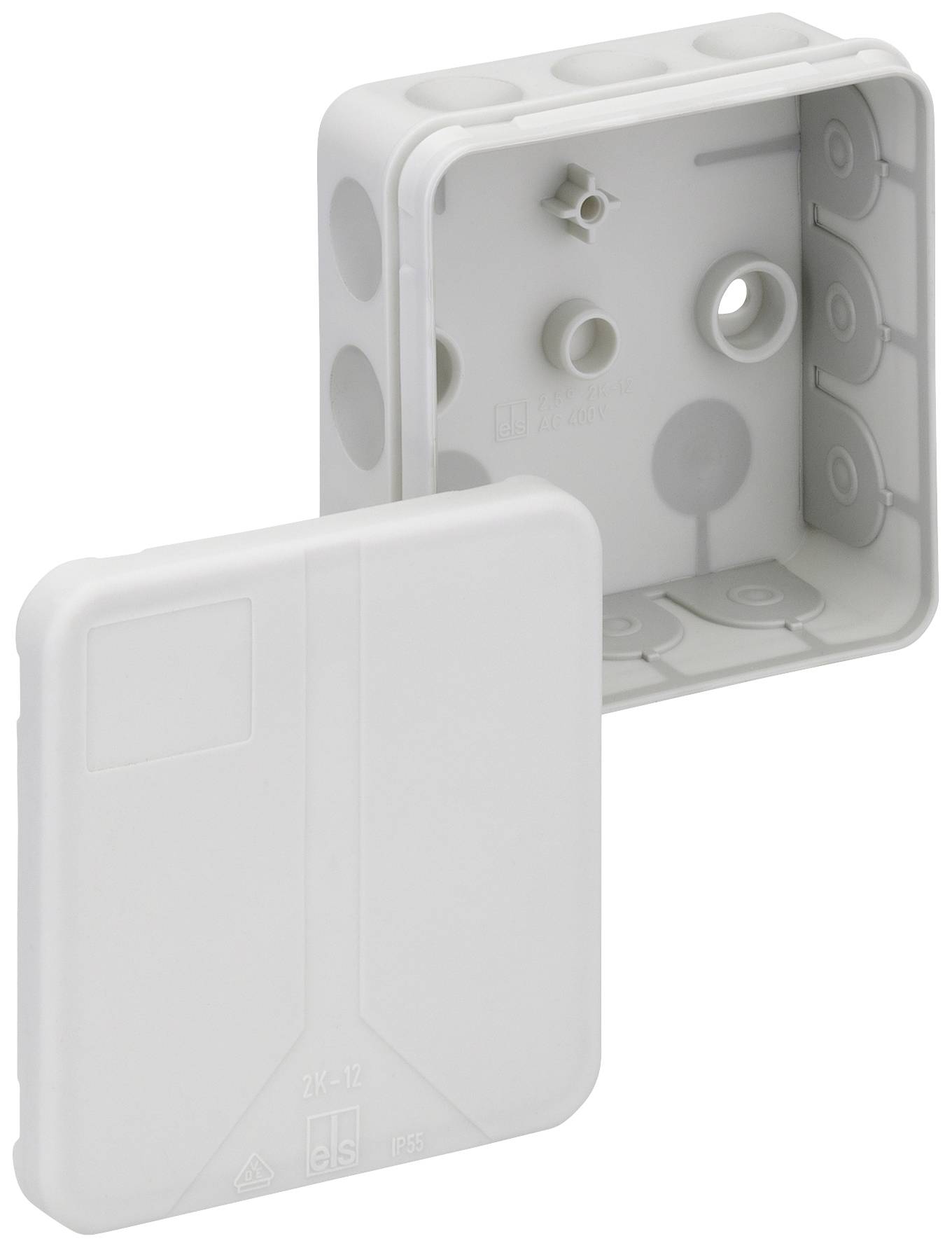

Spelsberg 34491201 Joint box (L x W x H) 85 x 85 x 37 mm Grey IP55 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.92
5
6% = € 0.12
€ 1.80
10
9% = € 0.18
€ 1.74
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 1.92 / piece)
€ 1.92
plus VAT.
14-day return policy included
Highlights & Details
Connection socket 2K-12-L
- IP55
Technical specifications
- Product type
Joint box
- Factory colour
Grey
IP55
- Dim
(L x W x H) 85 x 85 x 37 mm
- Features
Halogen-free
w/o terminal block
- Content
1 pc(s)
- Material
Polypropylene
Copolymer
- Width
85 mm
- Height
37 mm
- Length
85 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1406112 Spelsberg 34491201 Joint box (L x W x H) 85 x 85 x 37 mm Grey IP55 1 pc(s)
Datasheet 1406112 Spelsberg 34491201 Joint box (L x W x H) 85 x 85 x 37 mm Grey IP55 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1406112 Spelsberg 34491201 Joint box (L x W x H) 85 x 85 x 37 mm Grey IP55 1 pc(s)
Certificate
Certificate 1406112 Spelsberg 34491201 Joint box (L x W x H) 85 x 85 x 37 mm Grey IP55 1 pc(s)
Description
Junction box according to DIN EN 60670 (VDE 0606), 12 inserts, 2 floor inserts, with self-sealing, soft introduction membranes, tool to open the cable entry is not necessary, sealing range 2 - 14 mm, with interior attachment, with protection class IP55, up to 2,5², with degree of protection IK07, protection class II, VDE-tested, halogen-free, without terminals, for VDE-reins. Single terminals.
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
