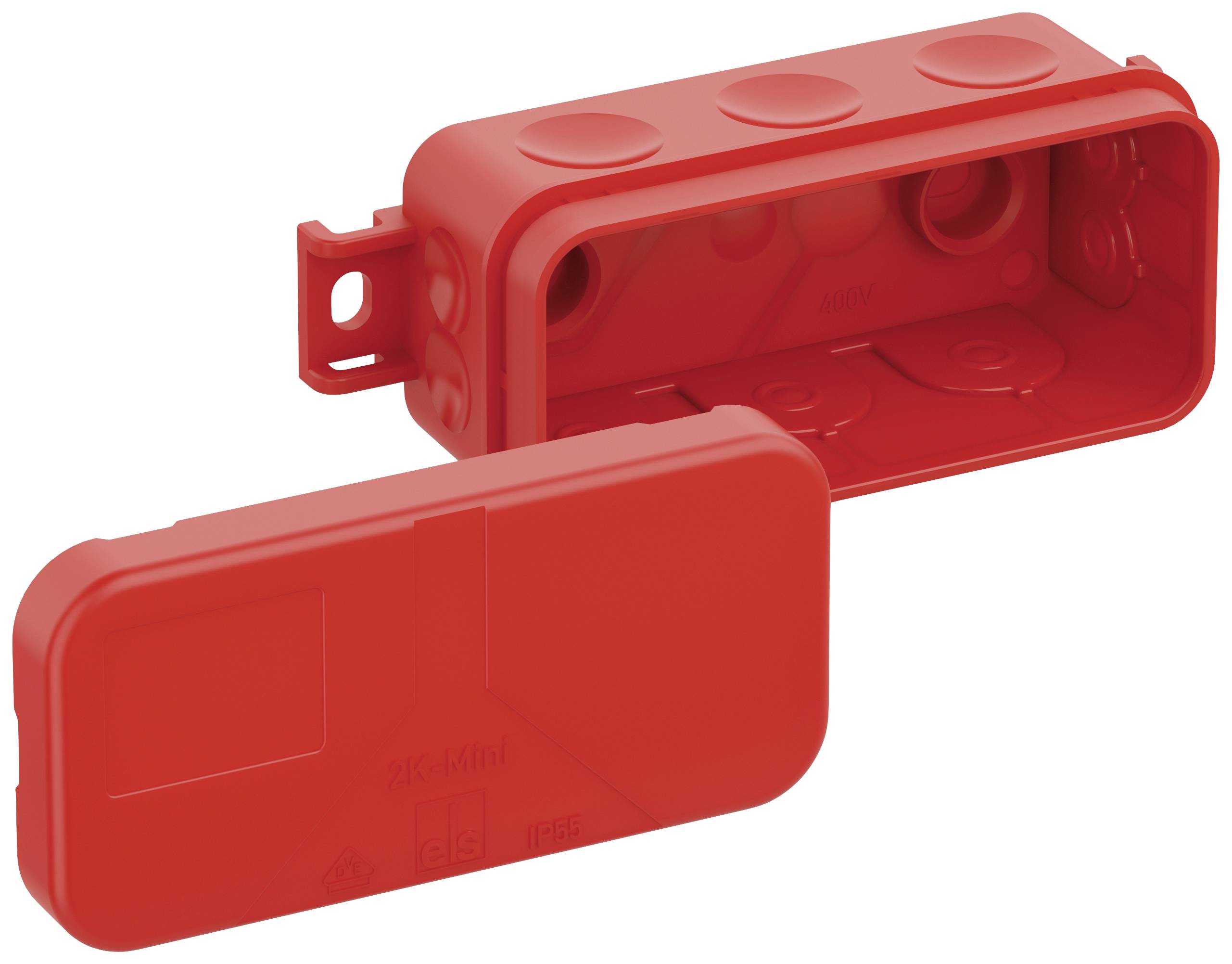

Spelsberg 34570801 Joint box (L x W x H) 43 x 89 x 38 mm Red IP55 10 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Junction box 2K-Mini FROM SB-L
- Halogen-free
- II protection rating
- Test mark VDE
- Outside mounting points
Technical specifications
- Impact strength: IK07
- Rated insulation voltage 400 V AC
- Product type
Joint box
- Factory colour
Red
IP55
- Dim
(L x W x H) 43 x 89 x 38 mm
- Features
Halogen-free
- Content
10 pc(s)
- Material
Polycarbonate (PC)
- Width
89 mm
- Height
38 mm
- Length
43 mm
Documents & Downloads
Datasheet
Datasheet 2269703 Spelsberg 34570801 Joint box (L x W x H) 43 x 89 x 38 mm Red IP55 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2269703 Spelsberg 34570801 Joint box (L x W x H) 43 x 89 x 38 mm Red IP55 10 pc(s)
Description
Junction box according to DIN EN 60670 (VDE 0606), 10 entries, 1 floor entry, with self-sealing, soft introduction membranes, tool for opening the cable entry not necessary, sealing range 2 - 10 mm (bottom and front side), 2 - 14 mm (side), with external mounting points
This text is machine translated.
This text is machine translated.
Scope of delivery
- without terminals
Hints
Safety-relevant component - installation only by skilled workers
