Spelsberg 40200101 Junction box (L x W x H) 92 x 92 x 60 mm Black IP66, IP67, IP69 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
5% = € 0.53
€ 9.55
5
7% = € 0.74
€ 9.34
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
14-day return policy included
Technical specifications
- Product type
Junction box
- Factory colour
Black
IP66
IP67
IP69
- Dim
(L x W x H) 92 x 92 x 60 mm
- Content
1 pc(s)
- Width
92 mm
- Height
60 mm
- Length
92 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3062285 Spelsberg 40200101 Junction box (L x W x H) 92 x 92 x 60 mm Black IP66, IP67, IP69 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3062285 Spelsberg 40200101 Junction box (L x W x H) 92 x 92 x 60 mm Black IP66, IP67, IP69 1 pc(s)
Description

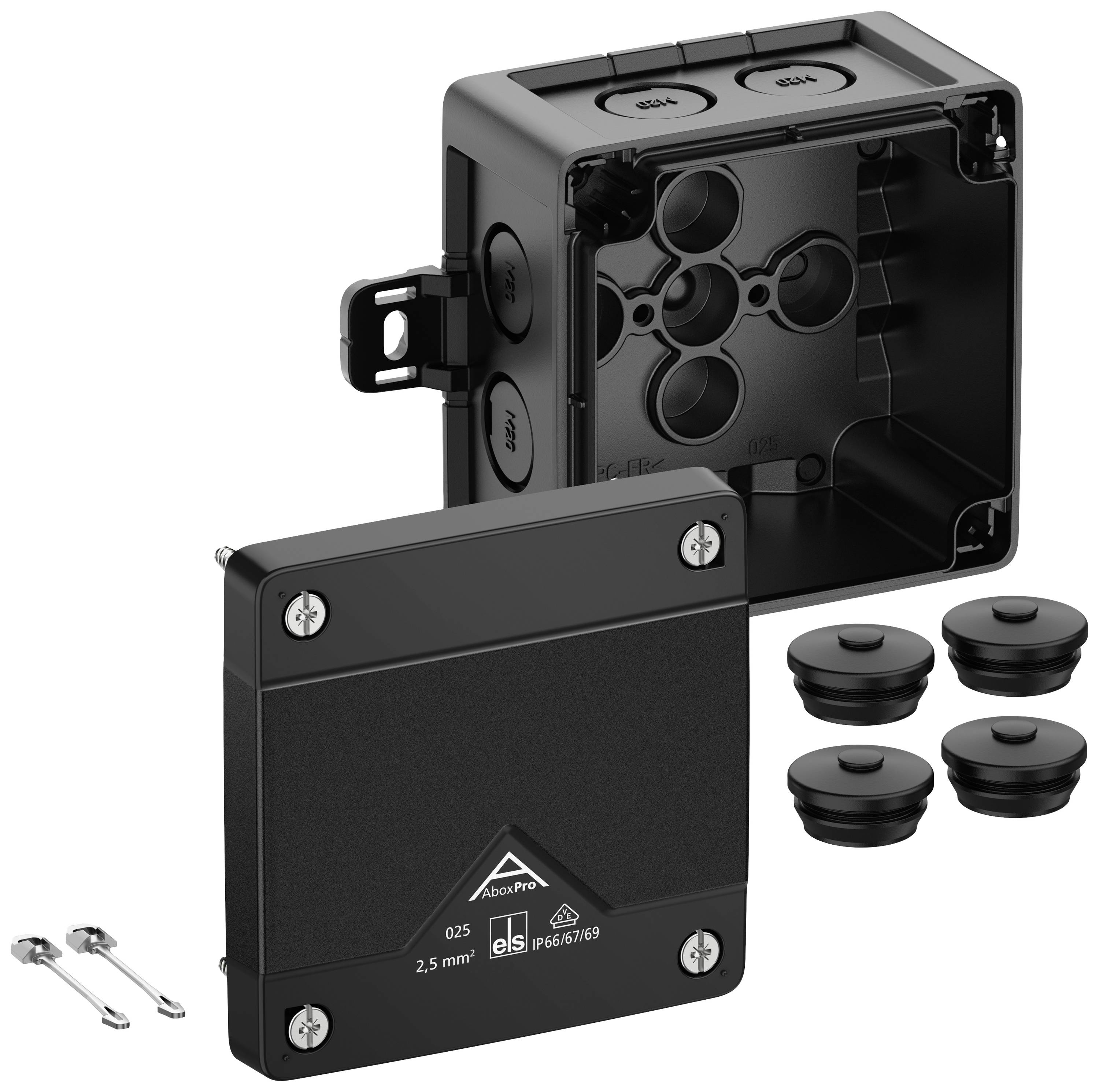

Junction box with IP66/IP67/IP69 protection rating, 2.5 mm² nominal cross-section, certified by VDE (DIN EN 60670-1/22 (VDE 0606-1/--22), DLG (ammonia resistance), DNV (class: Ships and offshore installations), discharge membranes, M16/M20, (1 back, 7 side), external mounting points, for industrial installations and unprotected outdoor areas, black, Ui = 1000 V AC, without terminals.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Accessories attached:
- 4 double membrane brackets IP66 M20 sealing range 7 - 13 mm
- Cover retainer
