Spelsberg 40246001 Junction box (L x W x H) 92 x 92 x 60 mm Grey IP66, IP68 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 34.45 / piece)
€ 34.45
plus VAT.
14-day return policy included
Technical specifications
- Product type
Junction box
- Factory colour
Grey
IP66
IP68
- Dim
(L x W x H) 92 x 92 x 60 mm
- Content
1 pc(s)
- Width
92 mm
- Height
60 mm
- Length
92 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3062329 Spelsberg 40246001 Junction box (L x W x H) 92 x 92 x 60 mm Grey IP66, IP68 1 pc(s)
Description
Junction box with protection IP68, nominal cross section 2.5 mm², UI=450 V AC, certified by VDE (DIN EN 60670-1/22 (VDE 0606-1/--22) & DIN VDE V 0606-22-100), discharge membranes, M16/M20, (1 at rear, 7 at side), interior mounting points, with screw-less terminals for sealing, for mounting in flood areas and in the ground without traffic loads, for installations in industrial areas and unprotected outdoor areas, gray, In=24 A, with 3 ground-fixed, screw-less 3-conductor terminals WAGO 221-413 - 2.5 mm², Clamping cross-sections per pole: 3 x 0.2 to 2.5 mm² rigid Cu and 3 x 0.14 to 2.5 mm² flexible Cu.
This text is machine translated.
This text is machine translated.

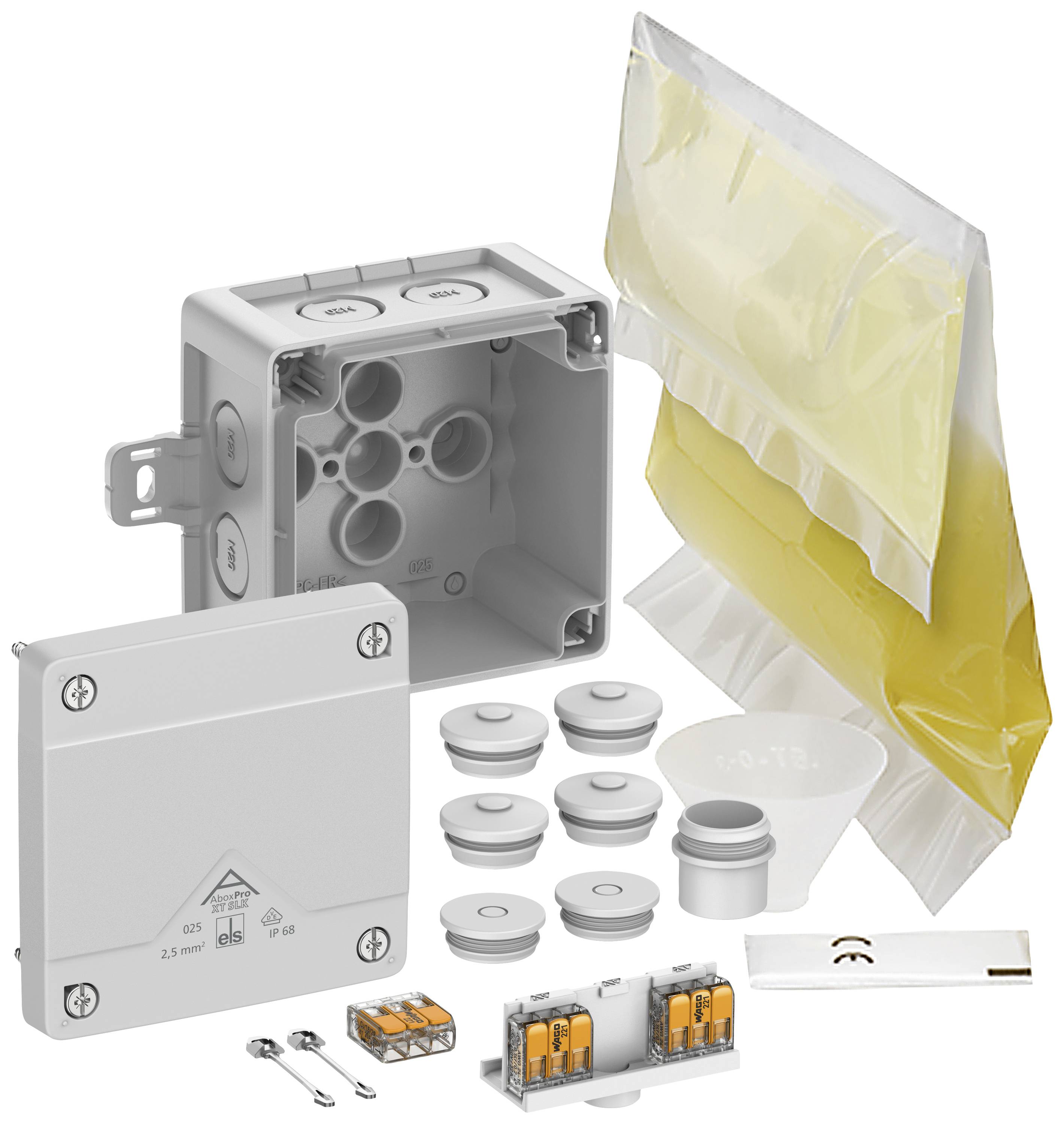

Scope of delivery
- Accessories attached:
- 4 double membrane brackets IP66 M20 sealing range 7 - 13 mm
- 2 sealing plugs M20
- 1 M20 mounting socket
- Cover retainer
- 1 GHB Pro 1 cast resin bags with funnel and disposable gloves
