Spelsberg 40247001 Junction box (L x W x H) 92 x 92 x 60 mm Grey IP66, IP67, IP69 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.92
3
5% = € 0.55
€ 10.37
5
7% = € 0.76
€ 10.16
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.92 / piece)
€ 10.92
plus VAT.
14-day return policy included
Technical specifications
- Product type
Junction box
- Factory colour
Grey
IP66
IP67
IP69
- Dim
(L x W x H) 92 x 92 x 60 mm
- Content
1 pc(s)
- Width
92 mm
- Height
60 mm
- Length
92 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3062320 Spelsberg 40247001 Junction box (L x W x H) 92 x 92 x 60 mm Grey IP66, IP67, IP69 1 pc(s)
Description
Junction box with IP66/IP67/IP69 protection, nominal cross-section 2.5 mm², UI=450 V AC, certified by VDE (DIN EN 60670-1/22 (VDE 0606-1/--22)), DLG (ammonia resistance), DNV (class: Ships & offshore installations), discharge membranes, M16/M20, (1 back, 7 side), Inside mounting points, with screwless terminals for industrial installations and unprotected outdoor areas, gray, In=24 A, with 3 ground-fixed, screwless 3-conductor terminals WAGO 221-413 - 2.5 mm², clamping cross-sections per pole: 3 x 0.2 to 2.5 mm² rigid Cu and 3 x 0.14 to 2.5 mm² flexible Cu.
This text is machine translated.
This text is machine translated.

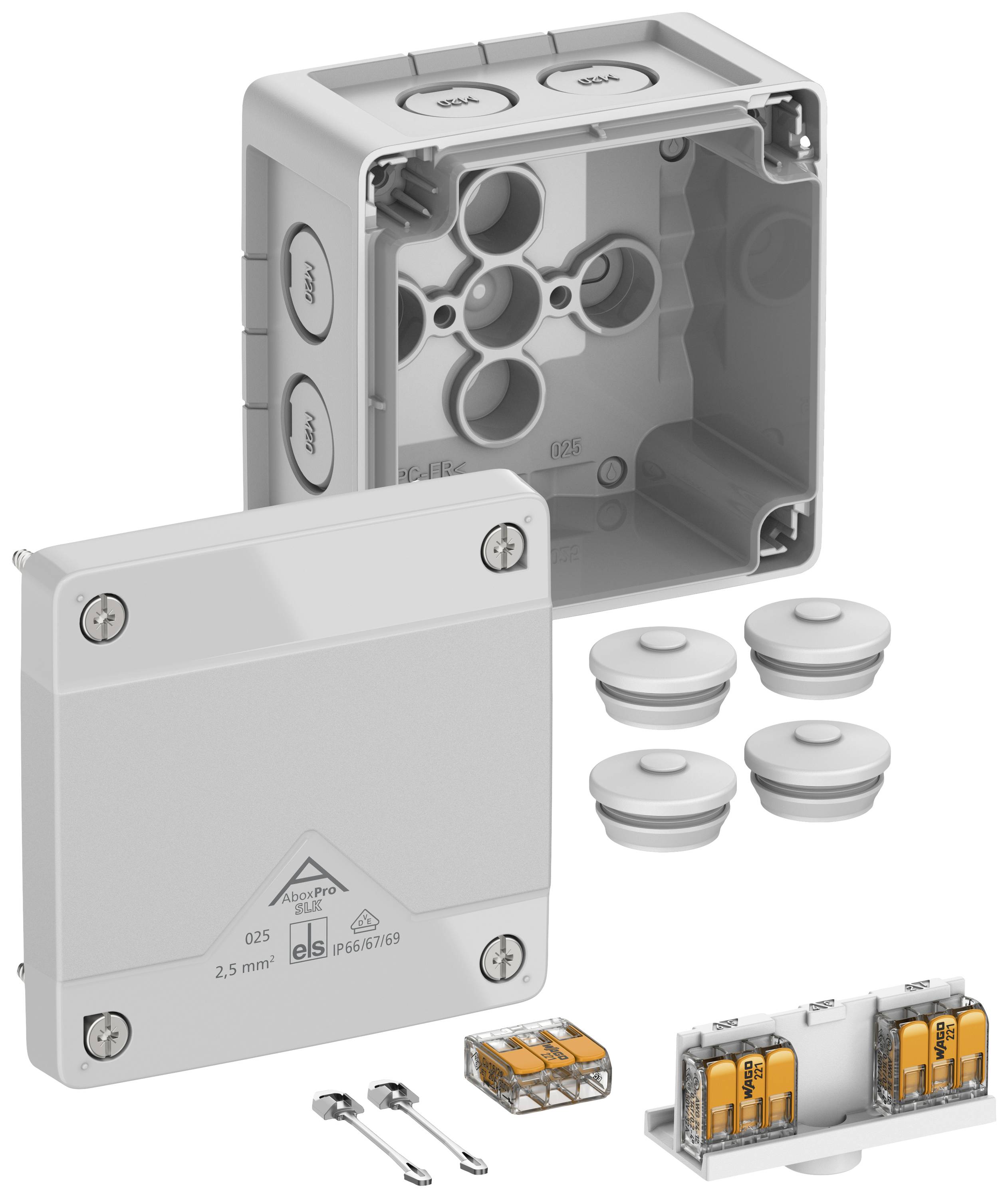

Scope of delivery
- Accessories attached:
- 4 double membrane brackets IP66 M20 sealing range 7 - 13 mm
- Cover retainer
