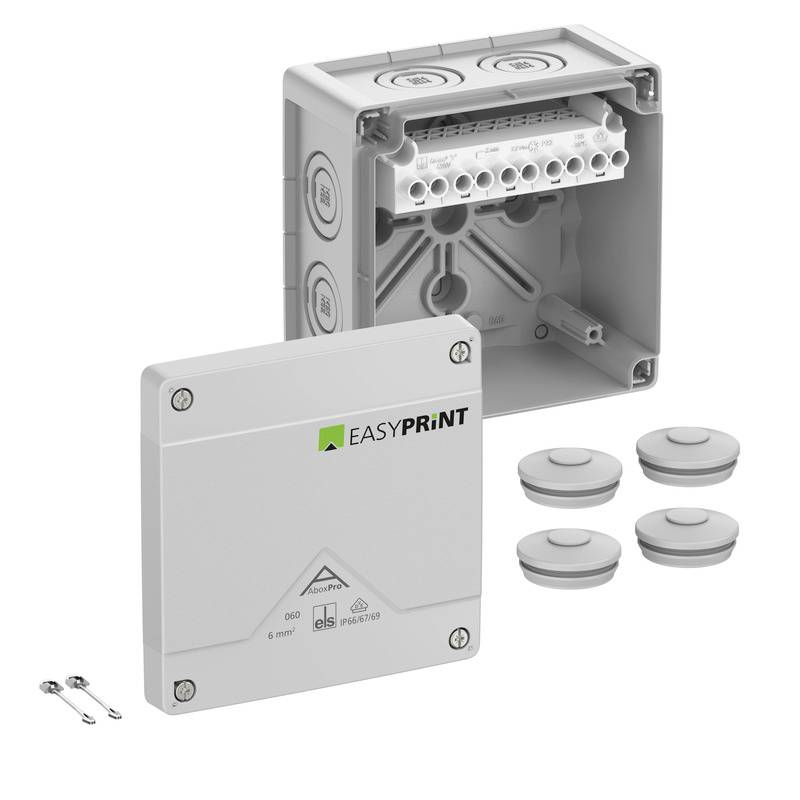

Spelsberg 406420EP Junction box (L x W x H) 127 x 127 x 75 mm Grey IP66, IP67, IP69 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 0.98
€ 24.22
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 25.20 / piece)
€ 25.20
plus VAT.
Highlights & Details
Junction box, IP66/IP67/IP69 degree of protection, 6² max., IK09 impact strength, protection class II, UI 690V AC, UI 690V DC, DNV, VDE, halogen-free

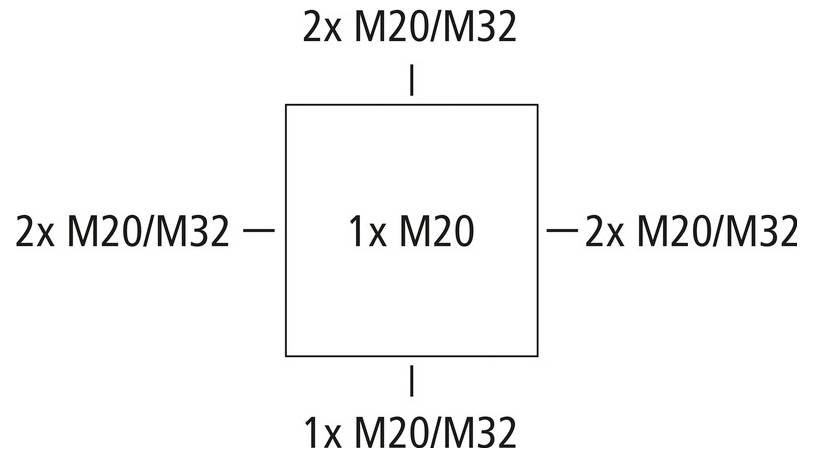

- Tap box, with individual printing, configurable over spelsberg.de/easyprint, with degree of protection IP66/IP67/IP69, nominal cross-section 6 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DNV (class: ships & offshore installations), deflection membranes, M20/M32, (1 on the back, 7 on the sides), interior fixing points, for industrial installations and unprotected outdoor areas, gray, Ui = 690 V AC, In = 41 A, with elevated screw terminal, 5-pole - 6 mm², clamping cross-sections per pole: 4 x 1.5 mm², 4 x 2.5 mm², 6 x 4 mm², 4 x 4 mm² rigid copper/flexible with wire-end sleeve dimensions: 4 x 127 x 75 mmattached accessories: 127 double diaphragm supports IP66 M32 sealing range 13 - 21 mm, cover lock
- This text is machine translated.
Technical specifications
- Product type
Junction box
- Factory colour
Grey
IP66
IP67
IP69
- Dim
(L x W x H) 127 x 127 x 75 mm
- Content
1 pc(s)
- Width
127 mm
- Height
75 mm
- Length
127 mm
Documents & Downloads
Datasheet
Datasheet 3628587 Spelsberg 406420EP Junction box (L x W x H) 127 x 127 x 75 mm Grey IP66, IP67, IP69 1 pc(s)
Datasheet 3628587 Spelsberg 406420EP Junction box (L x W x H) 127 x 127 x 75 mm Grey IP66, IP67, IP69 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3628587 Spelsberg 406420EP Junction box (L x W x H) 127 x 127 x 75 mm Grey IP66, IP67, IP69 1 pc(s)
