Spelsberg 410421EP Junction box (L x W x H) 152 x 152 x 85 mm Grey IP66, IP67, IP69 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Junction box, IP66/IP67/IP69 protection, 10² max., IK09 impact strength, protection class II, UI 690V AC, UI 690V DC, DLG, DNV, VDE, halogen-free

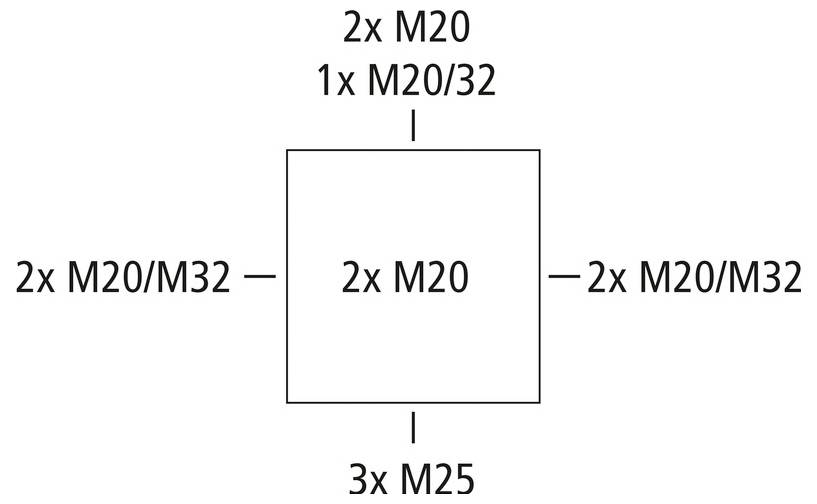

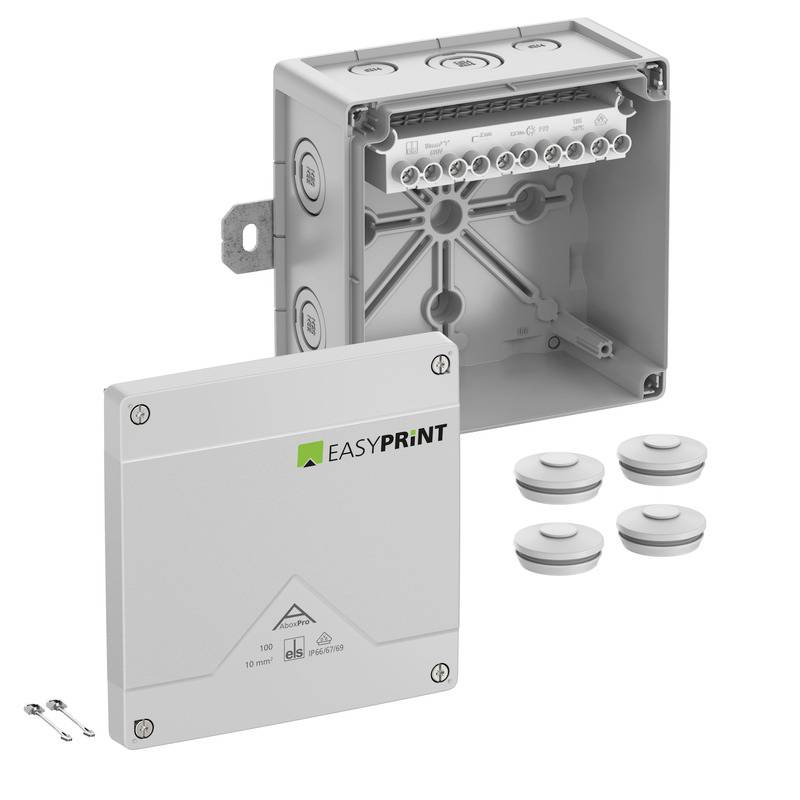

- Tap box, with individual printing, configurable over spelsberg.de/easyprint, with degree of protection IP66/IP67/IP69, nominal cross-section 10 mm², Certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), DNV (class: ships & offshore installations), impact membranes, M20/M25/M32, (2 back, 10 side), external mounting points, for industrial installations and unprotected outdoor areas, gray, Ui = 690 V AC, In = 57 A, with elevated screw terminal, 5-pole - 10², clamping cross-sections per pole: 4 x 2.5 mm², 4 x 4 mm², 4 x 6 mm², 4 x 10 mm² rigid copper/flexible with wire-end sleeve dimensions: 4 x 152 x 85 mmattached accessories: 152 double diaphragm supports IP66 M32 sealing range 13 - 21 mm, cover lock
- This text is machine translated.
Technical specifications
- Product type
Junction box
- Factory colour
Grey
IP66
IP67
IP69
- Dim
(L x W x H) 152 x 152 x 85 mm
- Content
1 pc(s)
- Width
152 mm
- Height
85 mm
- Length
152 mm
Documents & Downloads
Datasheet
Datasheet 3628537 Spelsberg 410421EP Junction box (L x W x H) 152 x 152 x 85 mm Grey IP66, IP67, IP69 1 pc(s)
Datasheet 3628537 Spelsberg 410421EP Junction box (L x W x H) 152 x 152 x 85 mm Grey IP66, IP67, IP69 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3628537 Spelsberg 410421EP Junction box (L x W x H) 152 x 152 x 85 mm Grey IP66, IP67, IP69 1 pc(s)
