Spelsberg 416000EP Junction box (L x W x H) 182 x 182 x 90 mm Black IP66, IP67, IP69 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Junction box, IP66/IP67/IP69 protection, 16² max., IK09 impact strength, protection class II, UI 1000V AC, UI 1000V DC, DLG, DNV, VDE, halogen-free

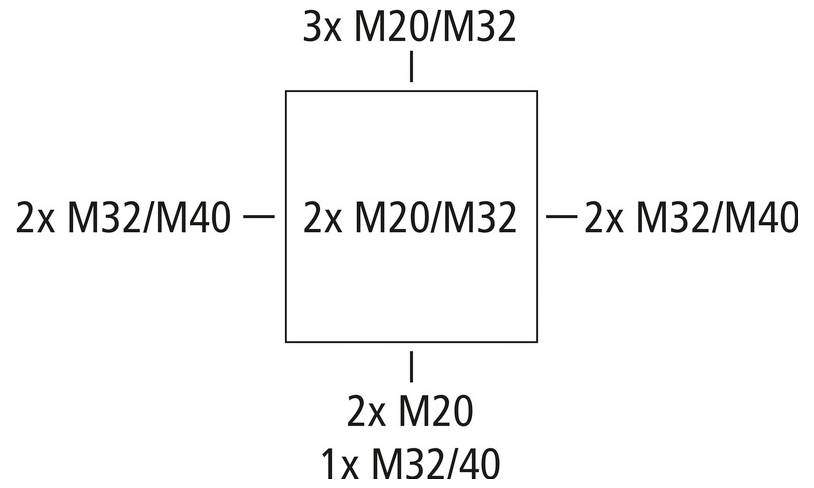

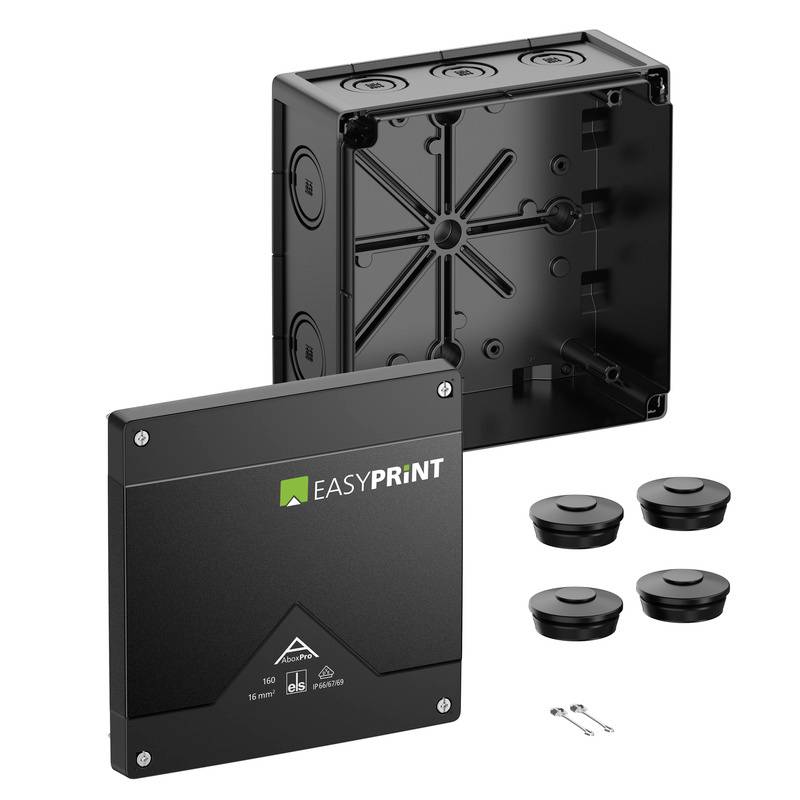

- Tap box, with individual printing, configurable over spelsberg.de/easyprint, with degree of protection IP66/IP67/IP69, nominal cross-section 16 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), DNV (class: ships & offshore installations), deflection membranes, M20/M32/M40, (2 back, 10 side), Interior mounting points, for installations in industrial environment and unprotected outdoor areas, black, Ui = 1000 V AC, without terminal dimensions: 182 x 182 x 90 mm Added accessories: 4 double diaphragm supports IP66 M40 sealing range 17 - 28 mm, lid lock
- This text is machine translated.
Technical specifications
- Product type
Junction box
- Factory colour
Black
IP66
IP67
IP69
- Dim
(L x W x H) 182 x 182 x 90 mm
- Content
1 pc(s)
- Width
182 mm
- Height
90 mm
- Length
182 mm
Documents & Downloads
Datasheet
Datasheet 3628538 Spelsberg 416000EP Junction box (L x W x H) 182 x 182 x 90 mm Black IP66, IP67, IP69 1 pc(s)
Datasheet 3628538 Spelsberg 416000EP Junction box (L x W x H) 182 x 182 x 90 mm Black IP66, IP67, IP69 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3628538 Spelsberg 416000EP Junction box (L x W x H) 182 x 182 x 90 mm Black IP66, IP67, IP69 1 pc(s)
