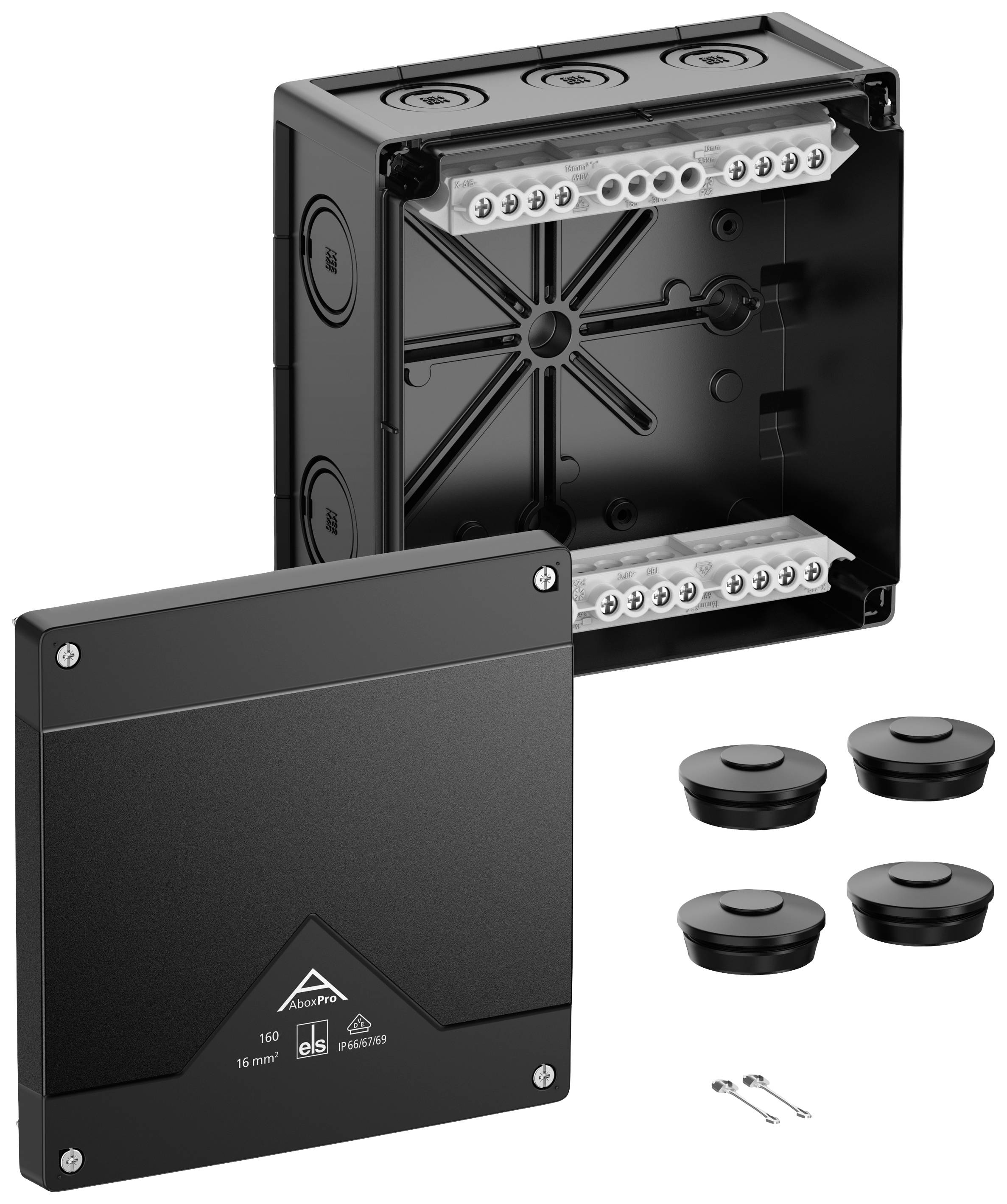

Spelsberg 41602001 Junction box (L x W x H) 182 x 182 x 90 mm Black IP66, IP67, IP69 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 39.49 / piece)
€ 39.49
plus VAT.
14-day return policy included
Technical specifications
- Product type
Junction box
- Factory colour
Black
IP66
IP67
IP69
- Dim
(L x W x H) 182 x 182 x 90 mm
- Content
1 pc(s)
- Width
182 mm
- Height
90 mm
- Length
182 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3062308 Spelsberg 41602001 Junction box (L x W x H) 182 x 182 x 90 mm Black IP66, IP67, IP69 1 pc(s)
Description
Junction box with IP66/IP67/IP69 protection rating, 16 mm² nominal diameter, certified by VDE (DIN EN 60670-1/22 (VDE 0606-1/--22), DLG (ammonia resistance), DNV (class: Ships and offshore installations), impact membranes, M20/M32/M40, (2 back, 10 side), Interior mounting points, for industrial installations and unprotected outdoor areas, black, Ui = 690 V AC, In = 76 A, with elevated screw terminal, 5-pole - 16 mm², clamping cross-sections per pole: 12 x 4 mm², 8 x 6 mm², 4 x 10 mm², 4 x 16 mm² rigid/flexible copper with wire-end sleeve.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Accessories attached:
- 4 double diaphragm supports IP66 M44 sealing range 17 - 28 mm
- Cover retainer
