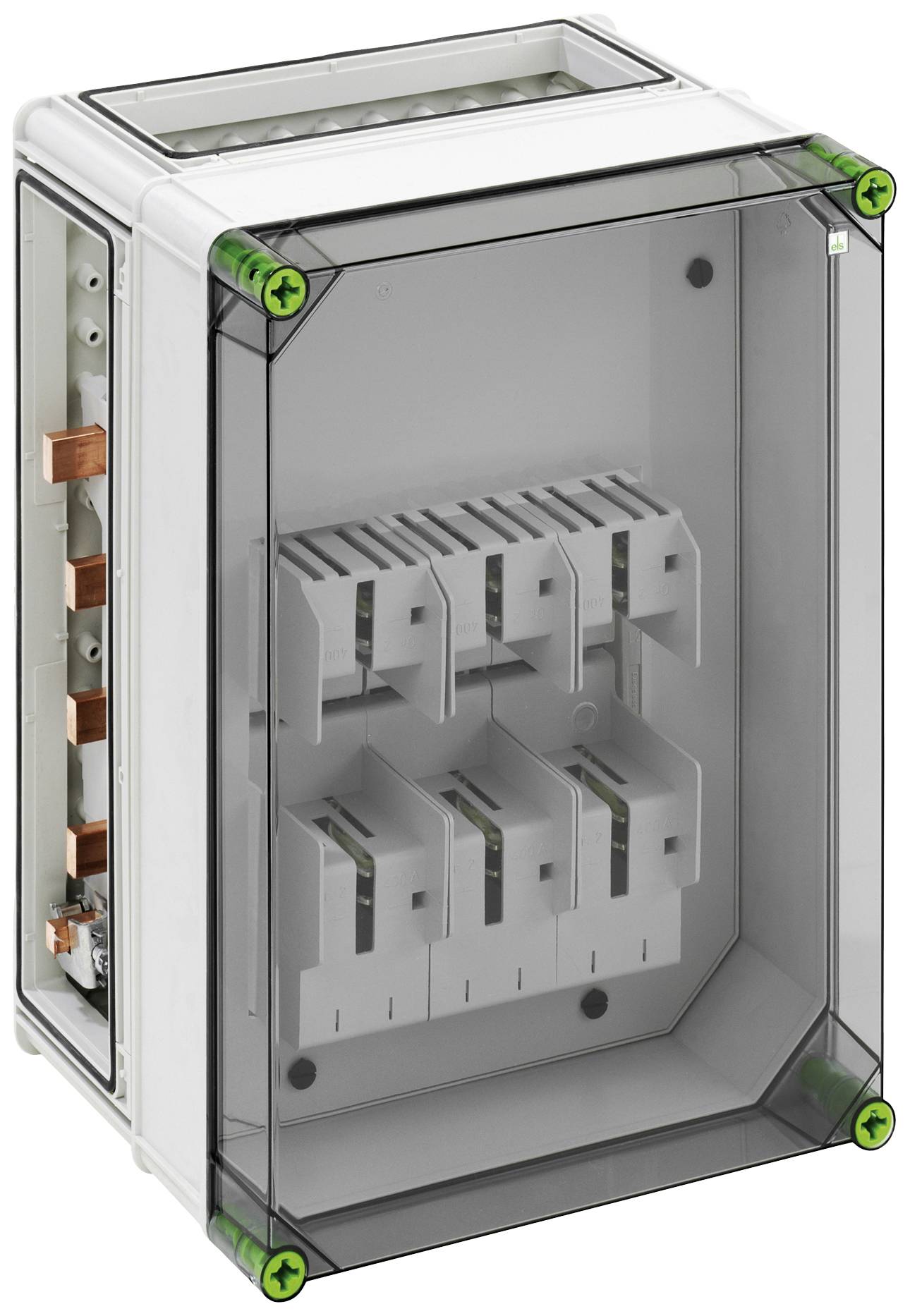

Spelsberg 4321586 GSS 3215-630 Plus Switchboard cabinet Busbar No. of rows = 4 Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
No. of rows
4
Mounting type
Busbar
Width
320 mm
Height
440 mm
Datasheet (PDF)
Number
Total (€ 626.05 / piece)
€ 626.05
plus VAT.
Technical specifications
- Design: NH - equestrian fuse housing
- Protection system: IP65
- Rated current 630 A
- Material: Plastic
- Fuse: NH fuse
- Cover type: Transparent
- Product type
Switchboard cabinet
- with PE and N terminals
Yes
- No. of rows
4
- Mounting type
Busbar
- Width
320 mm
- Height
440 mm
- Dim
(W x H x D) 320 x 440 x 254 mm
- Depth
254 mm
- Content
1 pc(s)
320
440 mm
254 mm
630 A
Plastic
IP65
3R
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2379209 Spelsberg 4321586 GSS 3215-630 Plus Switchboard cabinet Busbar No. of rows = 4 Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379209 Spelsberg 4321586 GSS 3215-630 Plus Switchboard cabinet Busbar No. of rows = 4 Content 1 pc(s)
Description
NH-tab fuse housing with additional connection space, industrial quality, 1 x NH 2-tab fuse base, rated current 400 A, screw connection M10, top outlet, on 5-pin busbar, N terminal 16-120qmm, PE terminal 16-120qmm, 4 x housing connectors (GGV), on 630 A busbar system, with transparent cover
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
