Spelsberg 4604586 GST 4045-630 Switchboard cabinet Busbar Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Mounting type
Busbar
Width
640 mm
Height
320 mm
Depth
179 mm
Datasheet (PDF)
Number
Total (€ 856.30 / piece)
€ 856.30
plus VAT.
Technical specifications
- Design: With fuse switch disconnector
- Protection system: IP65
- Number of pins: 5
- Rated operating current IE 630 A.
- Max. Rated operating voltage UE: 690 V/AC
- Size of fuse links: NH00
- Product type
Switchboard cabinet
- with PE and N terminals
Yes
- Mounting type
Busbar
- Width
640 mm
- Height
320 mm
- Dim
(W x H x D) 640 x 320 x 179 mm
- Depth
179 mm
- Content
1 pc(s)
690 V
5
IP65
690 V
3R
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2379075 Spelsberg 4604586 GST 4045-630 Switchboard cabinet Busbar Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379075 Spelsberg 4604586 GST 4045-630 Switchboard cabinet Busbar Content 1 pc(s)

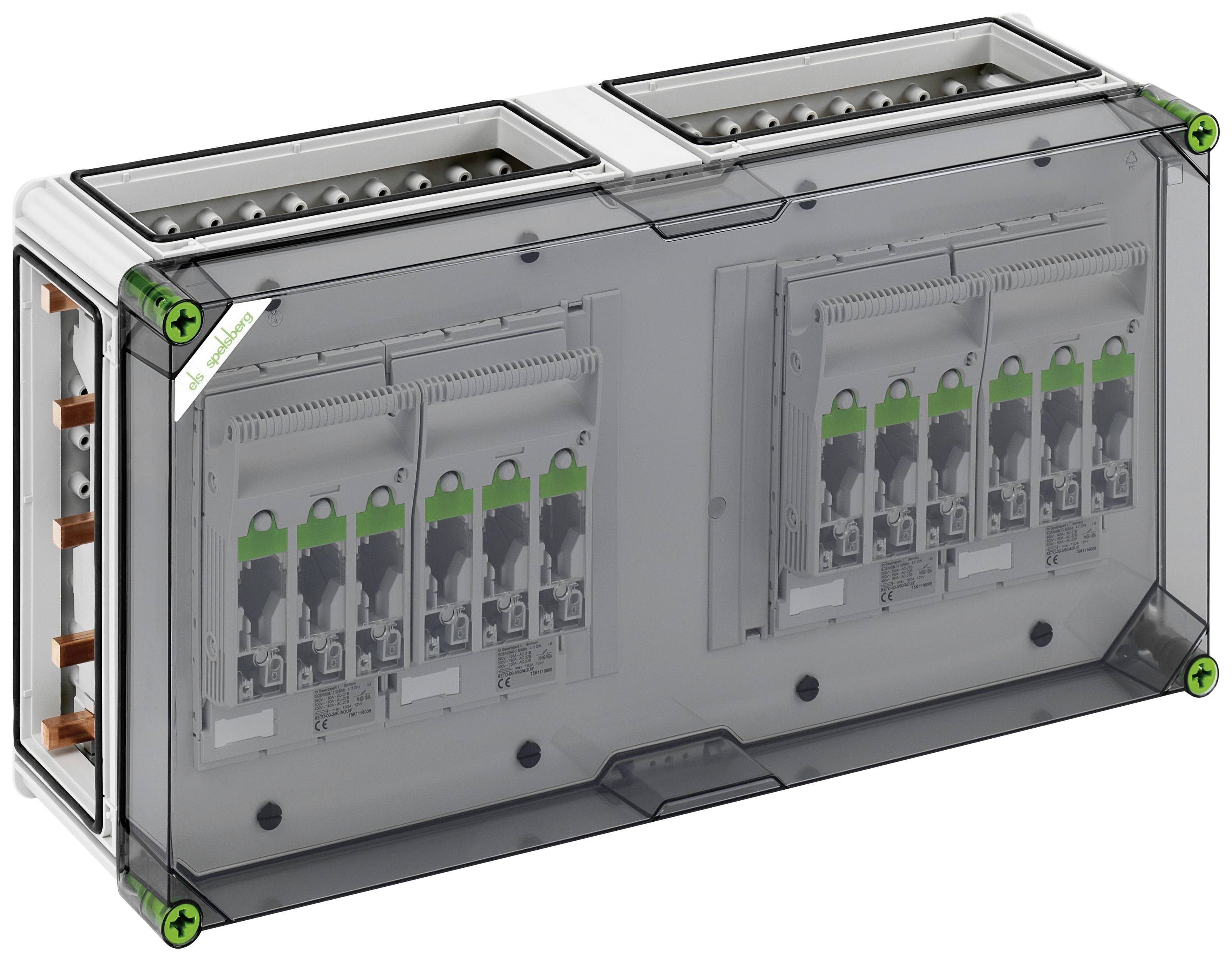

Description
NH-tab fuse switch disconnector housing, industrial quality, 4 x NH 00-tab fuse switch disconnectors, terminal connection 1.5-50qmm, universal outlet, on 5-pin busbar, N terminals 4-35qmm, PE terminals 4-35qmm, 4 x housing connectors (GGV), on 630 A busbar system, with transparent cover
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
