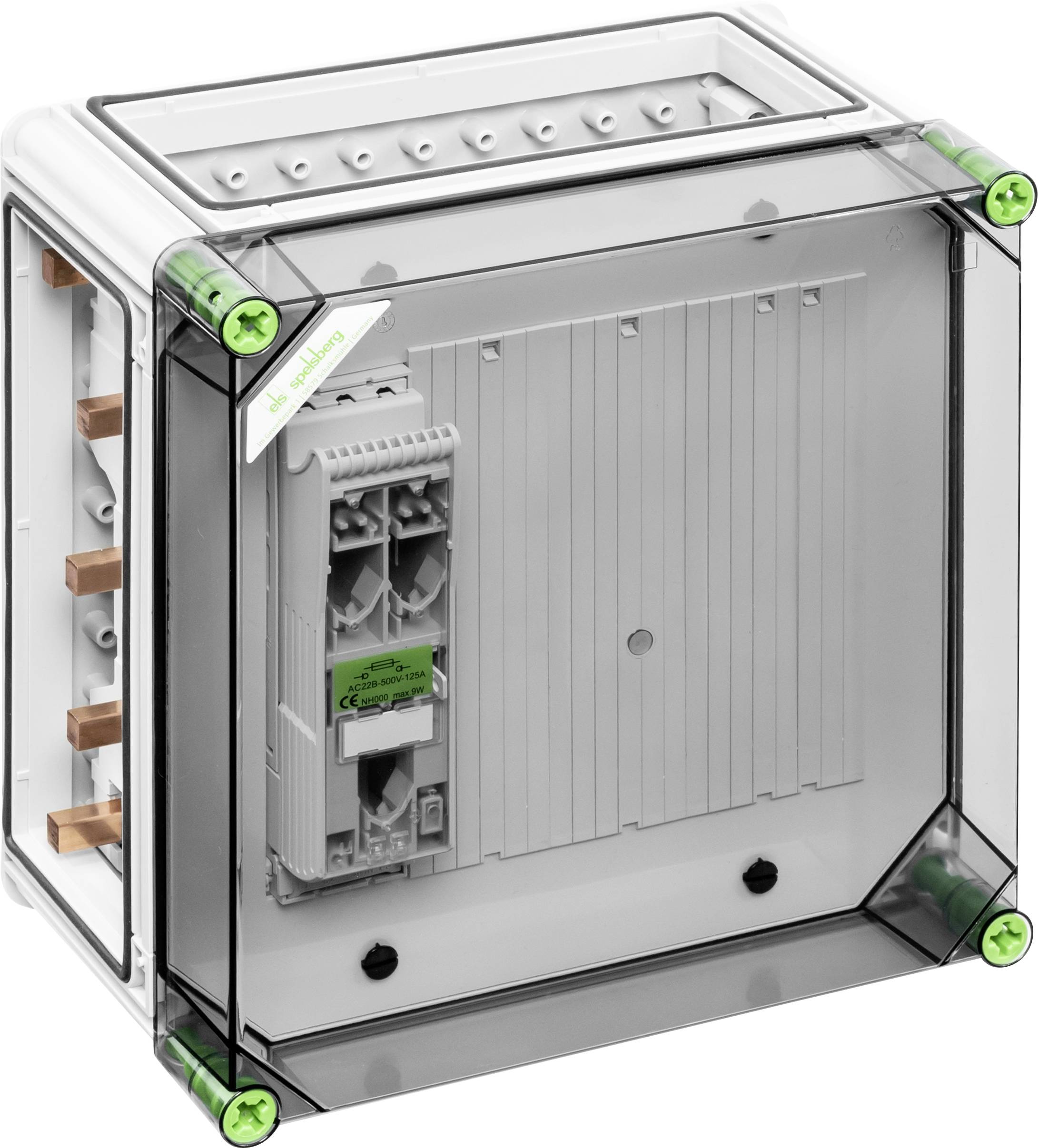

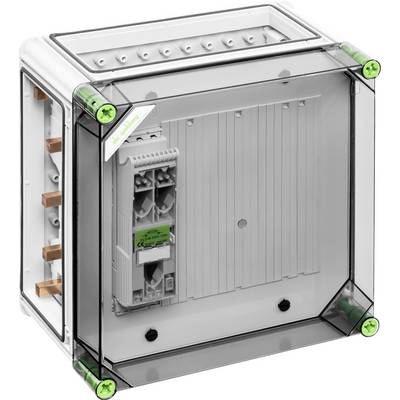

Spelsberg 4621586 GST 2315-630 Busbar compartment Busbar Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Busbar compartment
Mounting type
Busbar
Width
320 mm
Height
320 mm
Depth
179 mm
Datasheet (PDF)
Number
Total (€ 399.16 / piece)
€ 399.16
plus VAT.
Highlights & Details
NH-isolator - housing GST 2315-630
- UV-resistant
- Halogen-free
Technical specifications
- Rated operating current 630 A.
- Protection class: II
- Protection system: IP65
- Product type
Busbar compartment
- with PE and N terminals
Yes
- Mounting type
Busbar
- Width
320 mm
- Height
320 mm
- Dim
(W x H x D) 320 x 320 x 179 mm
- Depth
179 mm
- Mounting
1 x NH 000-Tab fuse switch disconnectors,
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3374292 Spelsberg 4621586 GST 2315-630 Busbar compartment Busbar Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3374292 Spelsberg 4621586 GST 2315-630 Busbar compartment Busbar Content 1 pc(s)
Description
NH-tab fuse switch disconnectors, 1 x NH 000-tab fuse switch disconnectors, elevator terminal 1.5 - 50 mm², bottom outlet, on busbar 5-pin, with 5 busbar terminals for direct connection of a cable to the busbar system, additional N and PE terminal for each separator switch, 3 x enclosure connectors (GGV), busbar system 179 A, with transparent cover Dimensions: 320 x 320 x 630 mm
