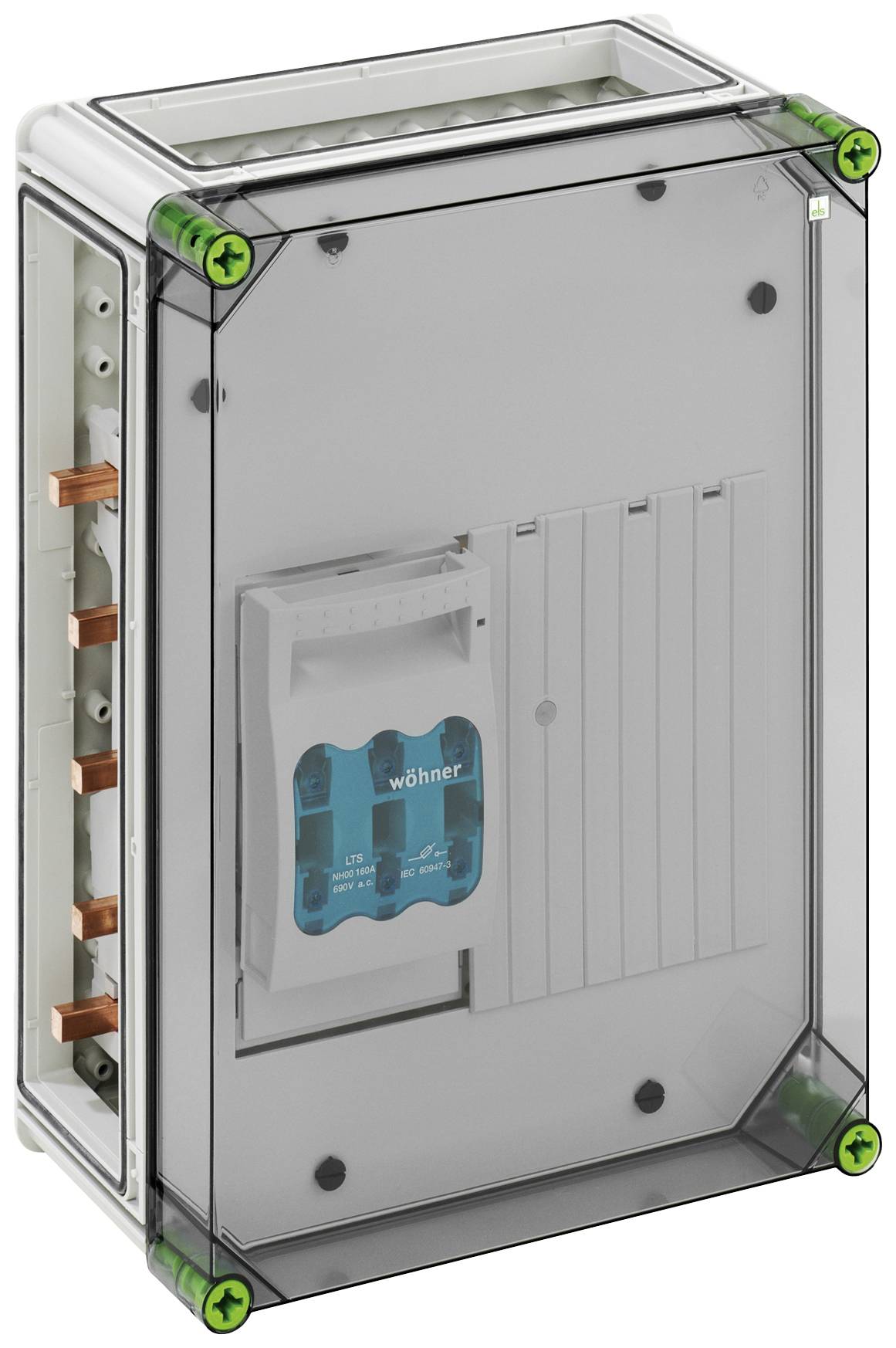

Spelsberg 4731584 GST 3015-400 Plus Switchboard cabinet Busbar Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Mounting type
Busbar
Width
320 mm
Height
440 mm
Depth
179 mm
Datasheet (PDF)
Number
Total (€ 432.77 / piece)
€ 432.77
plus VAT.
14-day return policy included
Technical specifications
- Design: With fuse switch disconnector
- Protection system: IP65
- Number of pins: 5
- Rated operating current IE 125 A.
- Max. Rated operating voltage UE: 690 V/AC
- Size of fuse links: NH00
- Product type
Switchboard cabinet
- with PE and N terminals
Yes
- Mounting type
Busbar
- Width
320 mm
- Height
440 mm
- Dim
(W x H x D) 320 x 440 x 179 mm
- Depth
179 mm
- Content
1 pc(s)
690 V
5
IP65
690 V
3R
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2379091 Spelsberg 4731584 GST 3015-400 Plus Switchboard cabinet Busbar Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379091 Spelsberg 4731584 GST 3015-400 Plus Switchboard cabinet Busbar Content 1 pc(s)
Description
NH-tab fuse switch disconnector housing with additional connection space, industrial quality, 1 x NH 00-tab fuse switch disconnector, rated current 125 A, terminal connection 1.5-70qmm, top outlet, on 5-pin busbar, With 5 bus bar terminals 16-70qmm, N-terminal 4-35qmm, PE terminal 4-35qmm, 3 x housing connectors (GGV), on bus bar system 400 A, with transparent cover
This text is machine translated.
This text is machine translated.
Hints
Safety-relevant component - installation only by skilled workers
