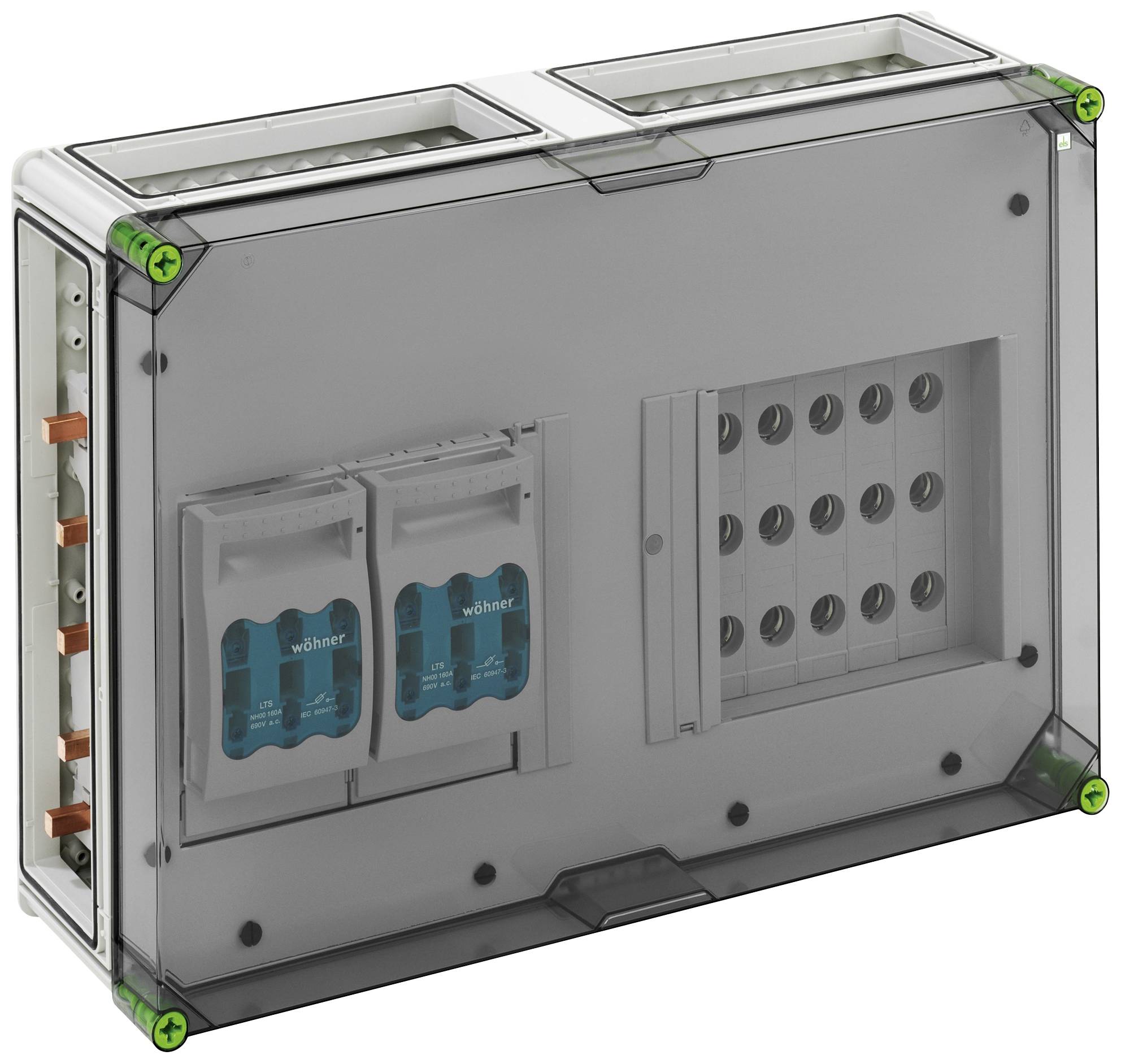

Spelsberg 4750284 GST 502-KN-400 Plus Switchboard cabinet Busbar Content 1 pc(s)
EAN:
Part number:
Item no:
Product type
Switchboard cabinet
Mounting type
Busbar
Width
640 mm
Height
440 mm
Depth
179 mm
Datasheet (PDF)
Number
Total (€ 852.94 / piece)
€ 852.94
plus VAT.
Technical specifications
- Design: With fuse switch disconnectorsProtection system: IP65Number of poles: 3Rated operating current Ie: 125 A.Max. Rated operating voltage Ue 400 V/ACFuse size: NH00
- Product type
Switchboard cabinet
- with PE and N terminals
Yes
- Mounting type
Busbar
- Width
640 mm
- Height
440 mm
- Dim
(W x H x D) 640 x 440 x 179 mm
- Depth
179 mm
- Content
1 pc(s)
400 V
3
IP65
400 V
3R
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2379097 Spelsberg 4750284 GST 502-KN-400 Plus Switchboard cabinet Busbar Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2379097 Spelsberg 4750284 GST 502-KN-400 Plus Switchboard cabinet Busbar Content 1 pc(s)
Description
Combi-rails housing with additional connection space, industrial quality, 2 x NH 00-Tab-fuse switch disconnectors, rated current 125 A, screw terminal 1.5-70qmm, top outlet, 5 x 3-pin D02-tab fuse base, E 18-thread, rated current 63 A, screw connection 1.5-25qmm, on bus bar 5-pole, With 5 busbar terminals 16-70qmm, N terminals 4-35qmm, PE terminals 4-35qmm, N terminals 1.5-16qmm, PE terminals 1.5-16qmm, 4 x housing connectors (GGV), on 400 A busbar system, with transparent cover
This text is machine translated.
This text is machine translated.
Hints
Safety relevant component - Only by skilled workers
