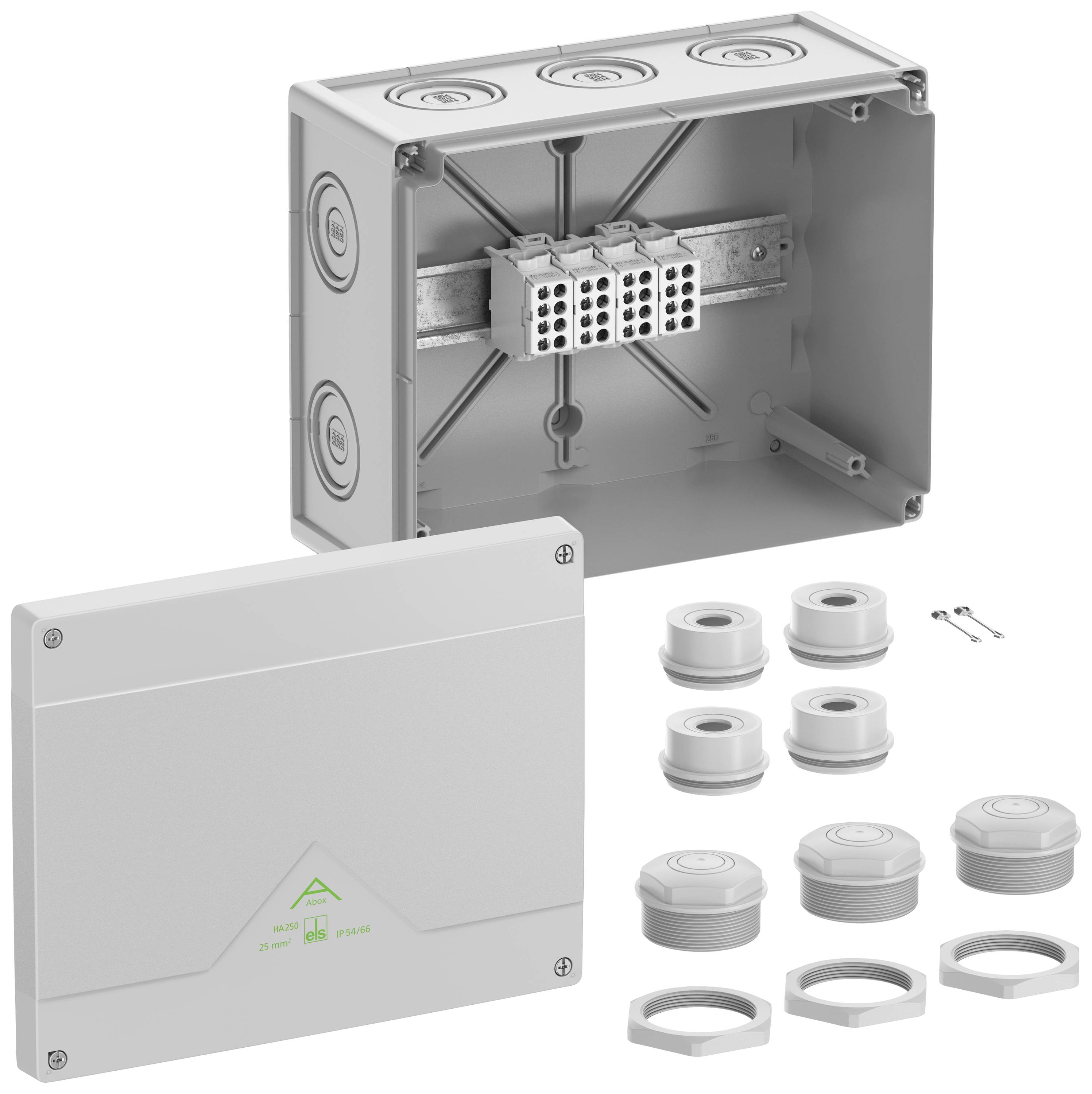

Spelsberg 48142501 Junction box (L x W x H) 202 x 252 x 120 mm Grey IP54, IP66 1 pc(s)

Junction box with IP54/IP66 degree of protection, 25 mm² nominal cross-section, certified by DLG (ammonia resistance), impact membranes, M20/M25/M40/M50, (4 back, 10 side), Internal mounting points, for standard indoor and protected outdoor installations, gray, Ui=690 V AC, with standard rail mounted main cable branch terminals, 4-pin, pluggable cross-sections per pole Main line: 1.5 - 25 mm² rigid (Cu/Al) and multi-strand (Cu), 1.5 -16 mm² fine-wired with wire end sleeve (Cu). Clamping able cross section per pin Splitter cable 1.5 - 16 mm² rigid (Cu/Al) and multi-strand (Cu), 1.5 -10 mm² fine-stranded with wire-end sleeve (Cu). Rated current according to EN 60947-7: 130 A (Cu) and 100 A (Al).

This text is machine translated.
